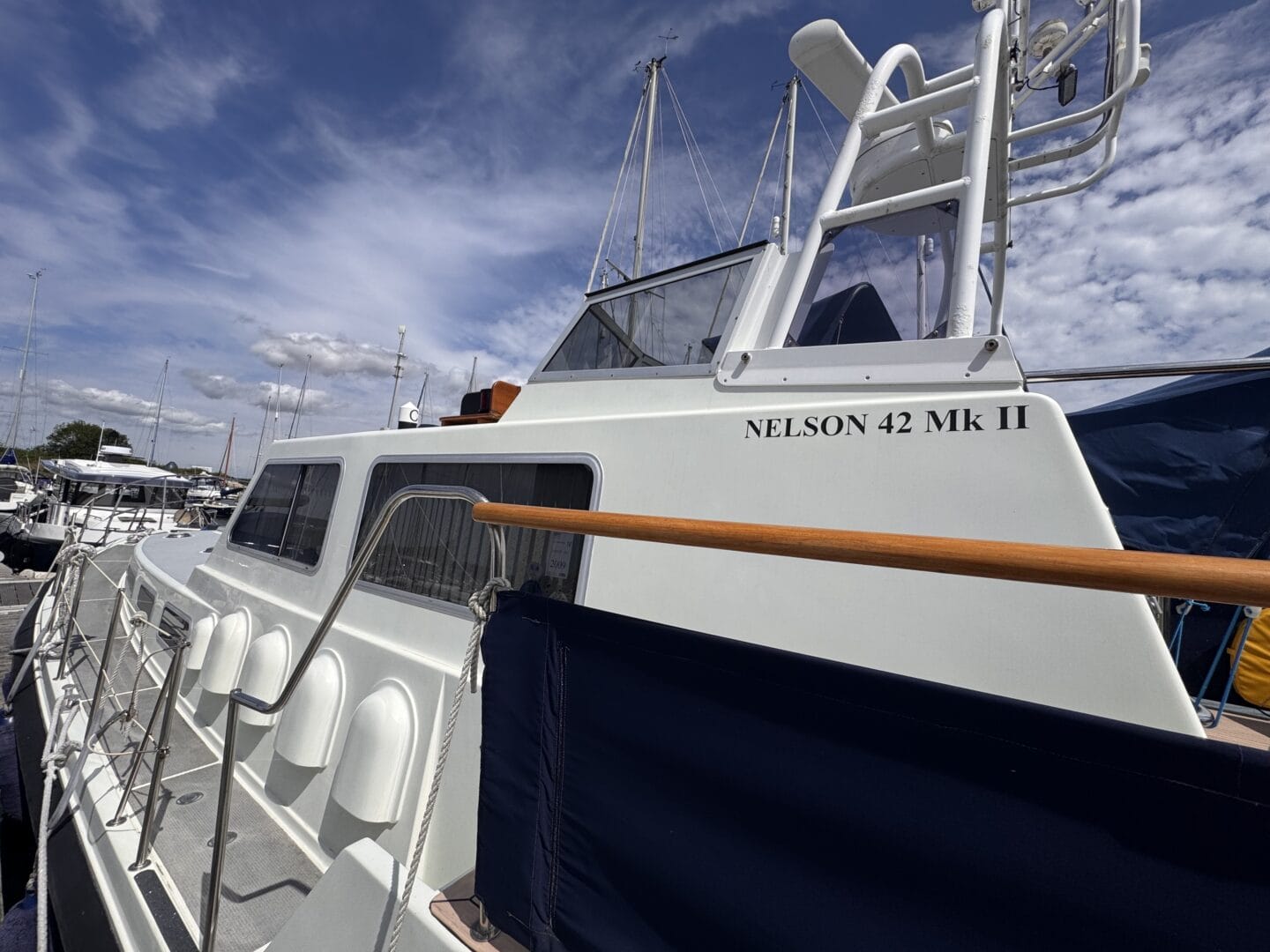

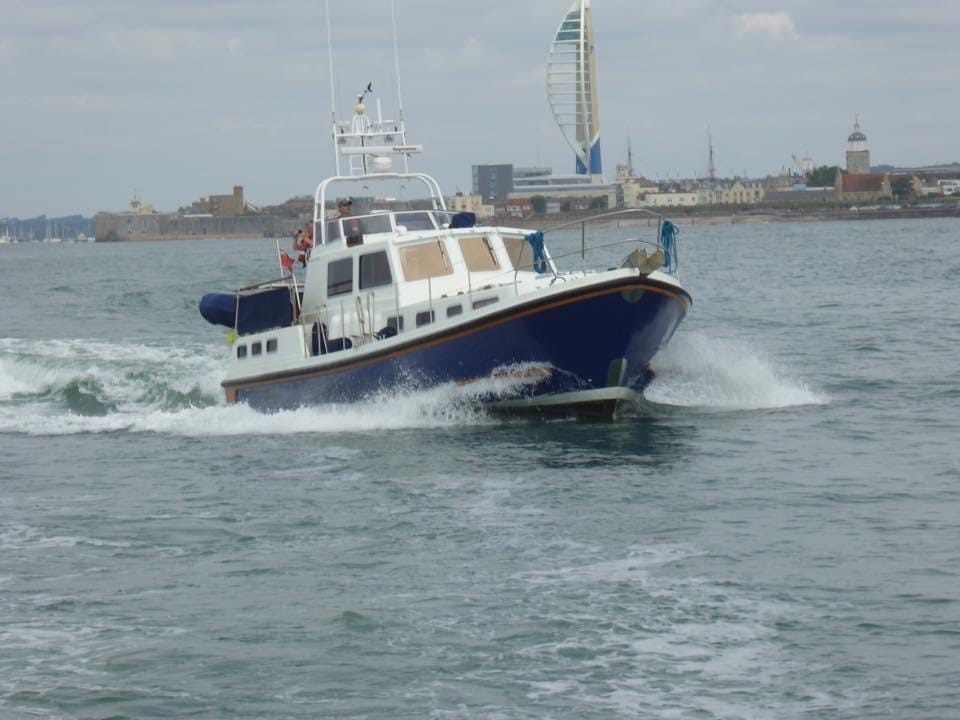

Nelson 42 MKII

The specification includes:

Dimensions and Capacities:

• LOA – 13.67M
• Beam – 3.96M
• Draft – 1.14M
• Fuel capacity – 1825 litres
• Water capacity – 900 litres

Construction:

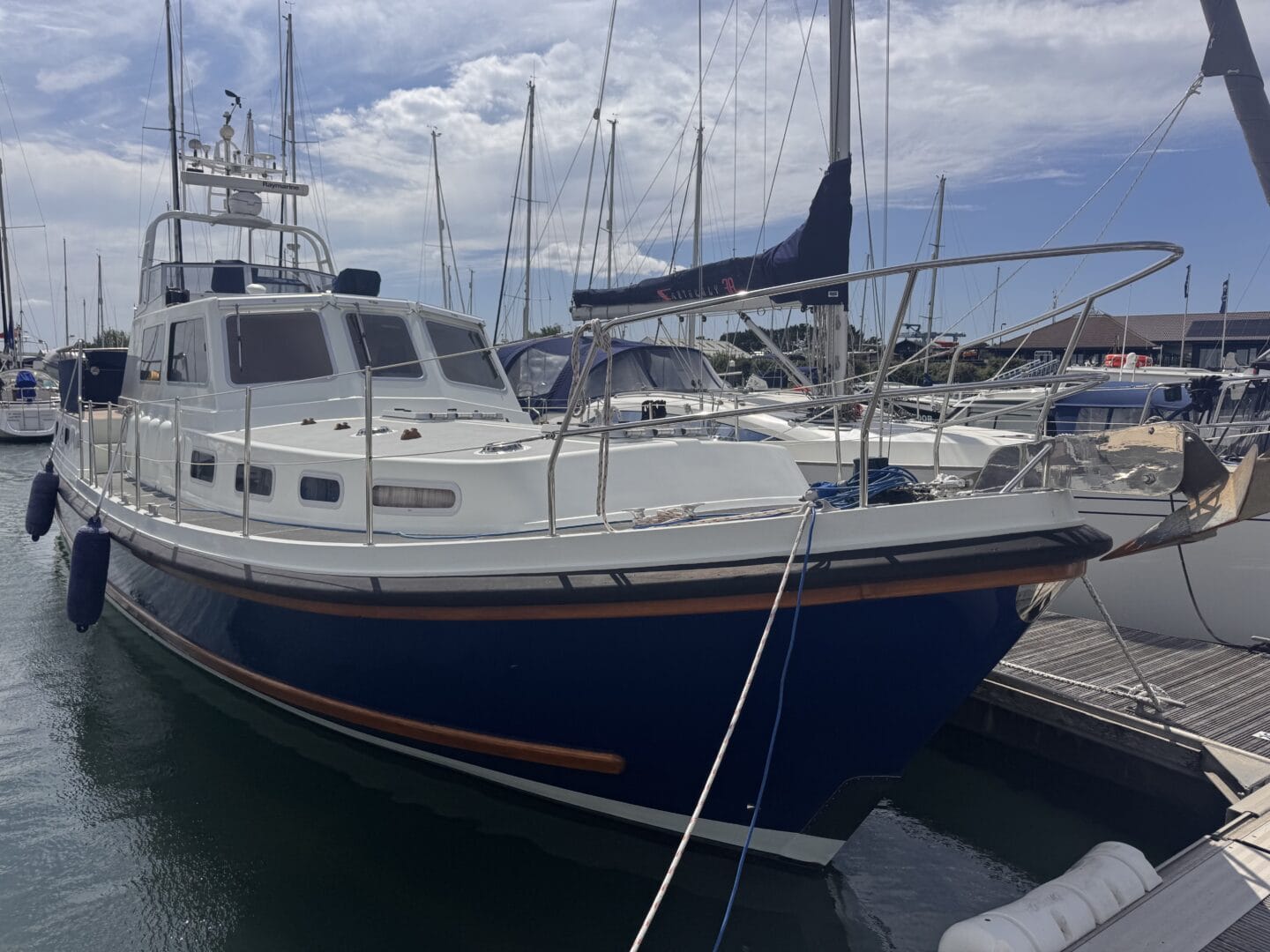

• Dark blue GRP hull and white GRP superstructure. Teak rubbing strake. Rubber “D” fendering.

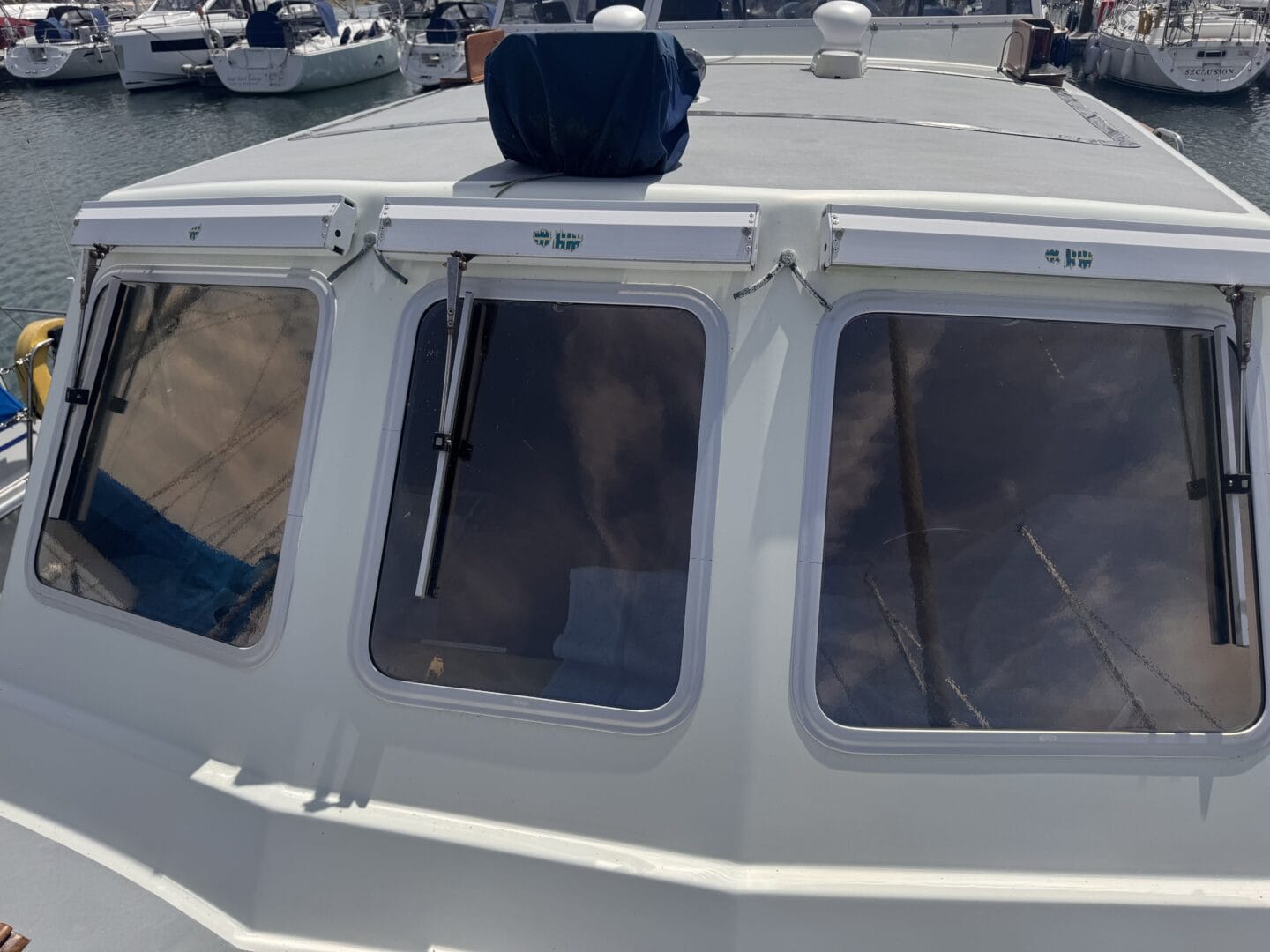

• Alloy and aluminium cleats. Stainless steel stanchions. Gebo aluminium framed windows. 3 x deck hatches (forecabin, galley and aft cabin). Radar arch.

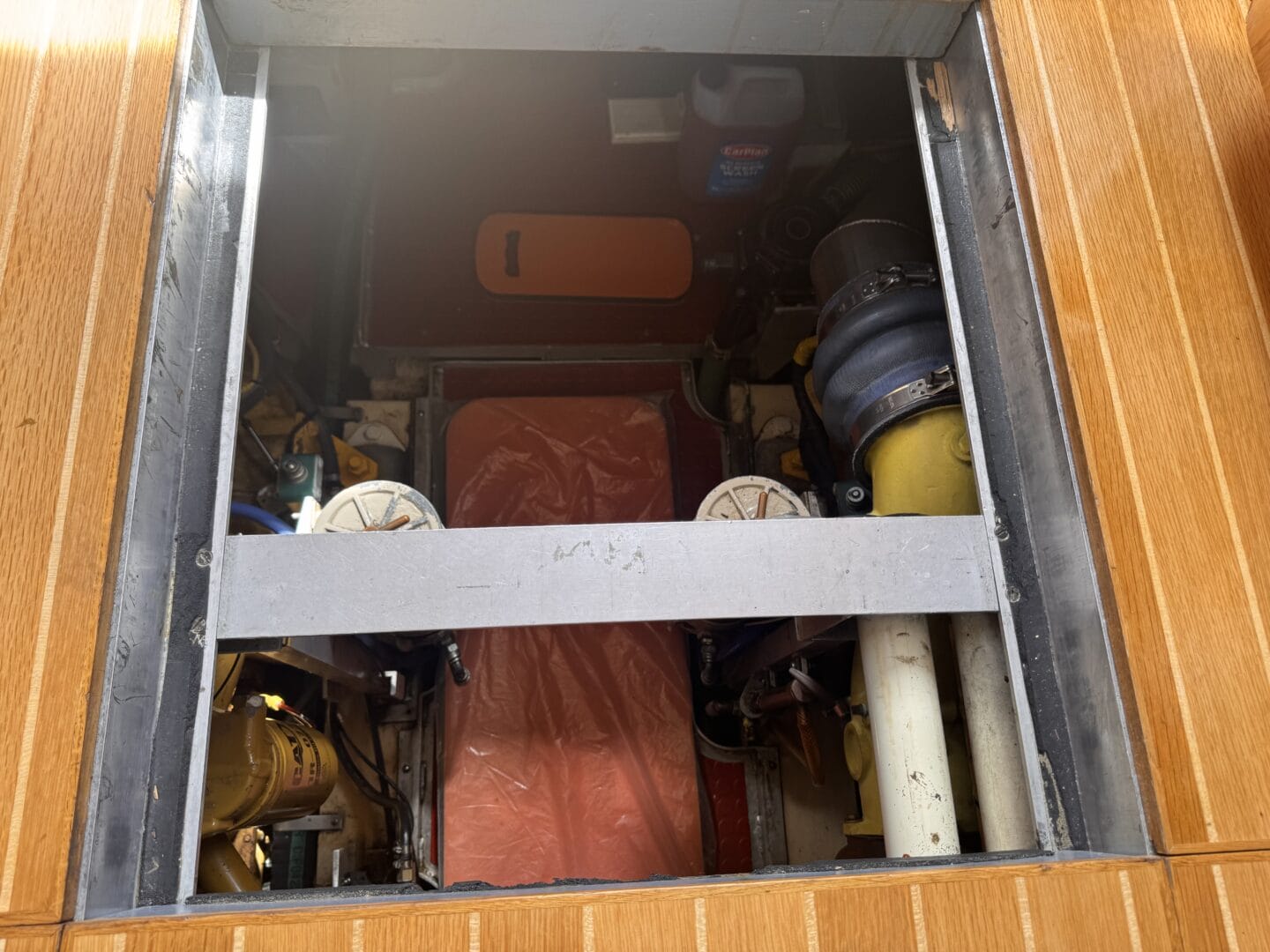

Engines:

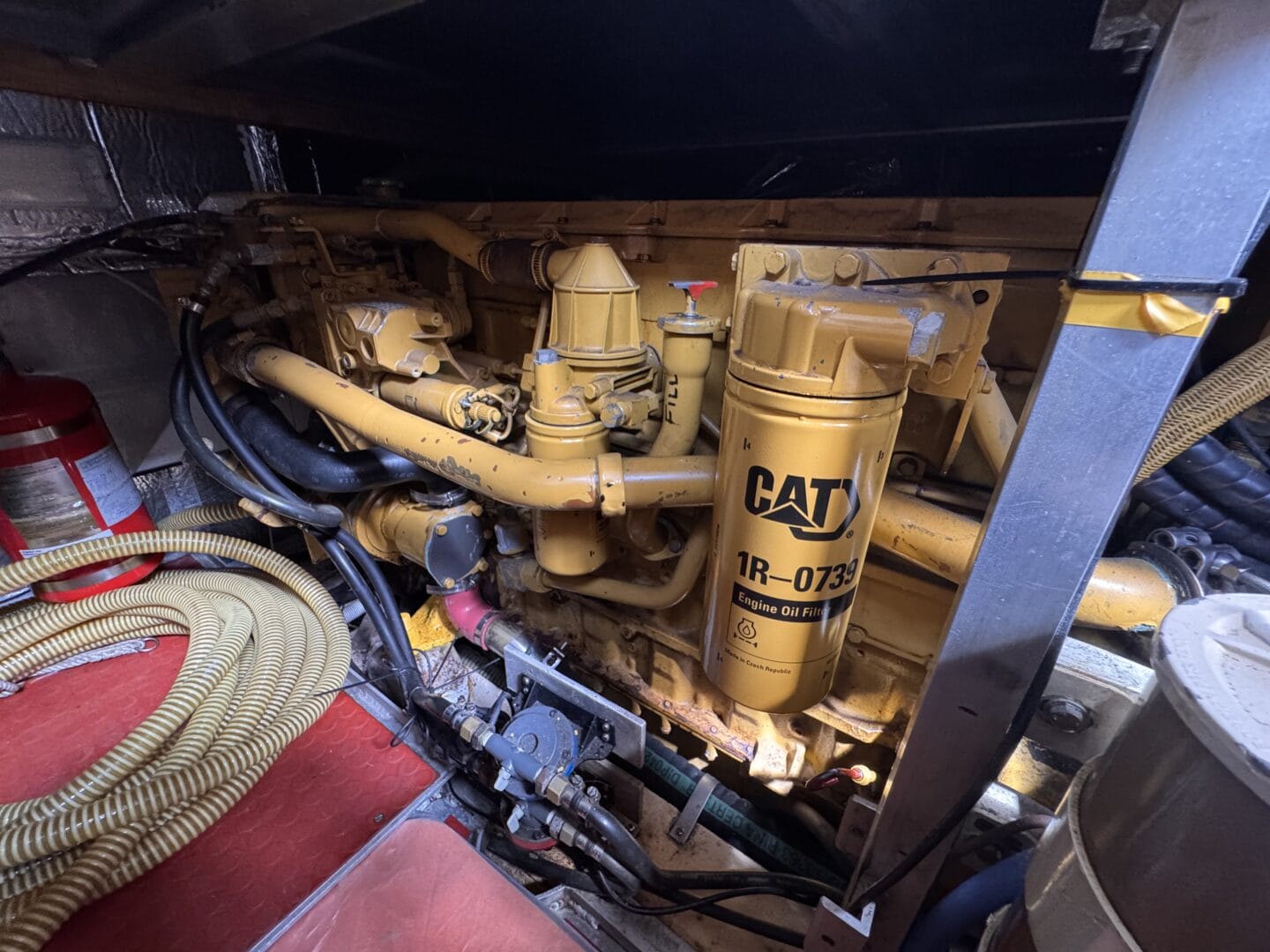

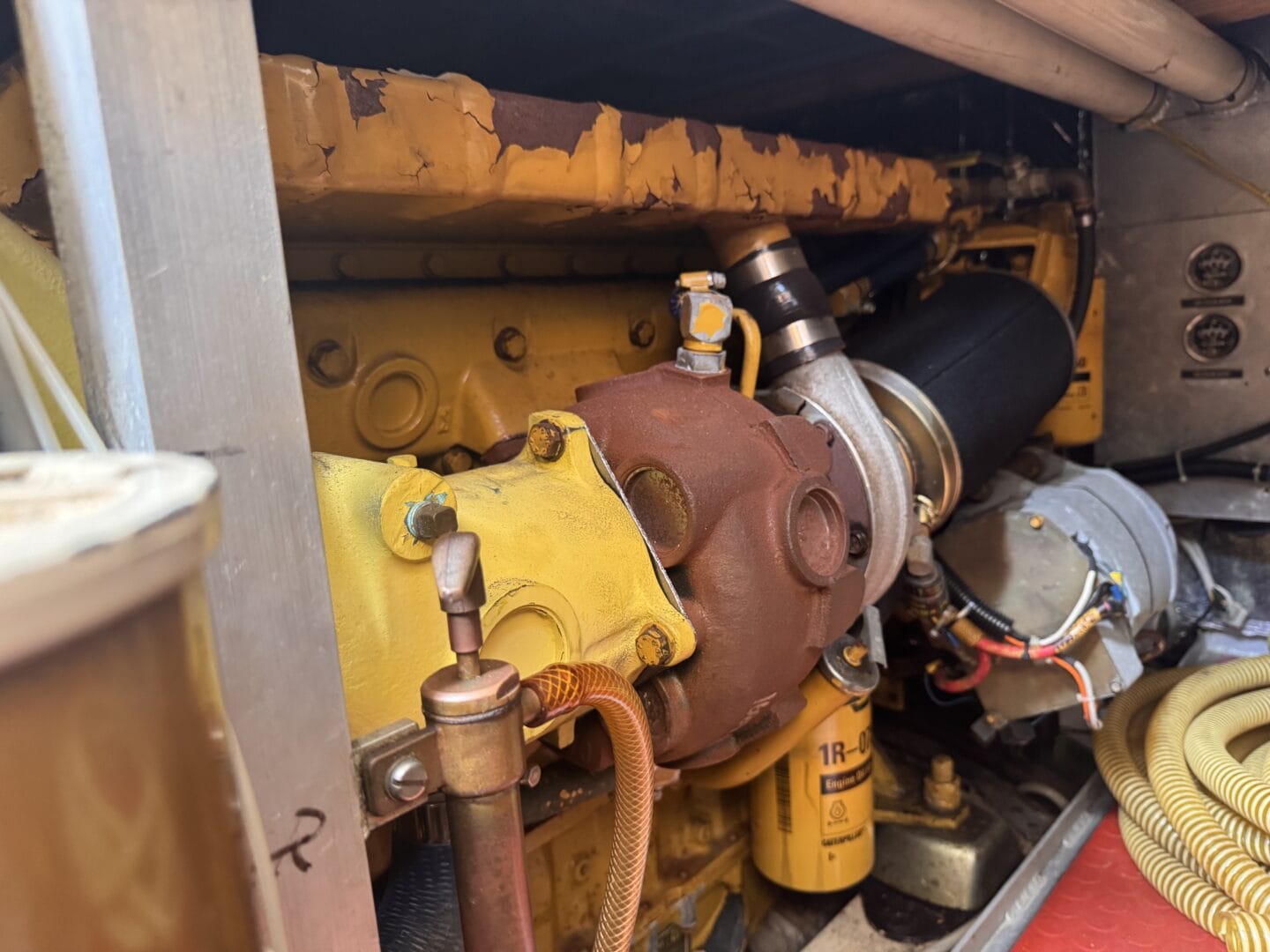

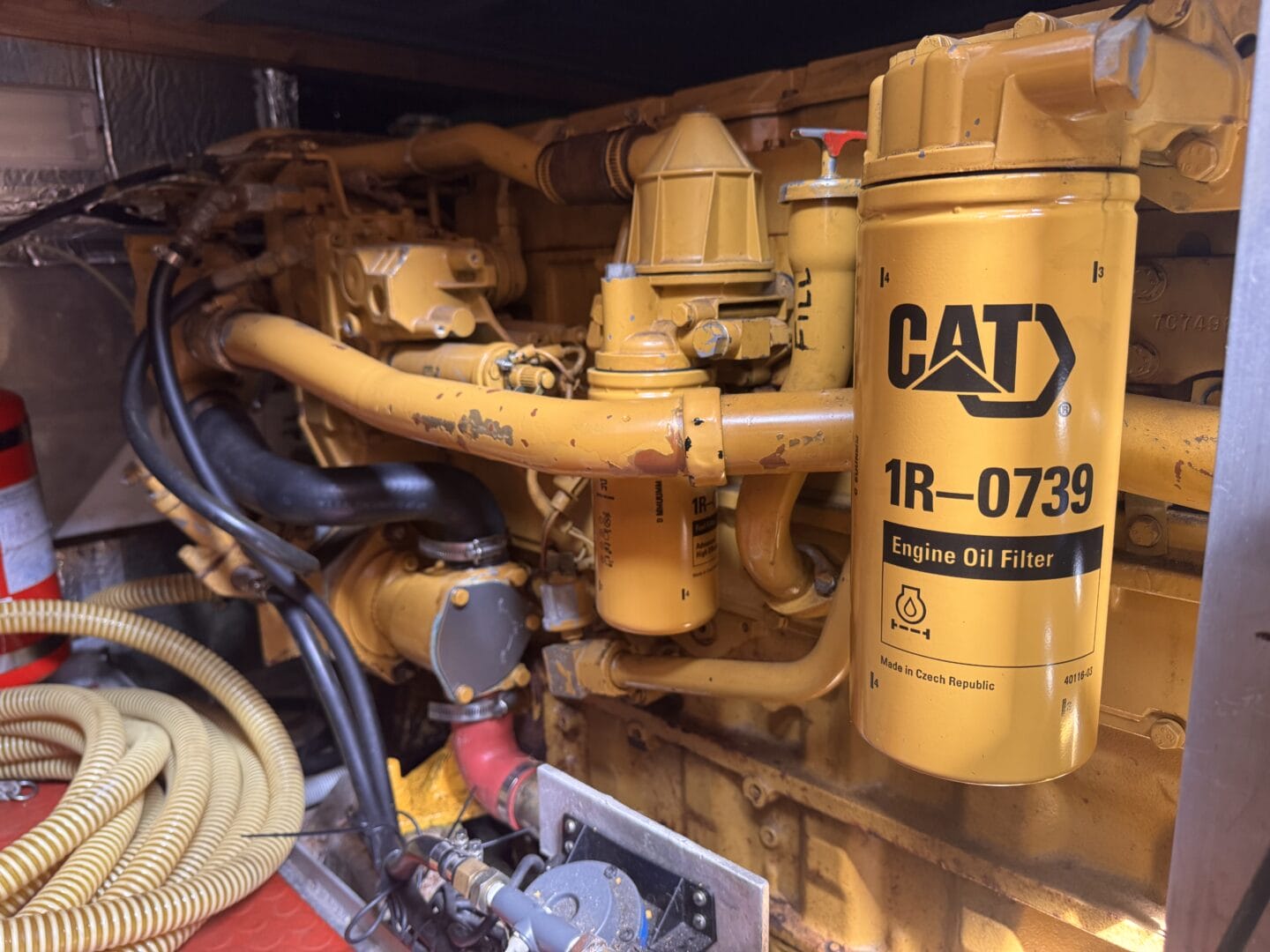

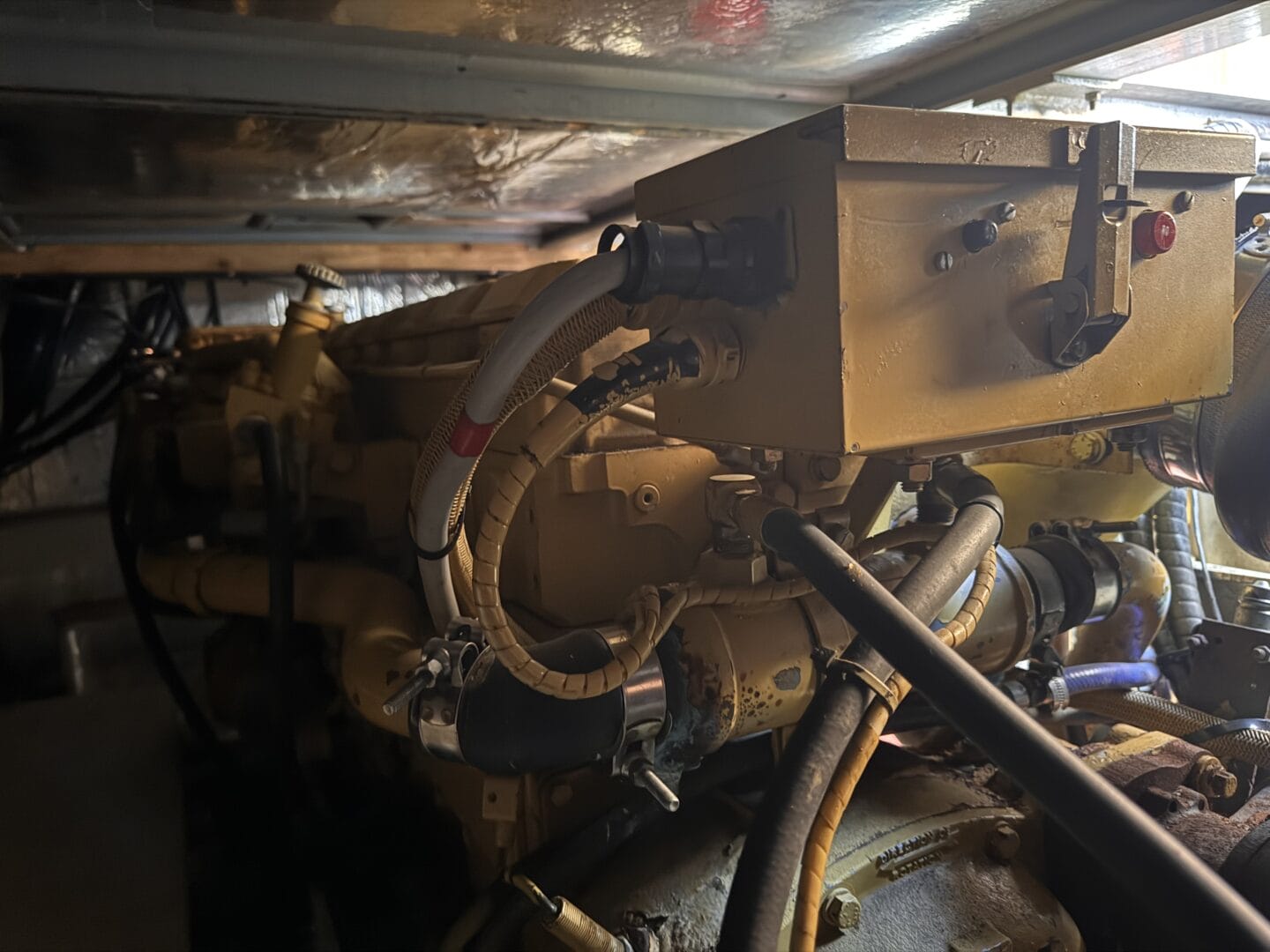

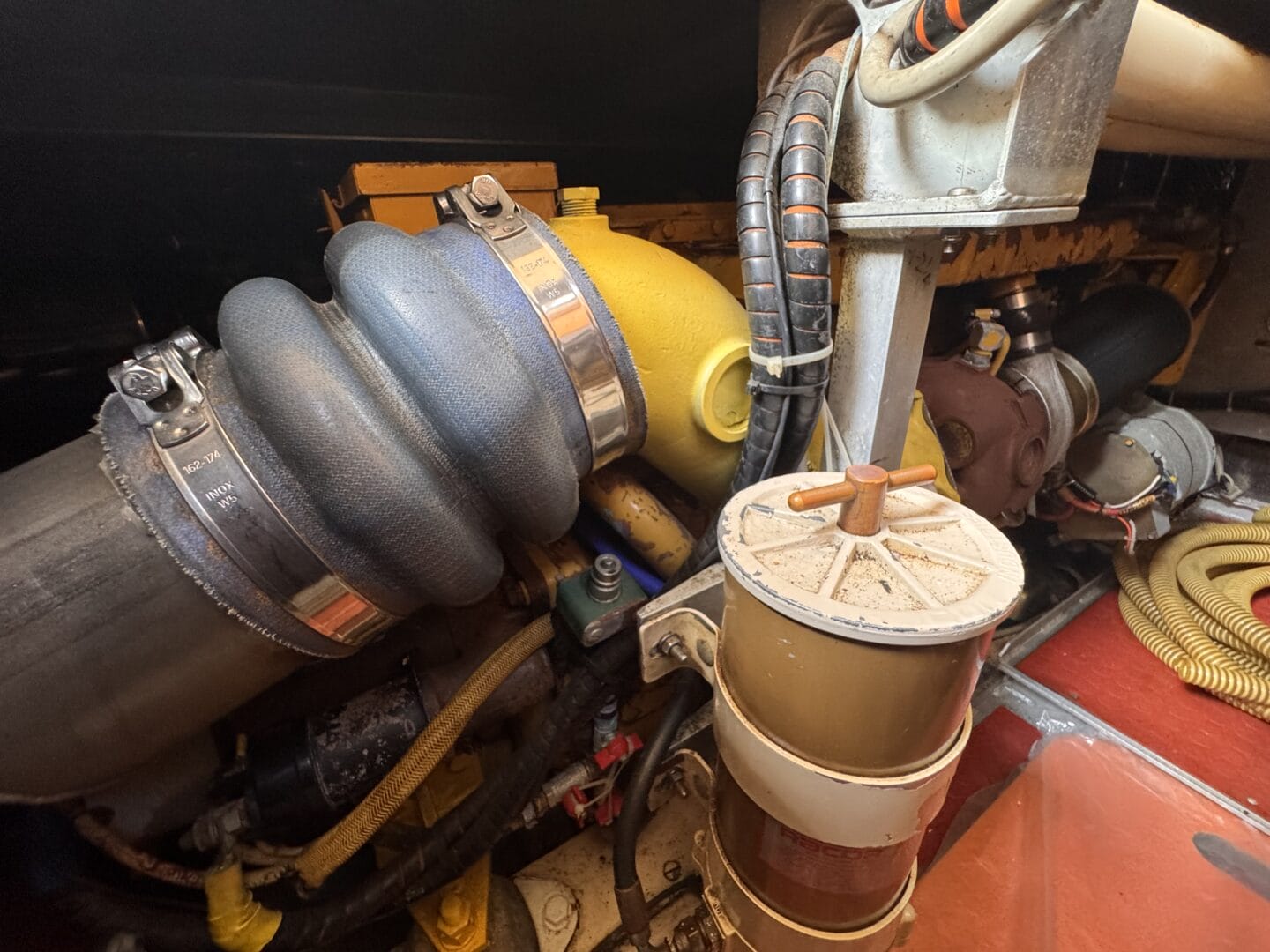

• Twin Caterpillar 3116TA turbo intercooled marine diesel engines (2000 hrs)
• Aquadrives and Twin Disc 5050A / 2:1 gearboxes
• 2“shafts with PSS seals
• Four-bladed 25” x 24” Equipoise propellers
• Max speed approx. 21 knots
• Cruising speed approx. 17 knots

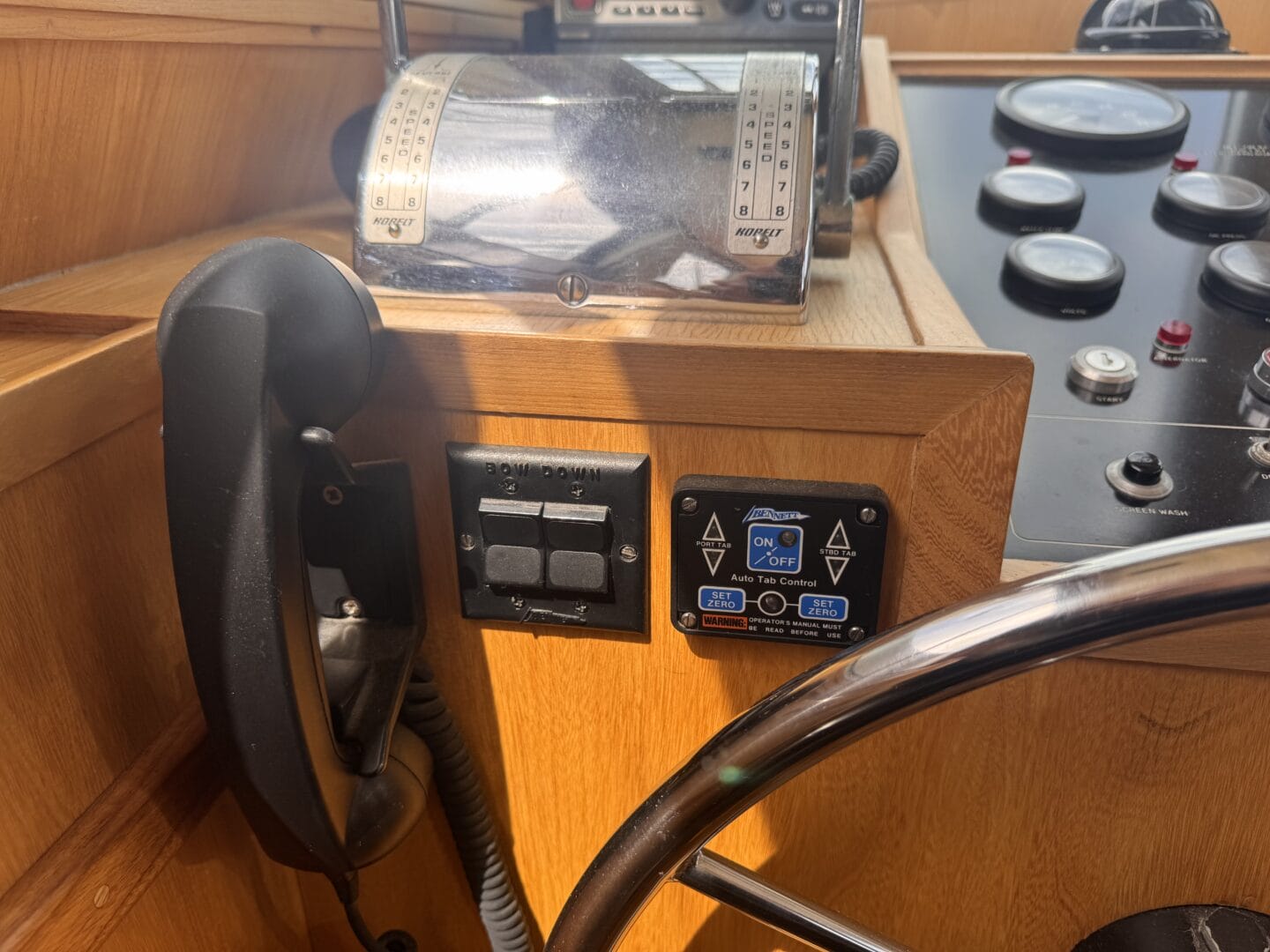

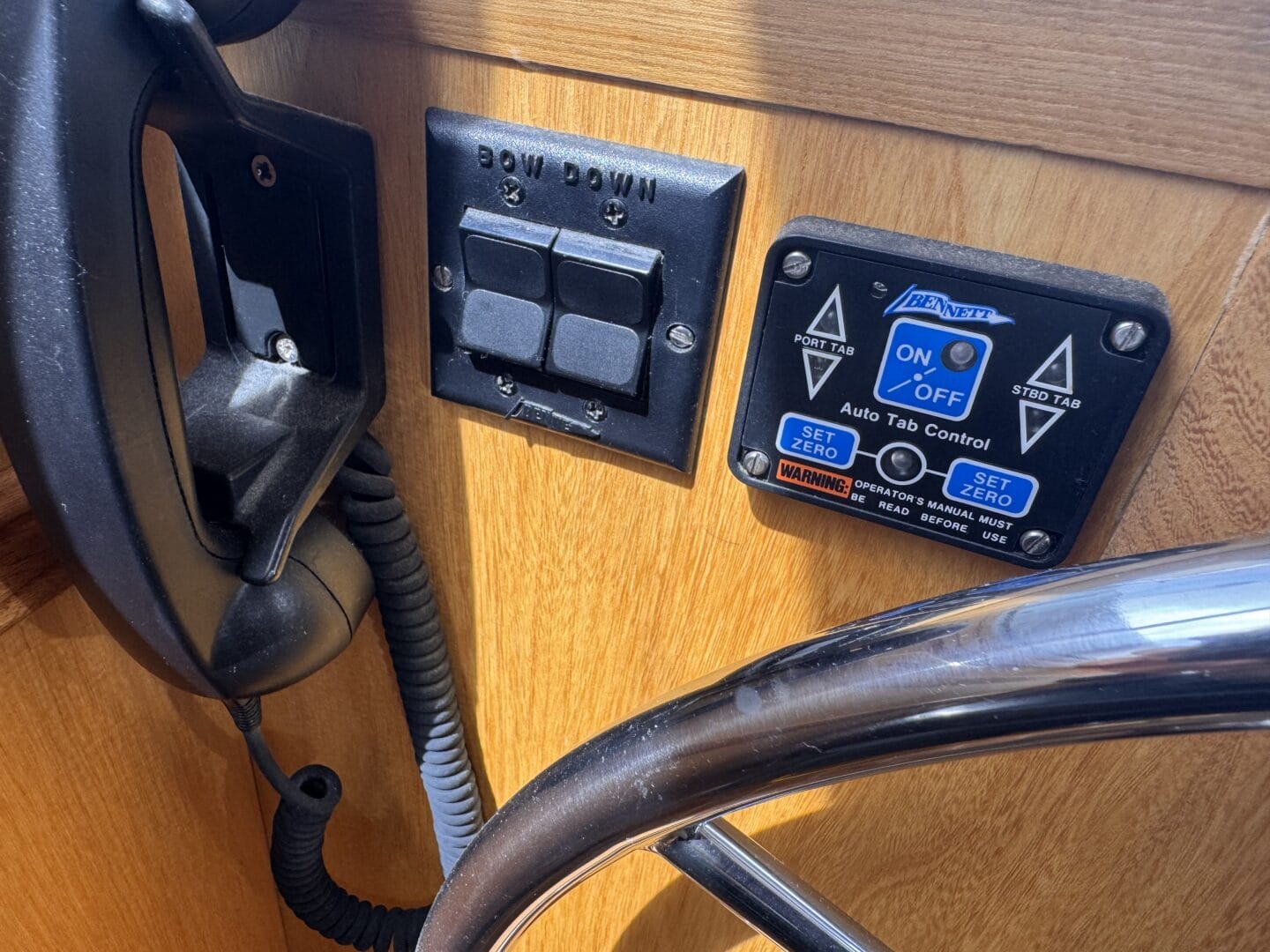

• Bennett trim tabs (and auto-tab control system at inside helm position)

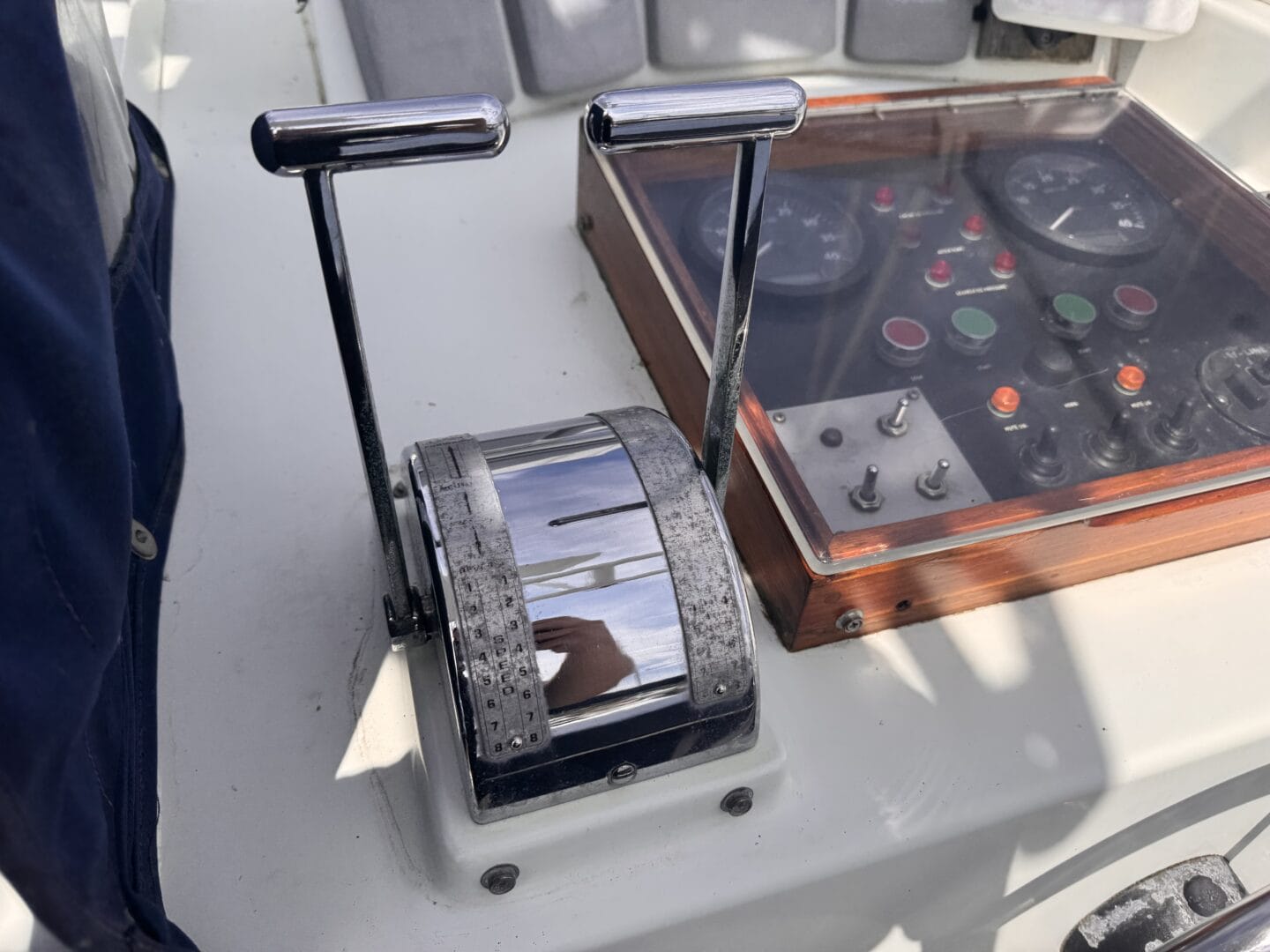

• Kobelt single lever mechanical engine controls at both helm positions

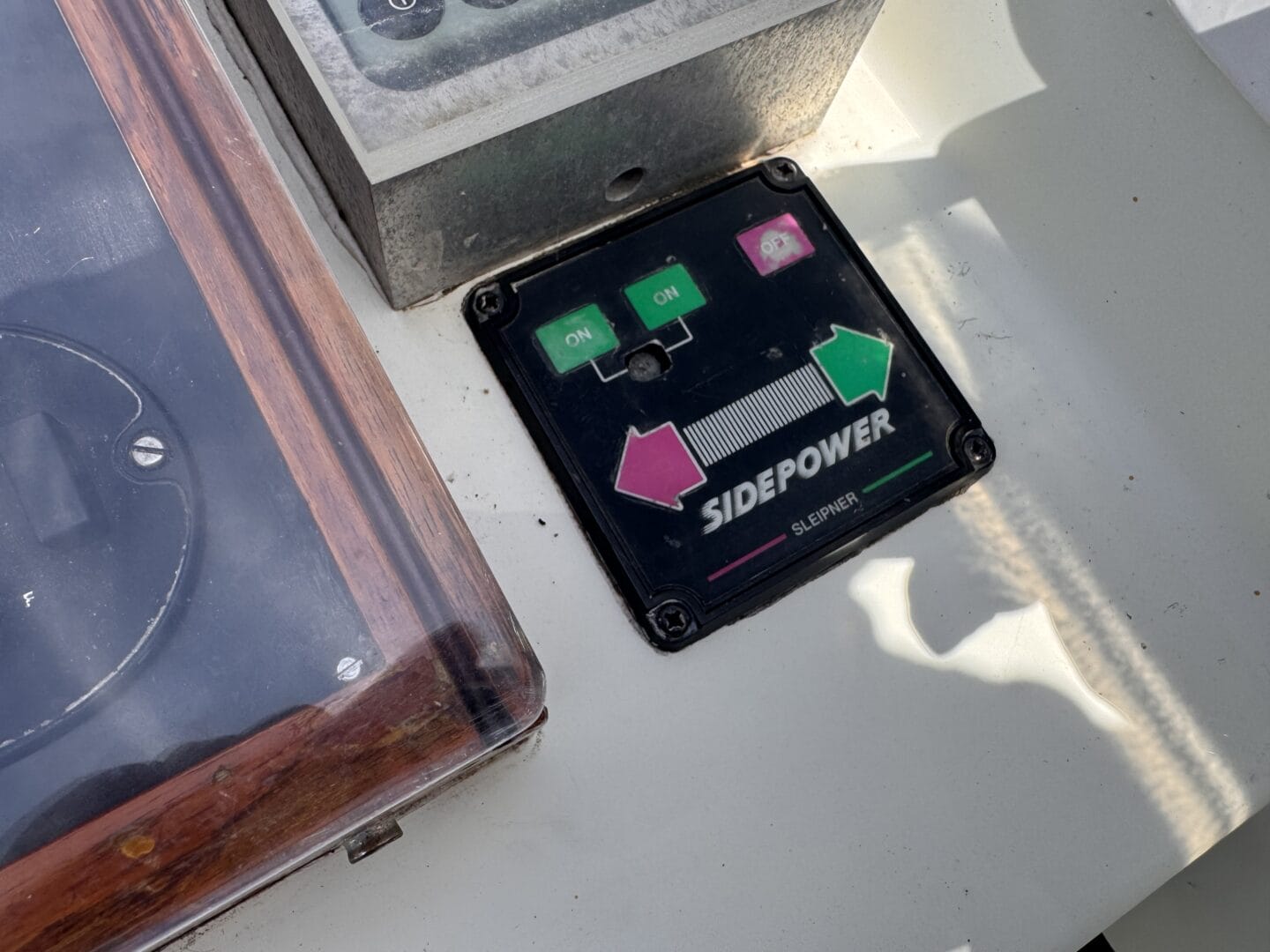

• Bow and stern thrusters
• Automatic fire extinguishing system (4kg gas) with shut off flaps in elephant ears
• Underwater and side exhausts (with HMI exhaust alert at inside helm position)
• Hydraulic steering
• Racor filters

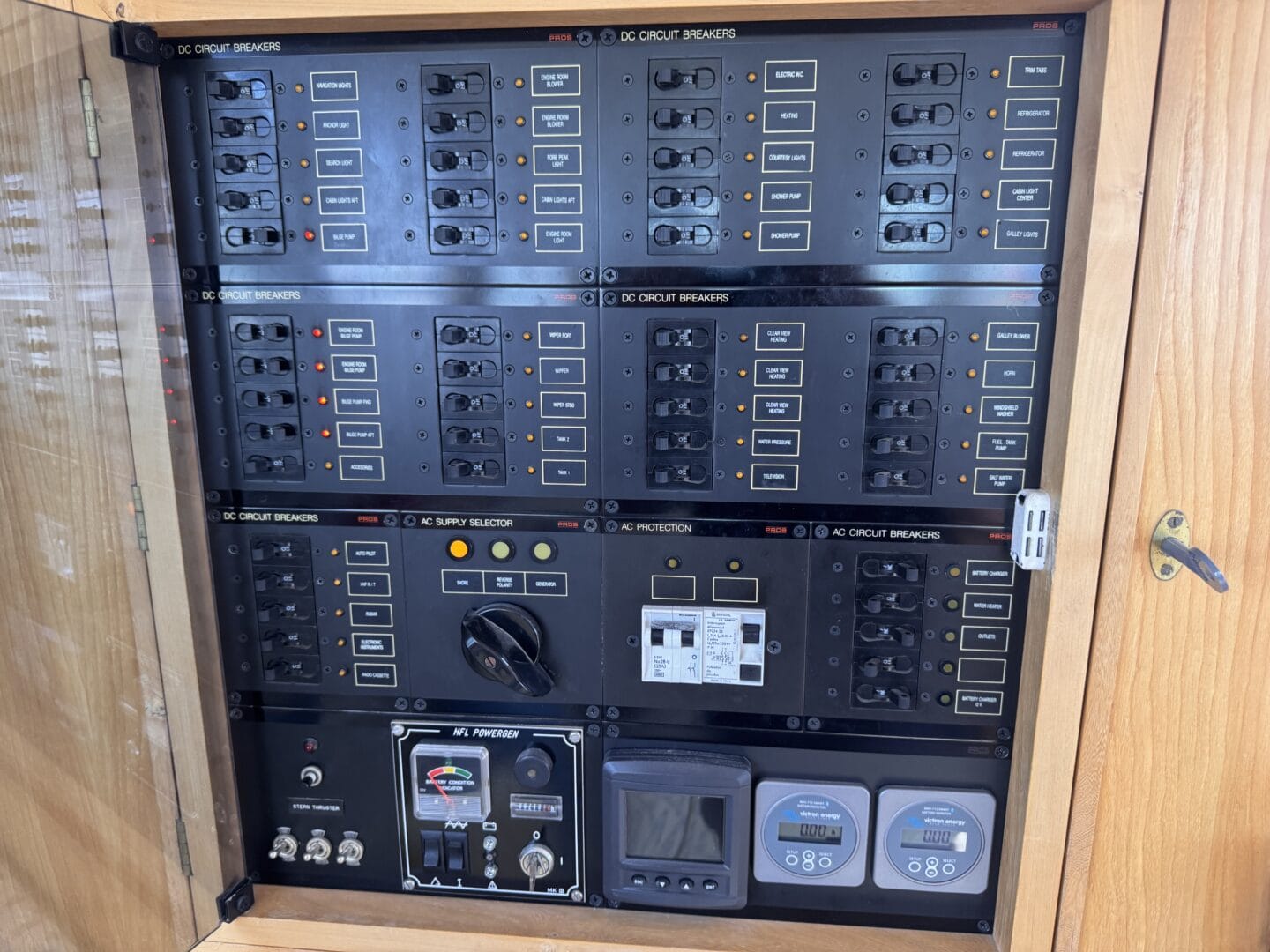

Electrics:

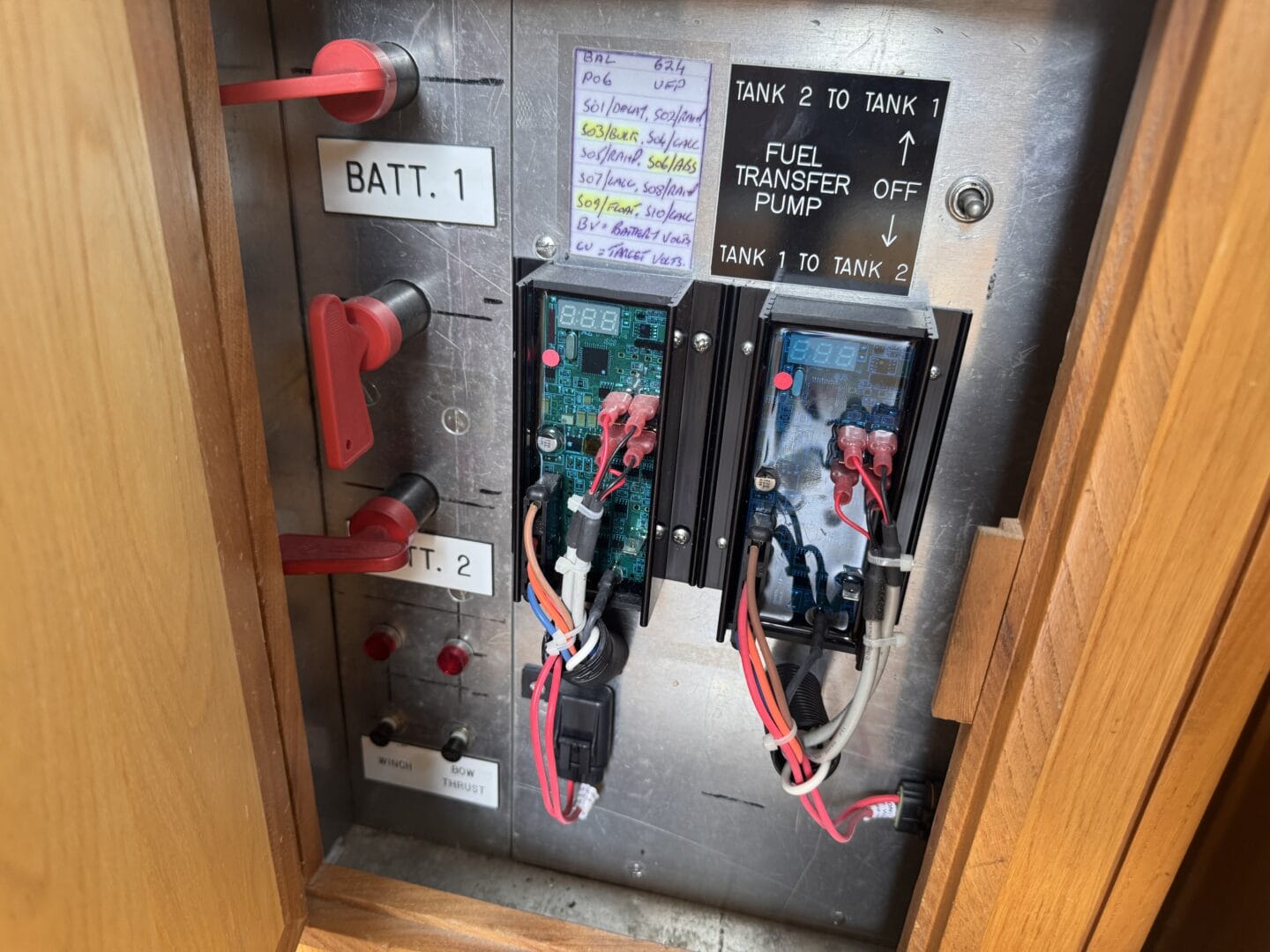

• 24-volt battery system (x 4 in two banks port and starboard)

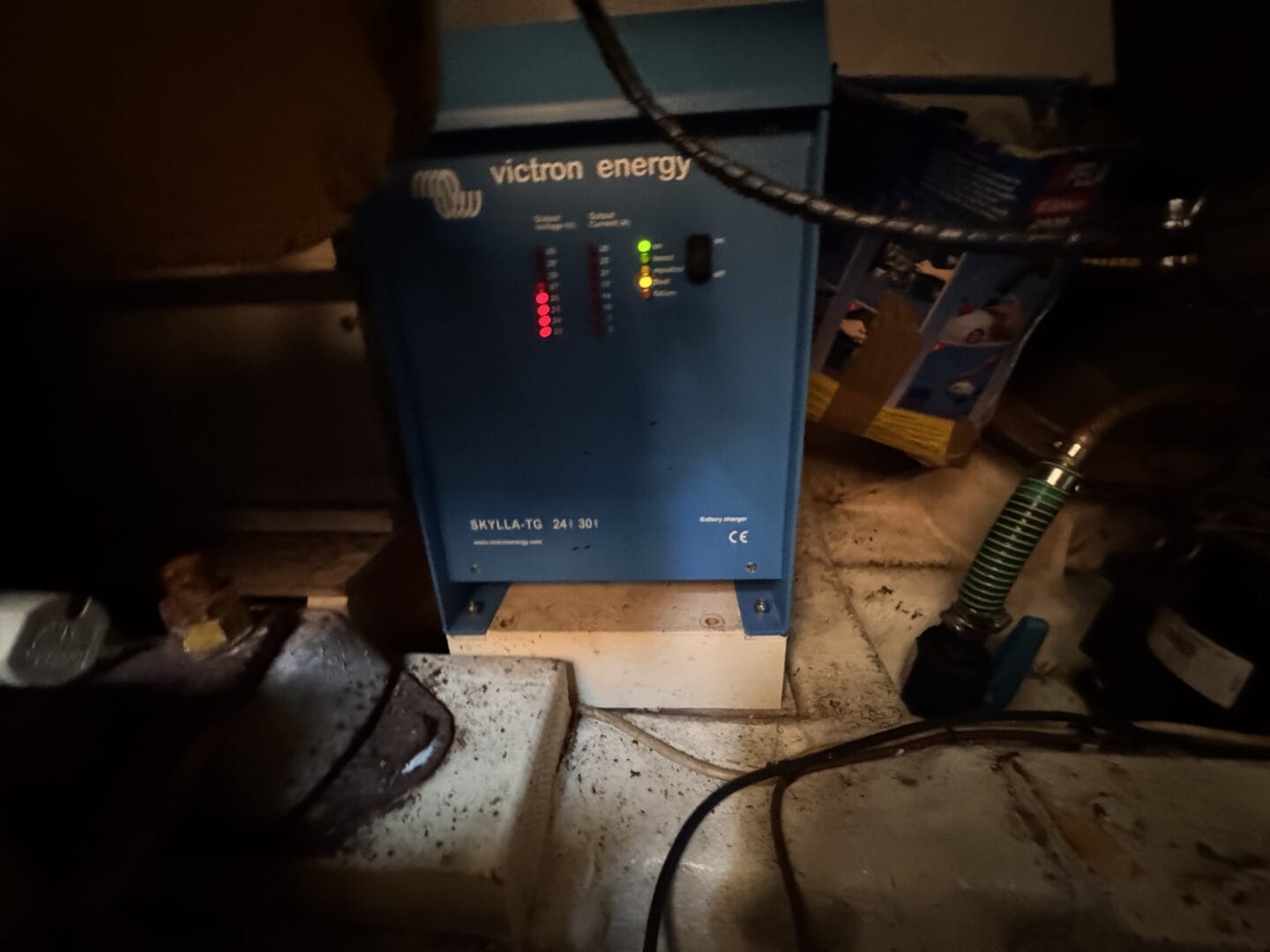

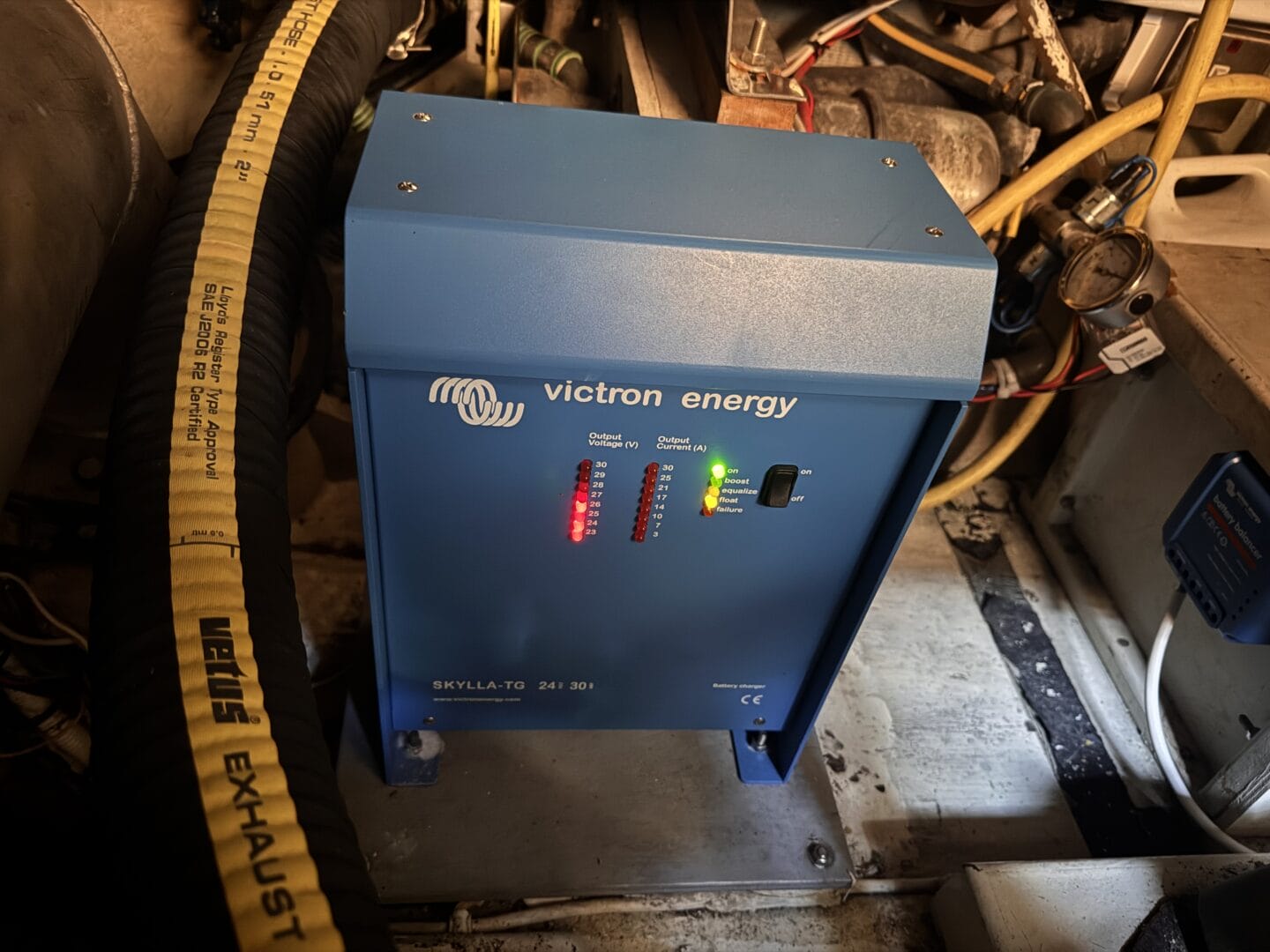

• Victron Energy battery monitors and chargers (x2).
• 240-volt shore supply with ring main and socket outlets.
• BEP AC systems monitor.

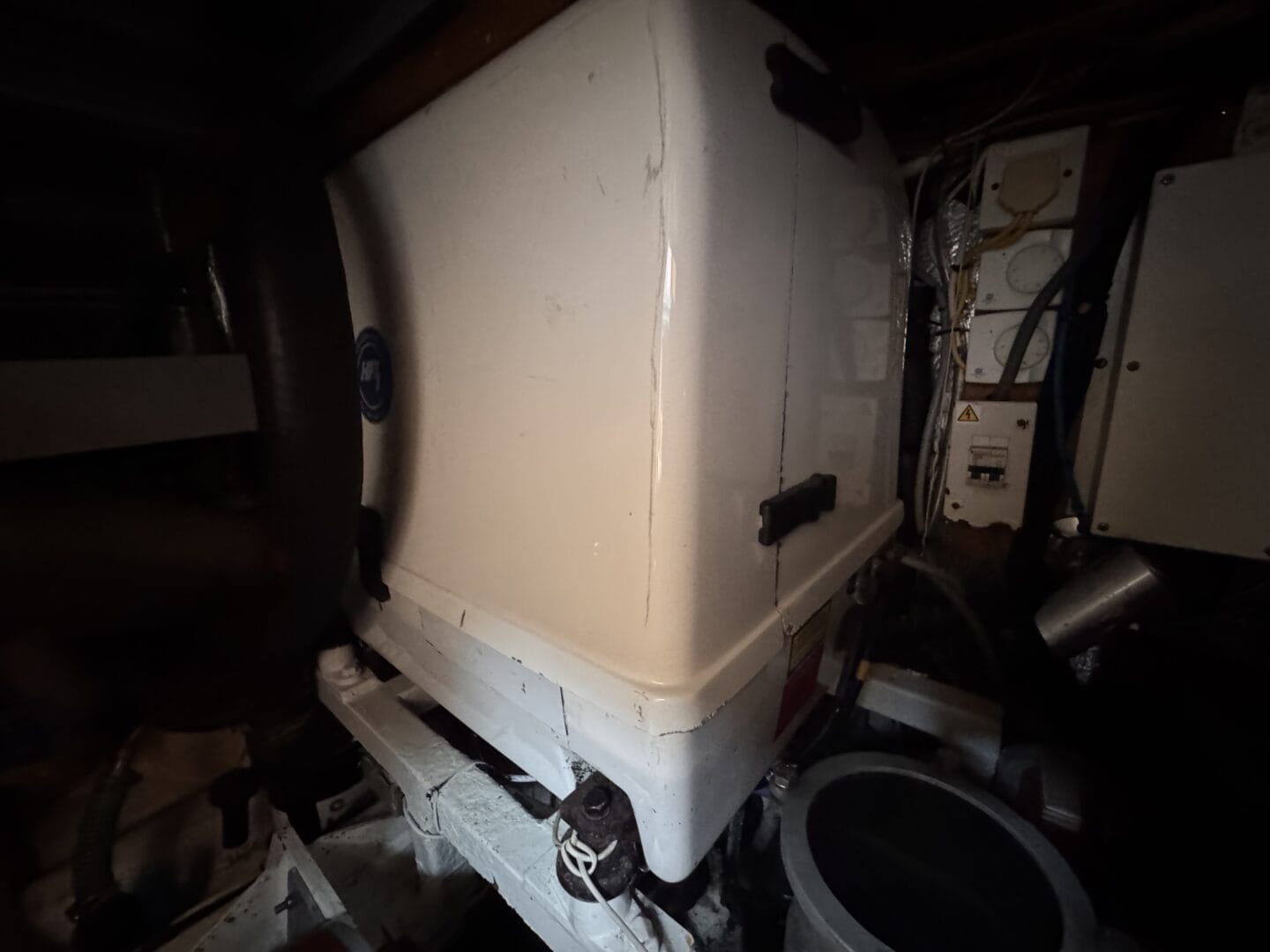

• 8 hp HFL H2W8MIC diesel generator.
• Full navigation lights.
• Comprehensive interior cabin lighting.
• 3 x Wynn straight line windscreen wipers. Windscreen wash and demist.
• Horn
• Searchlight
• Pressurised hot and cold-water system (calorifier and immersion heater).

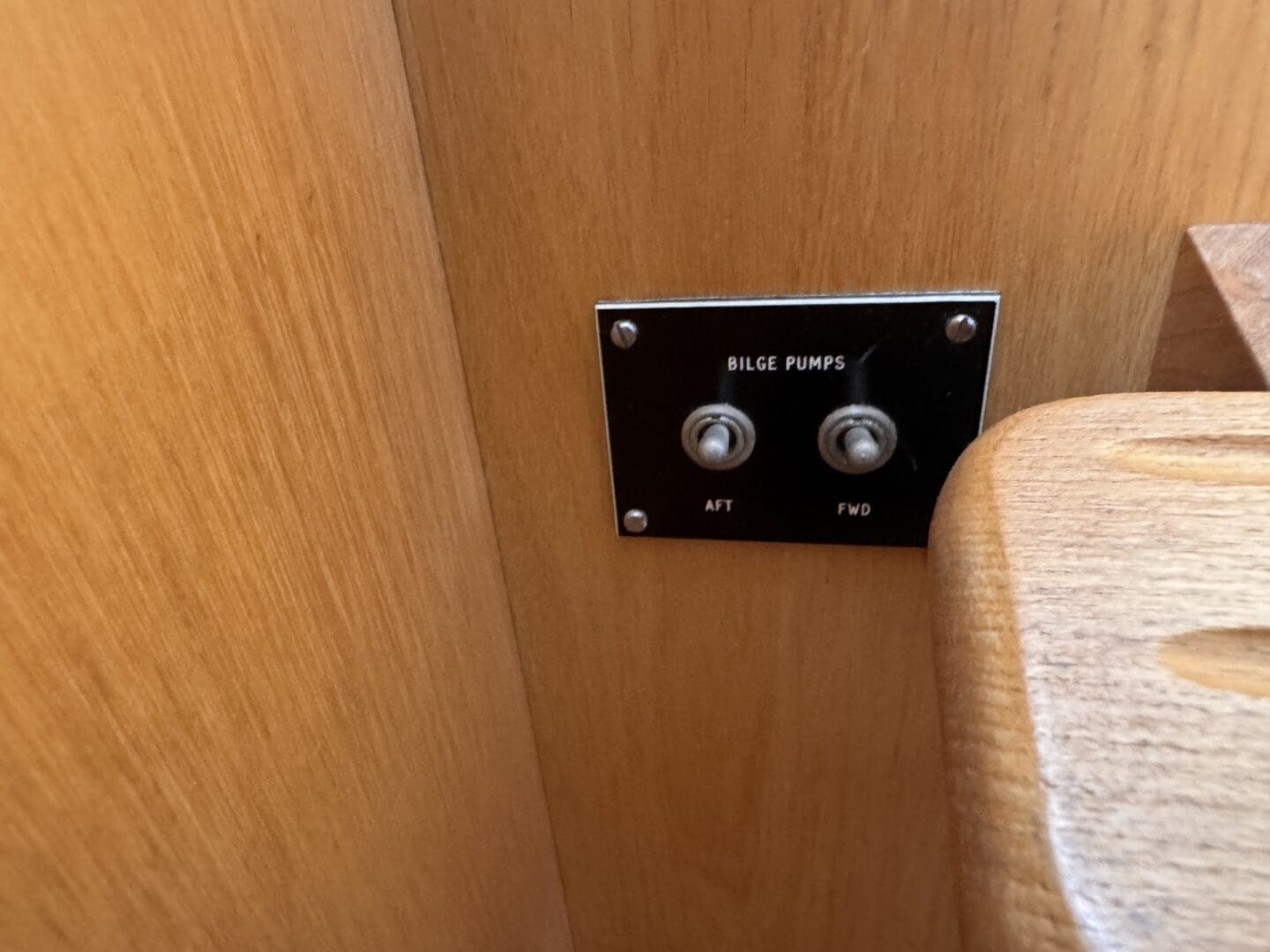

• 5 x auto electric bilge pumps, plus 1 x engine driven pump for high volume and 3 x manual bilge pumps.

Accommodation:

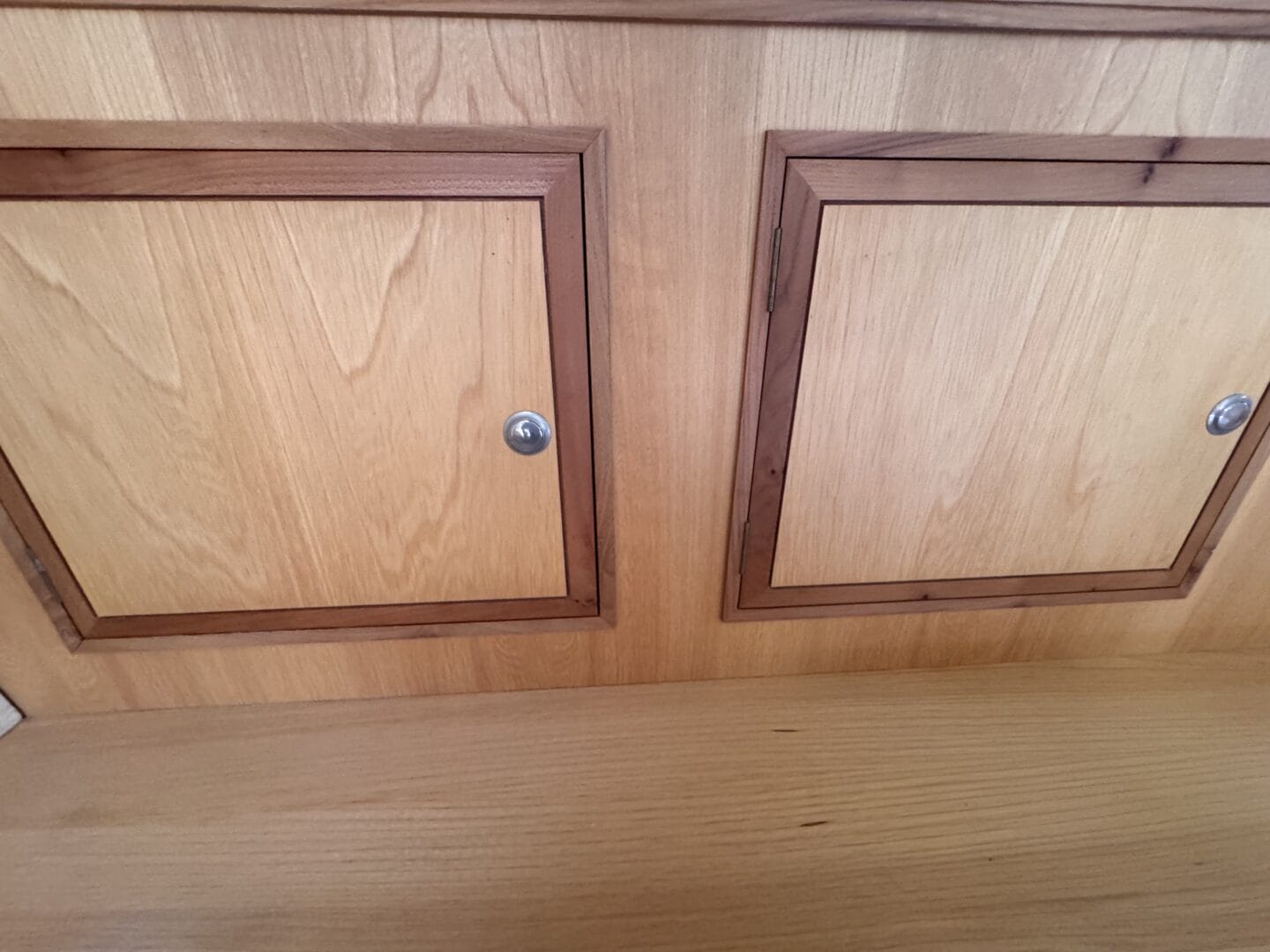

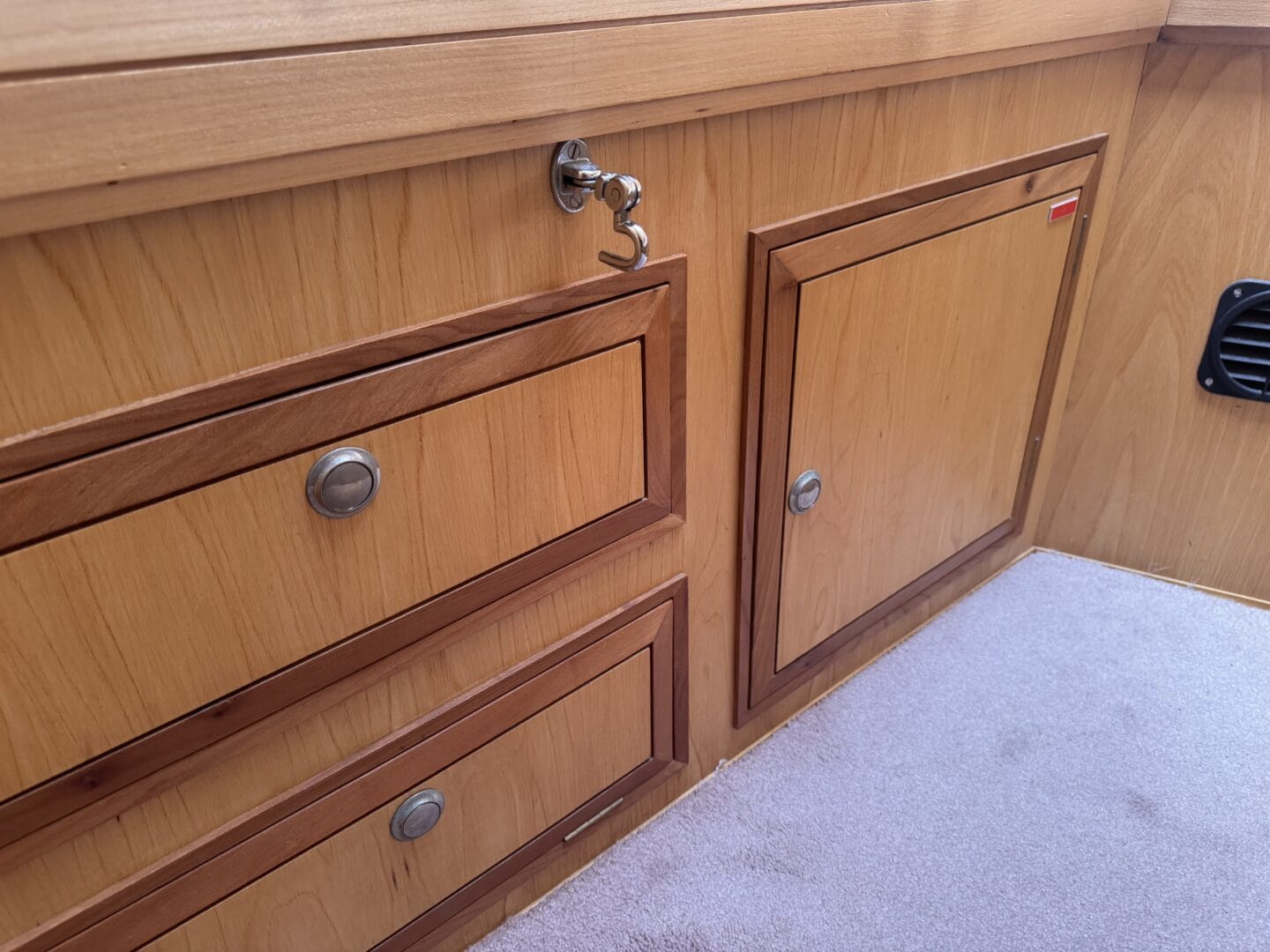

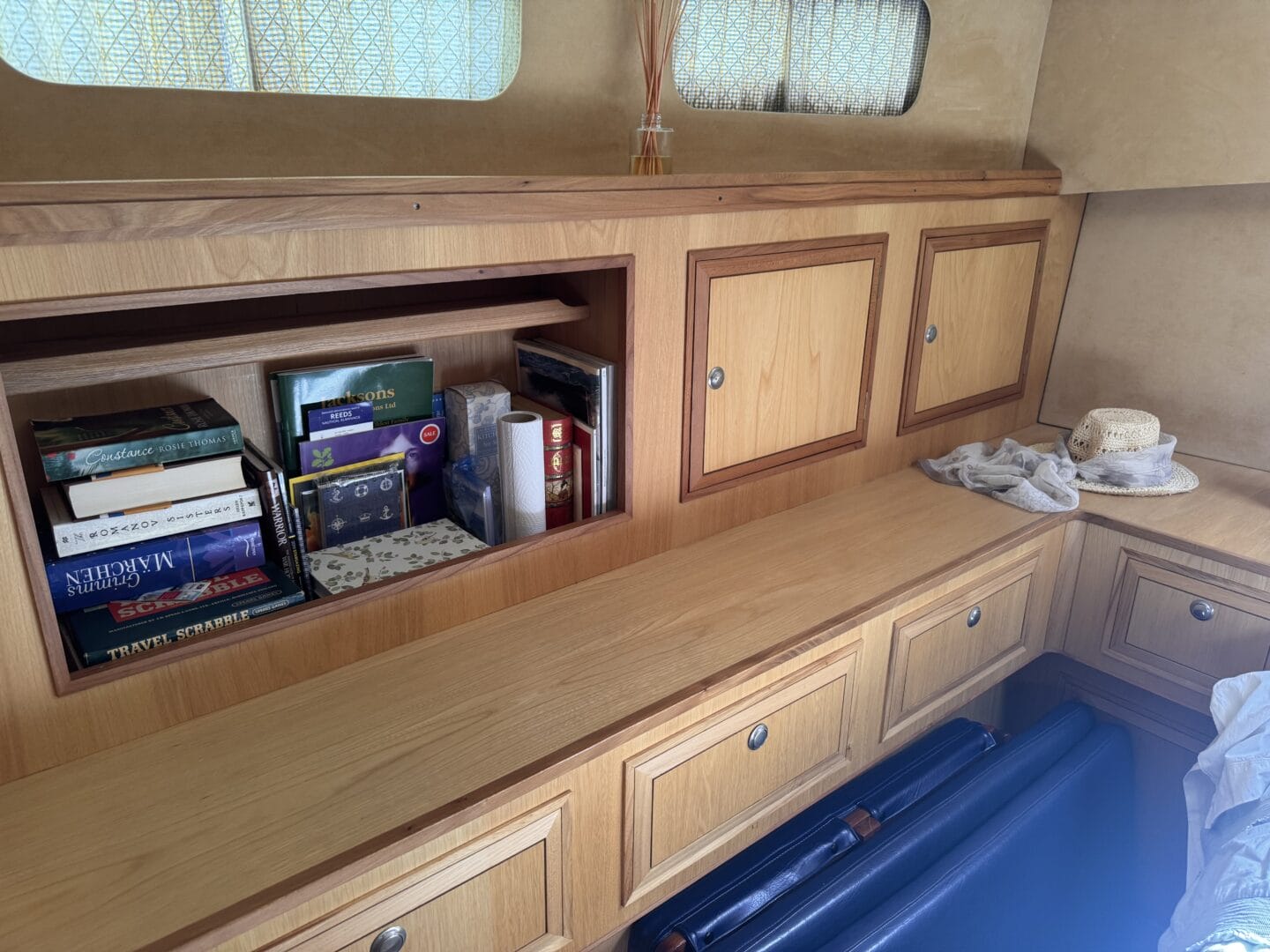

• Ample stowage and lockerage throughout the vessel.

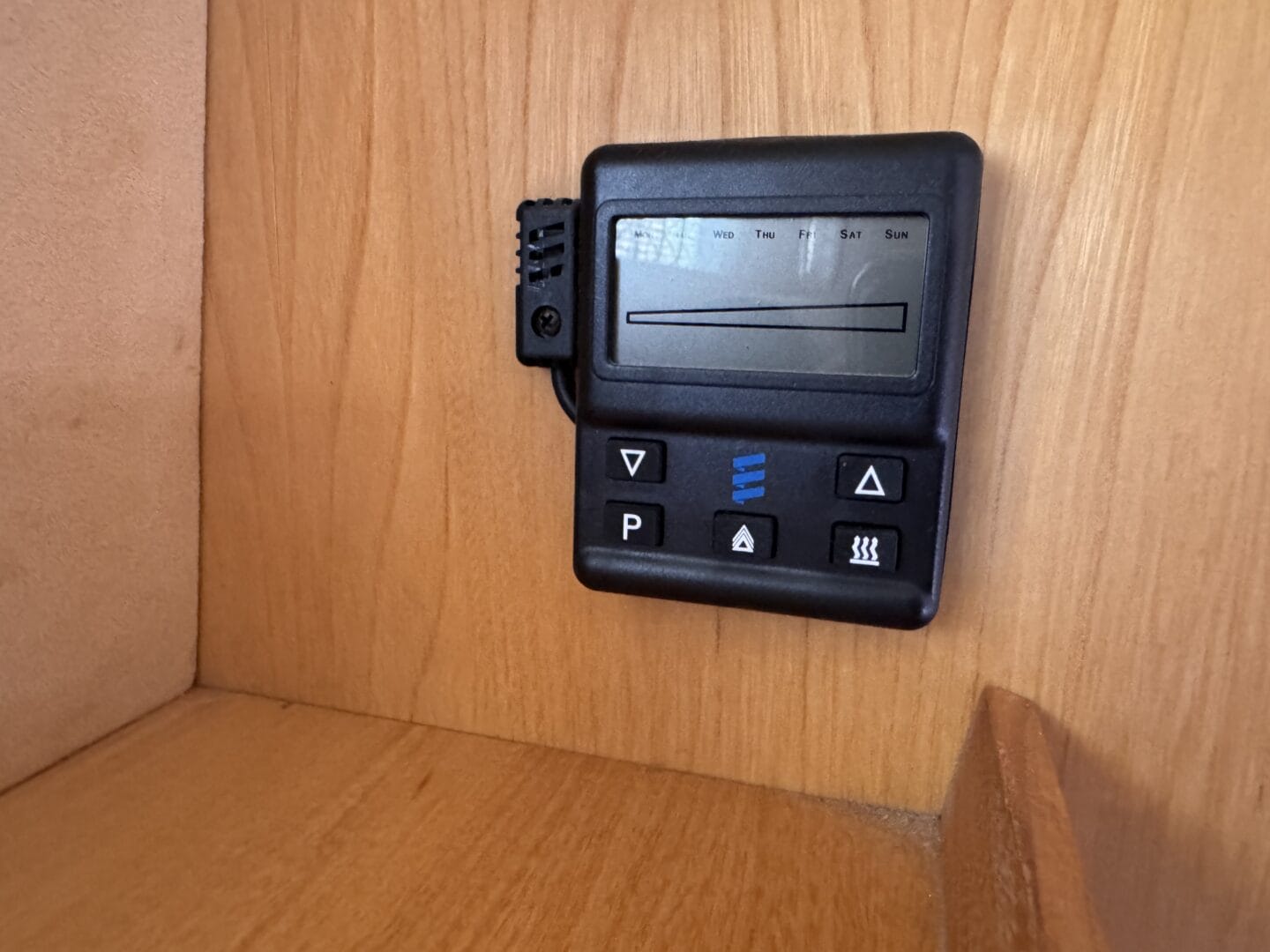

• Eberspacher diesel warm air heating system.

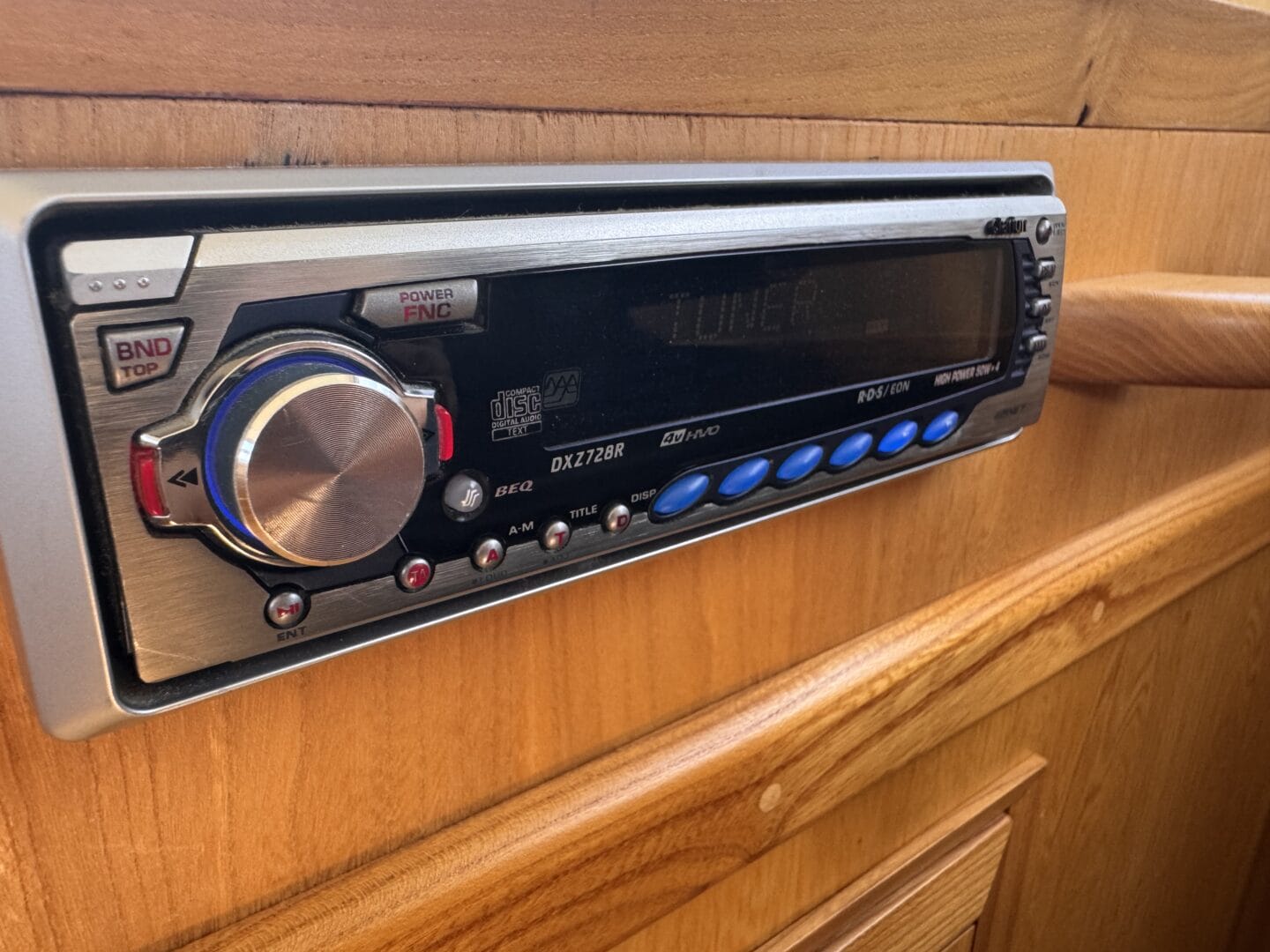

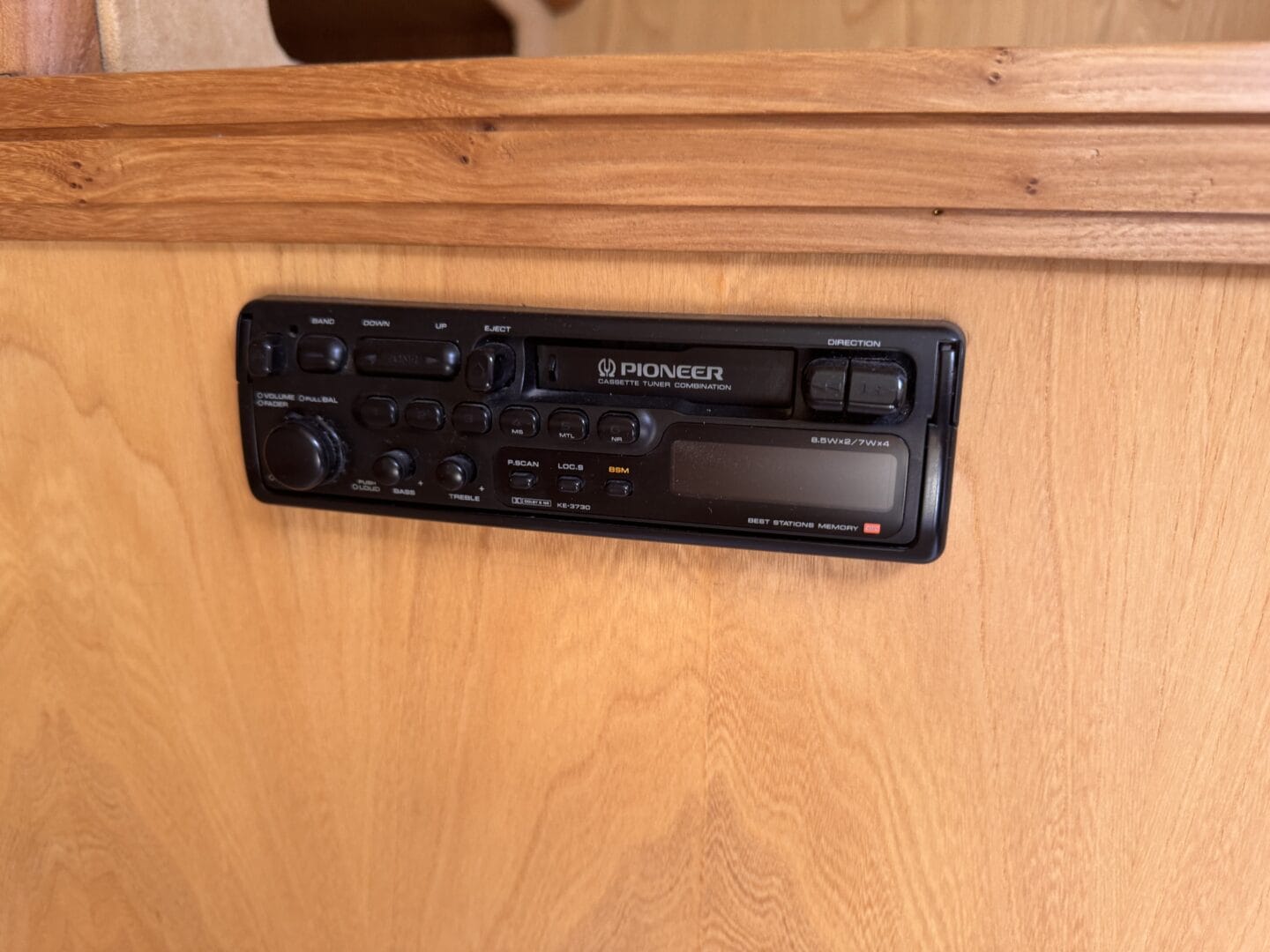

• Pioneer radio and speakers.

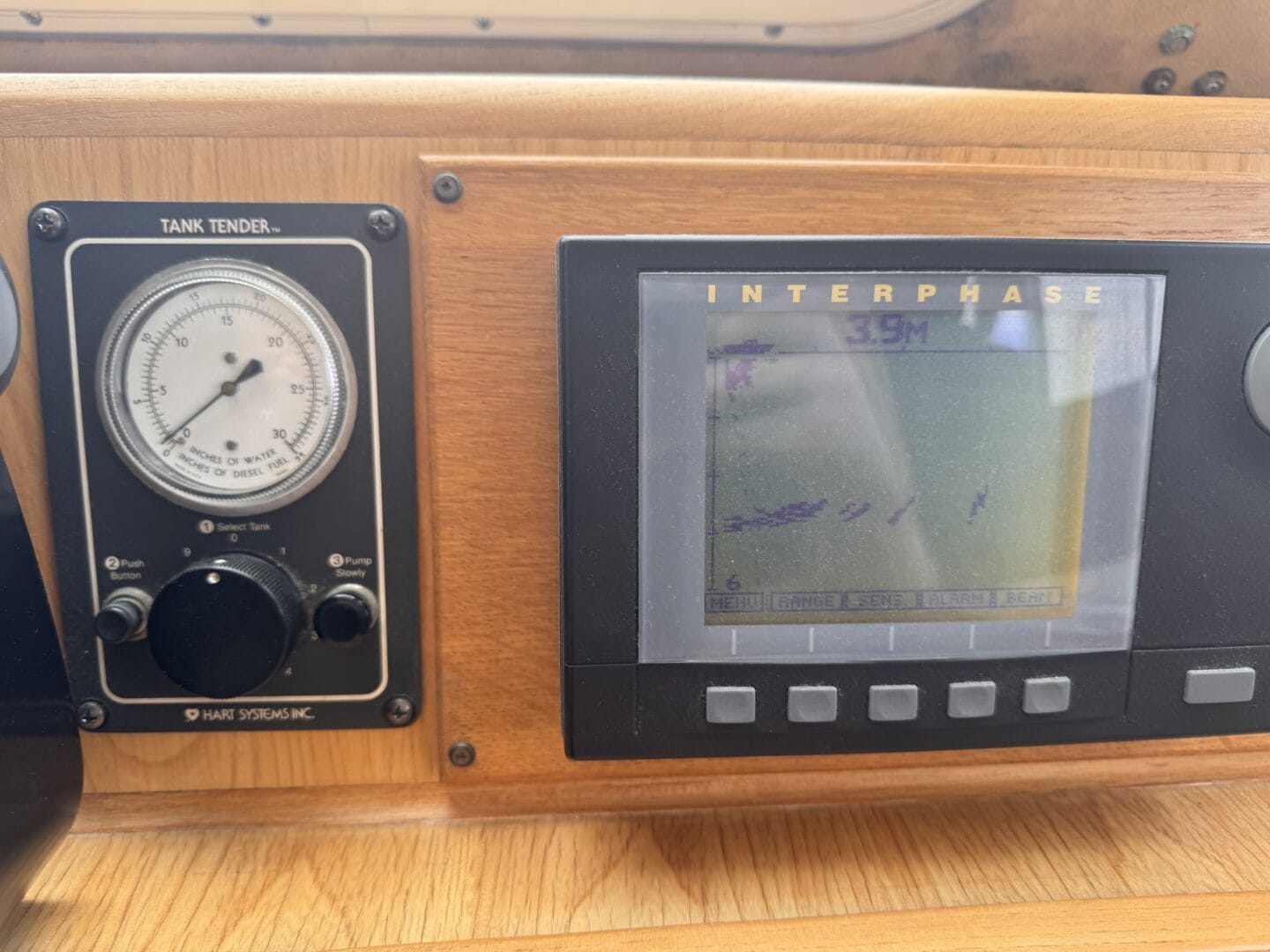

• Tank water and fuel guage.

Forward Cabin:

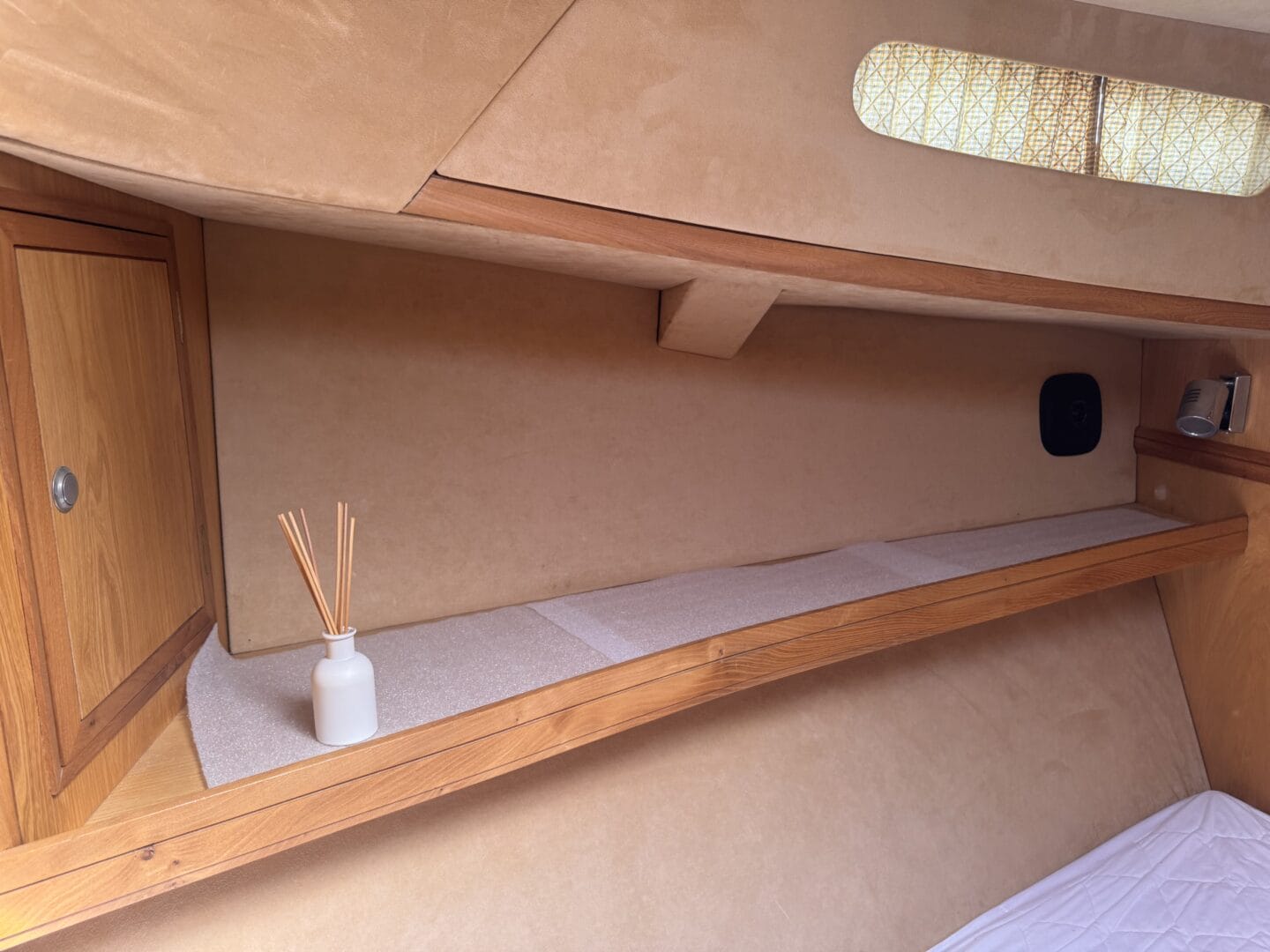

• With two single berths. Ample stowage areas, drawers and hanging wardrobe around the cabin.

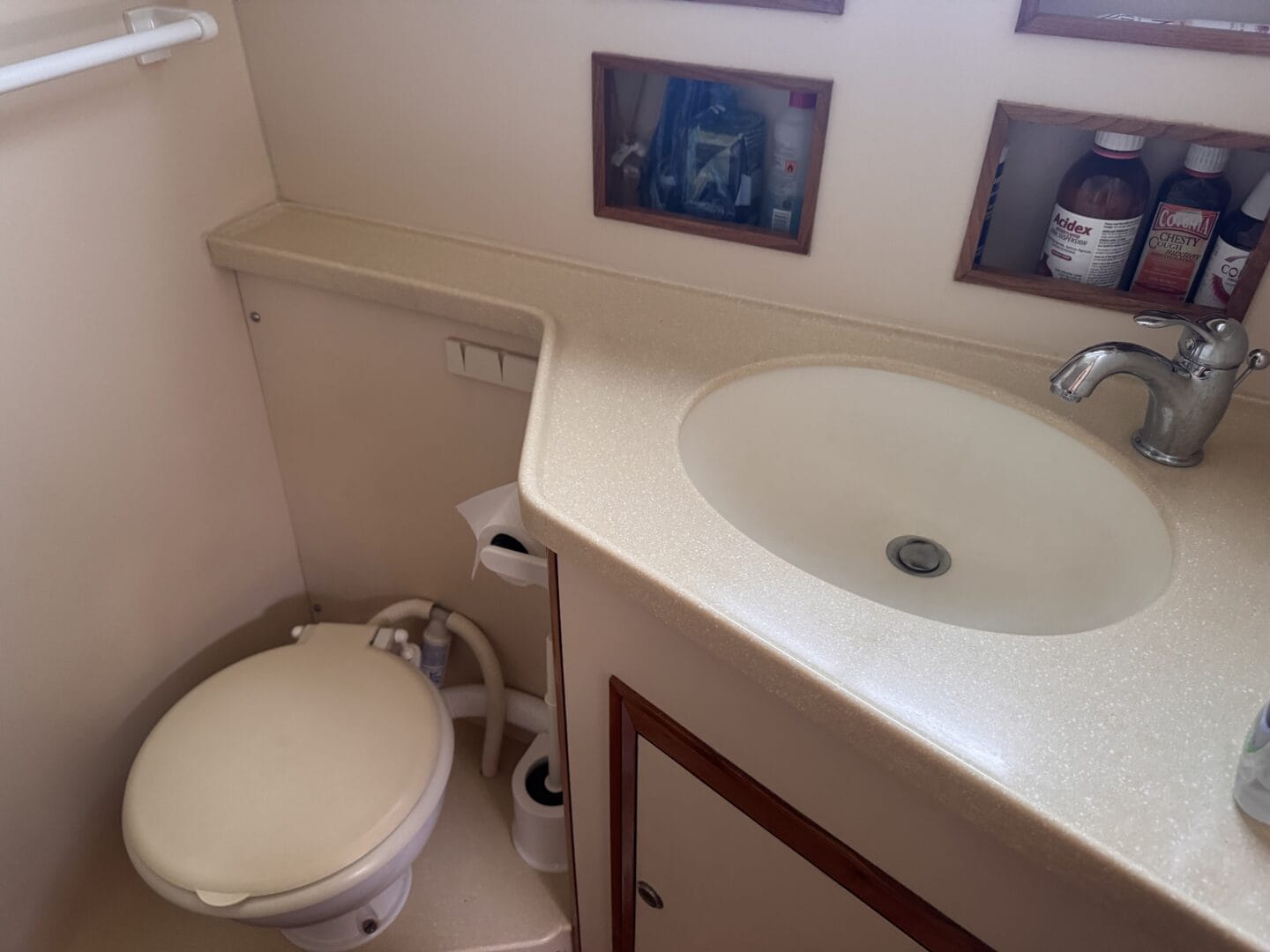

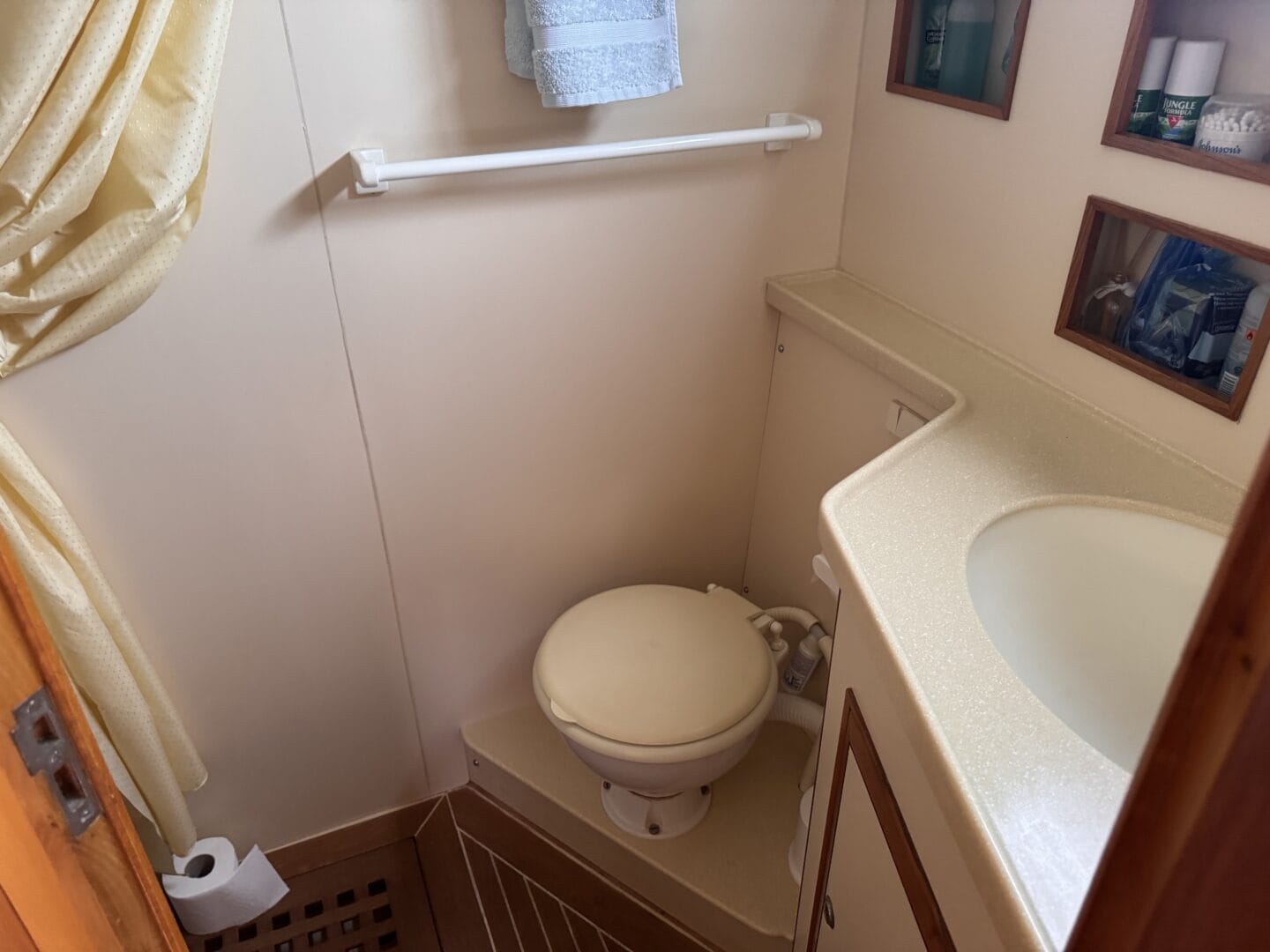

Forward Cabin Ensuite Heads:

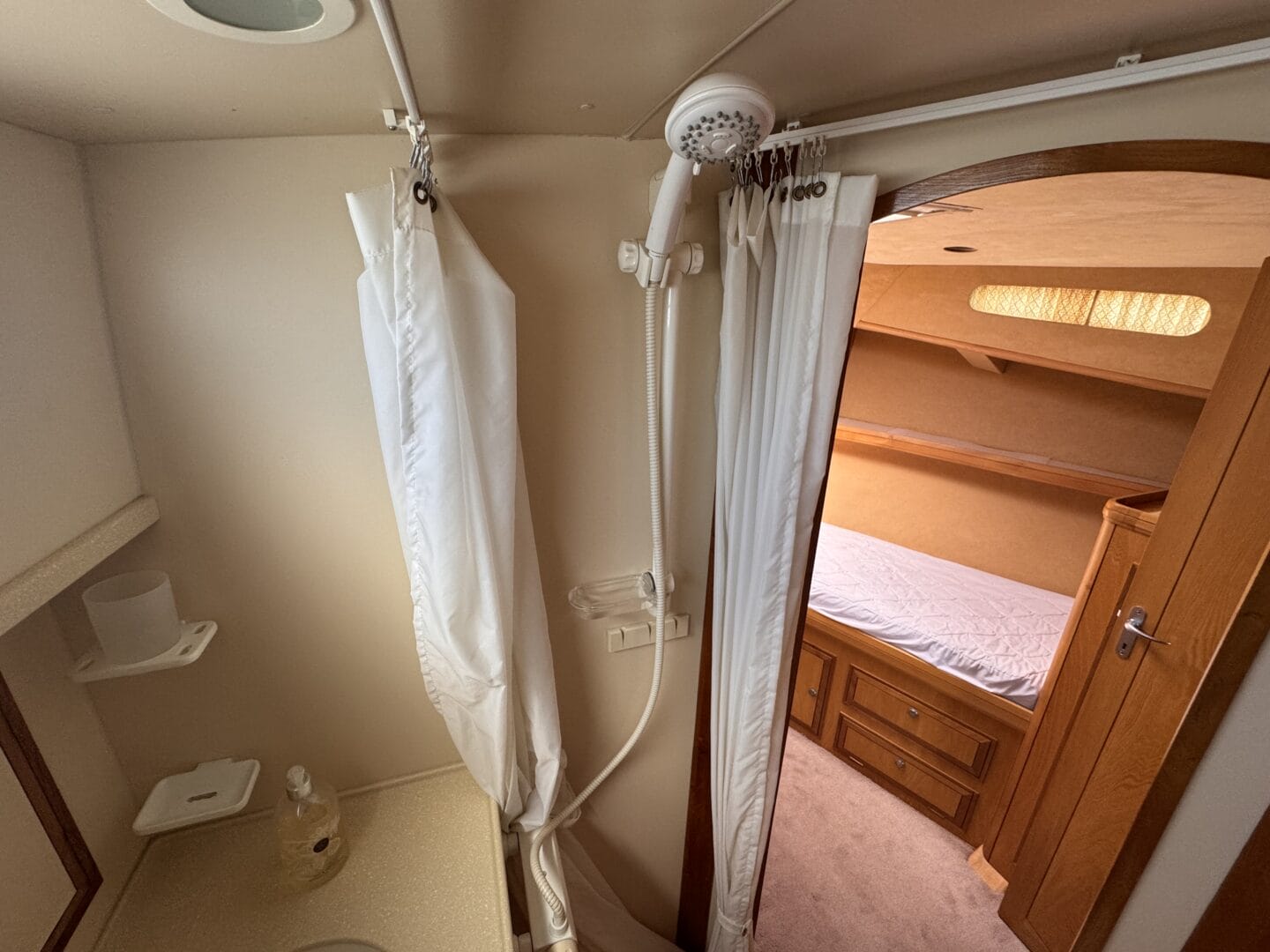

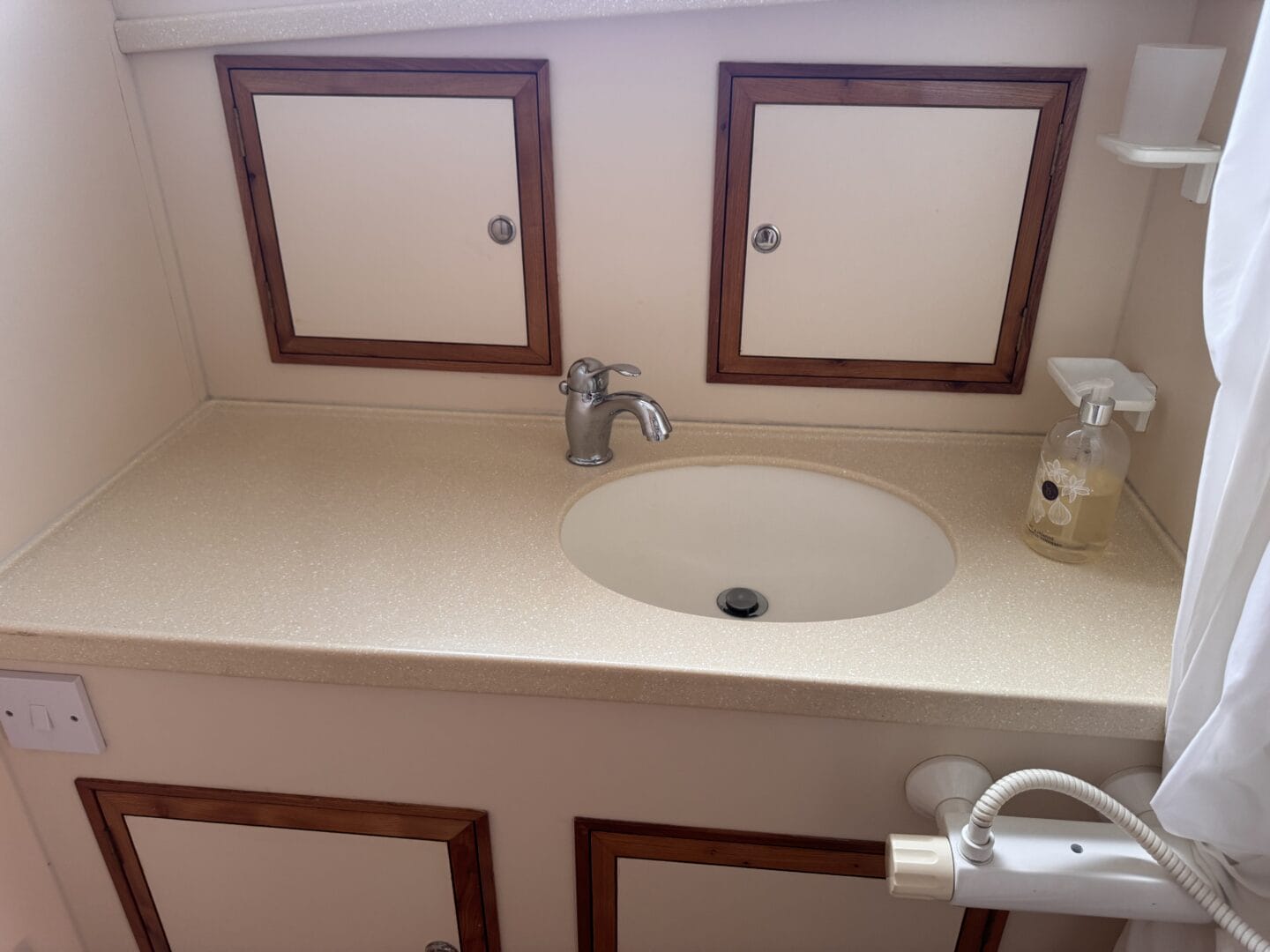

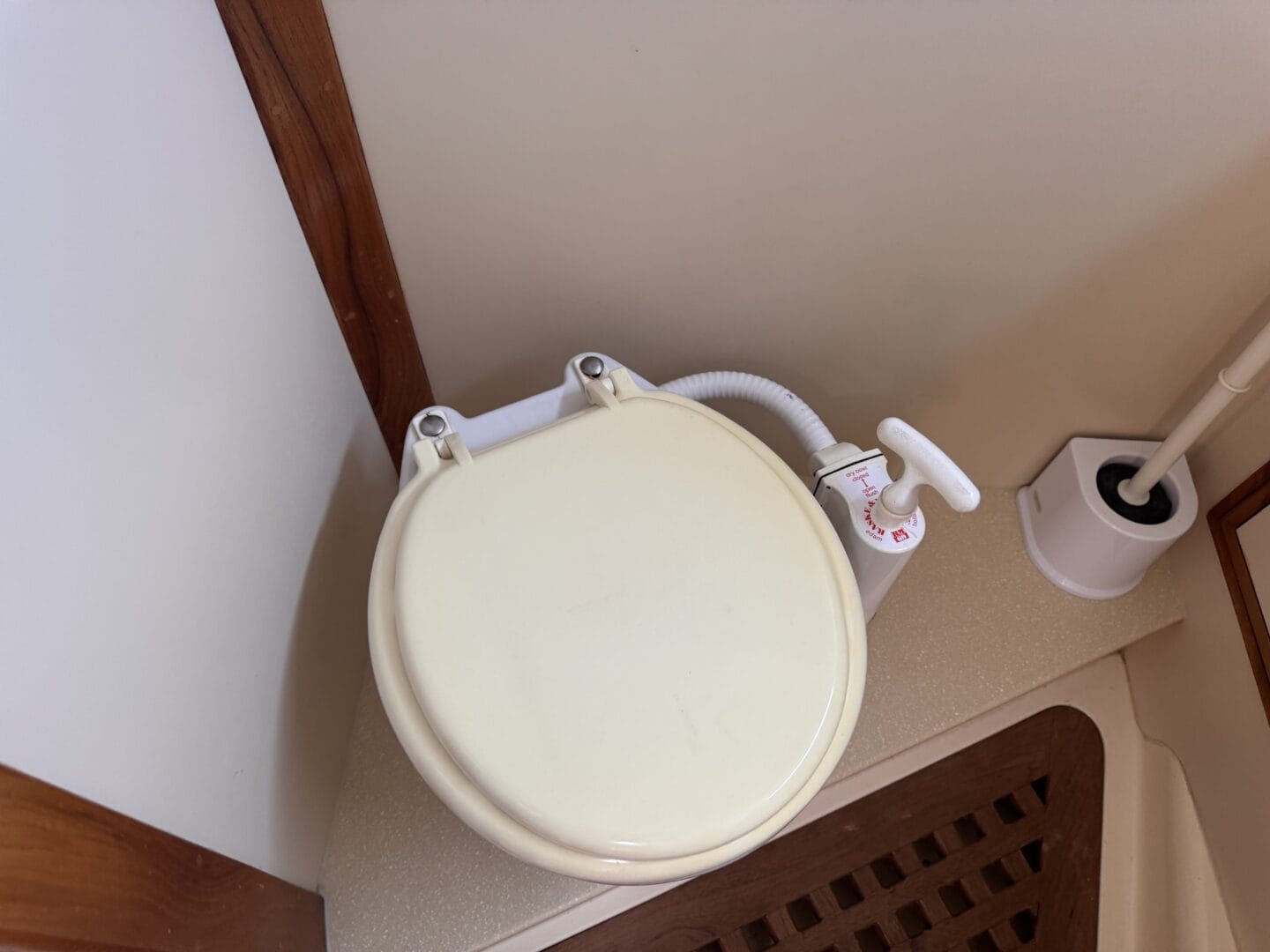

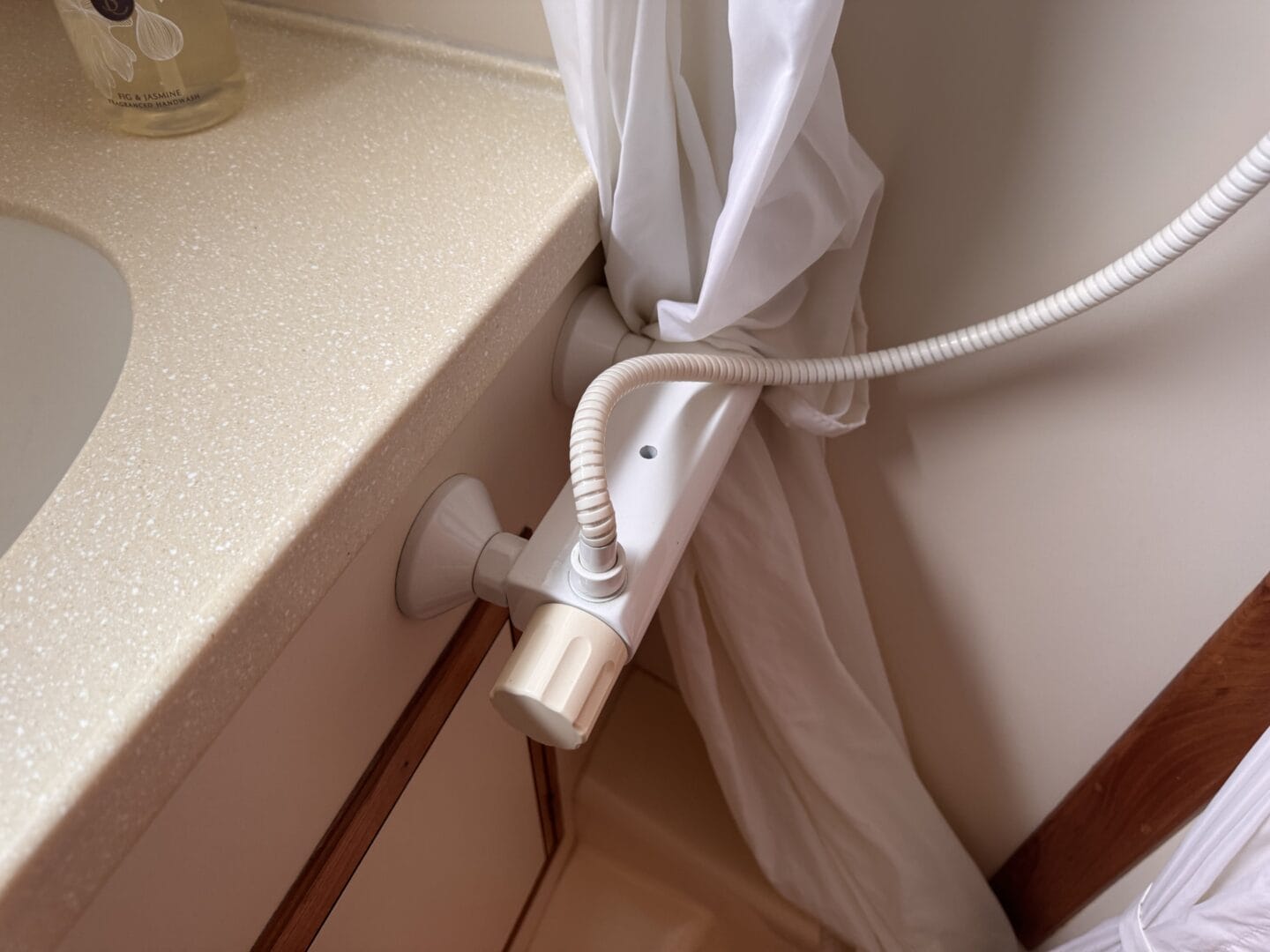

• With marine toilet, shower and basin with hot and cold water supply. Storage lockers.

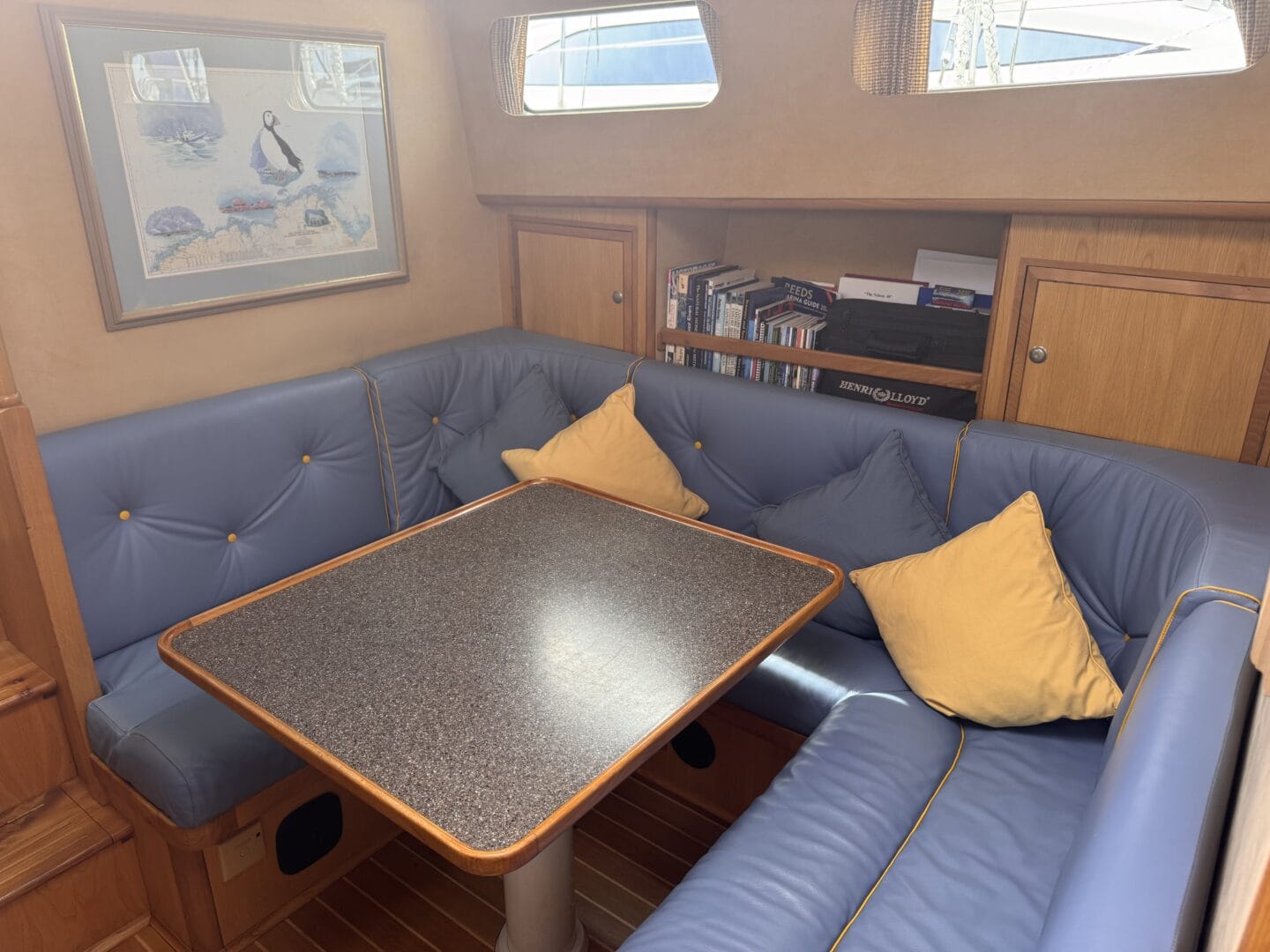

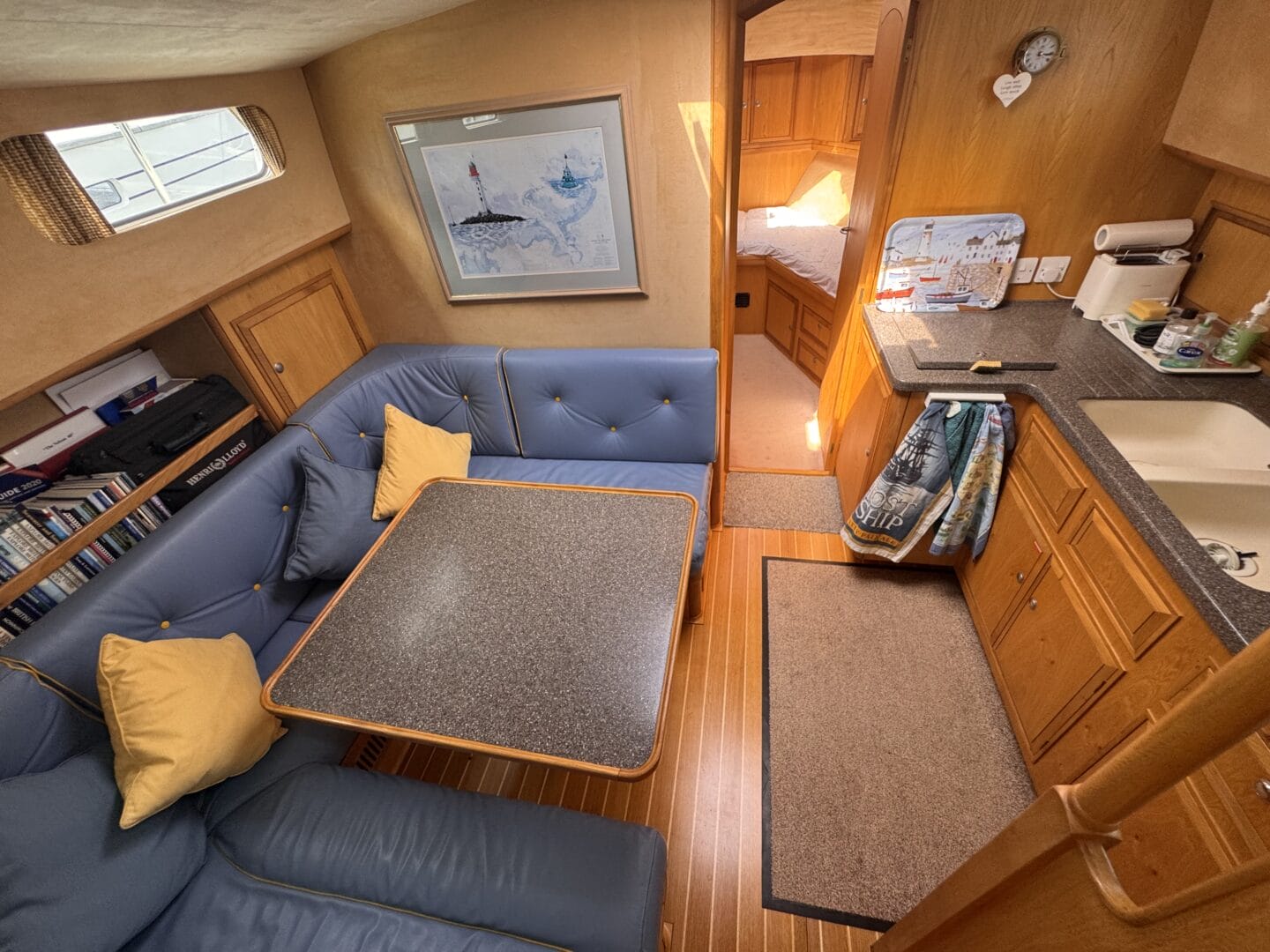

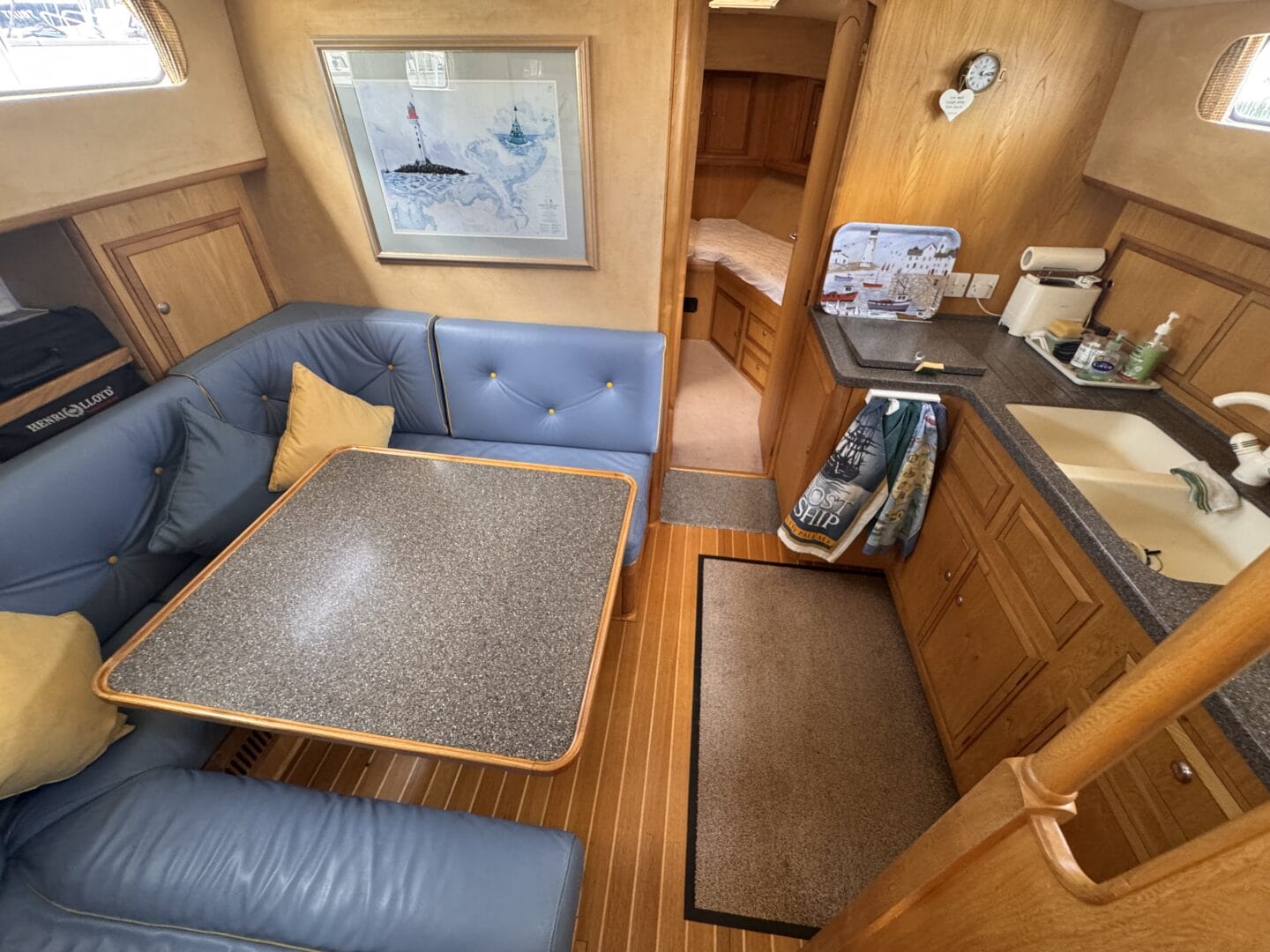

Dinette:

• With U-shaped seating and saloon table.

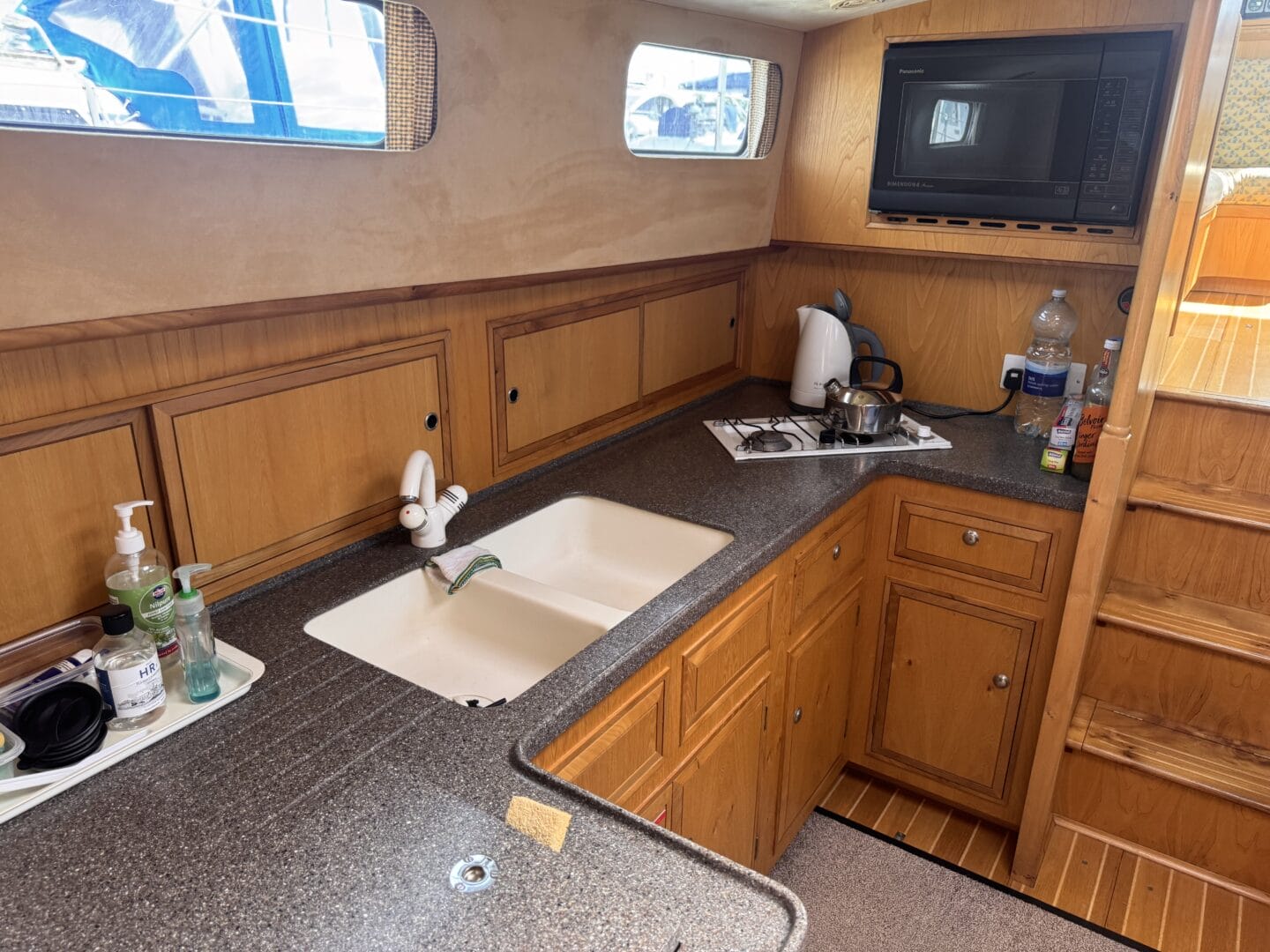

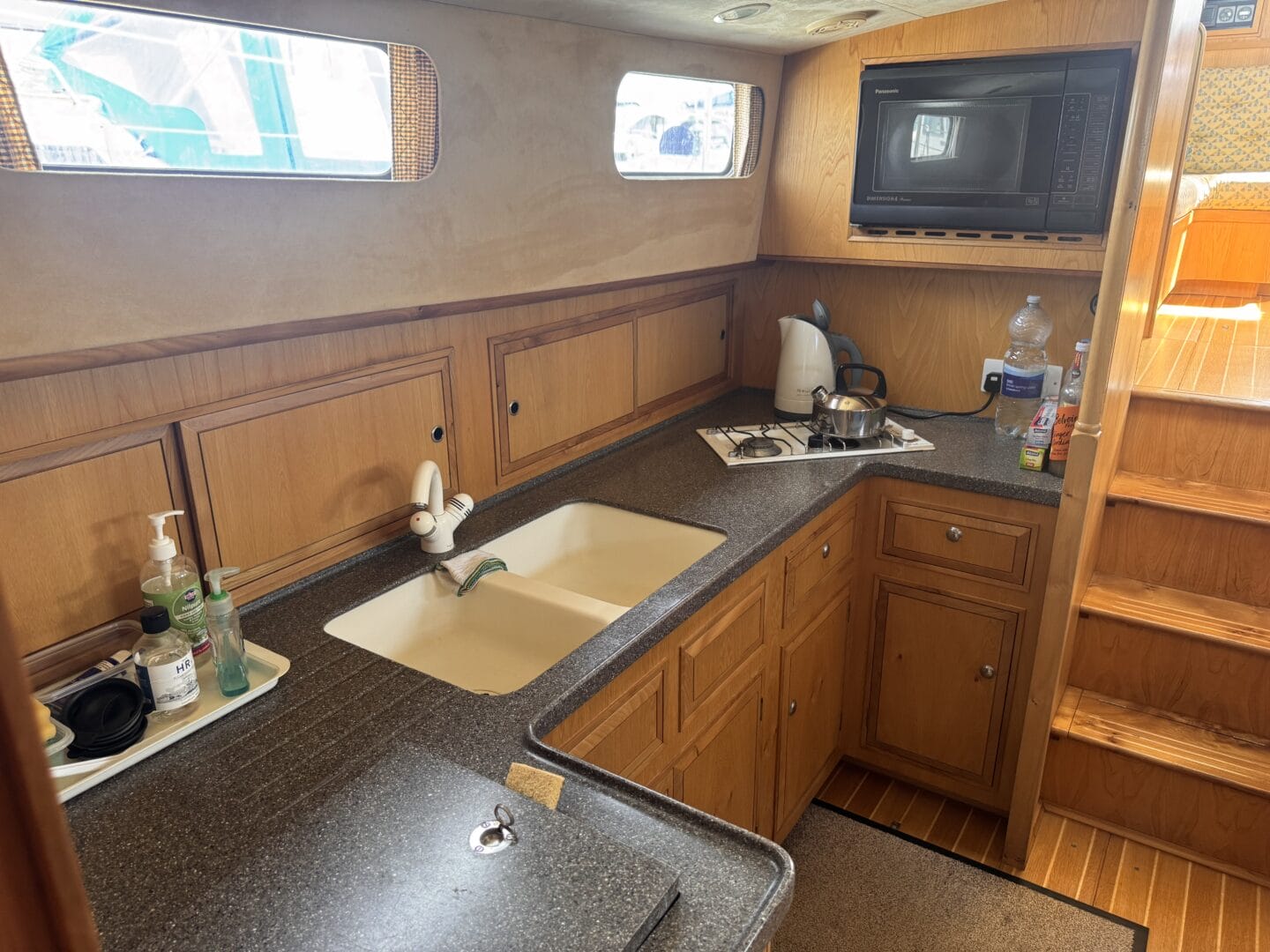

Galley:

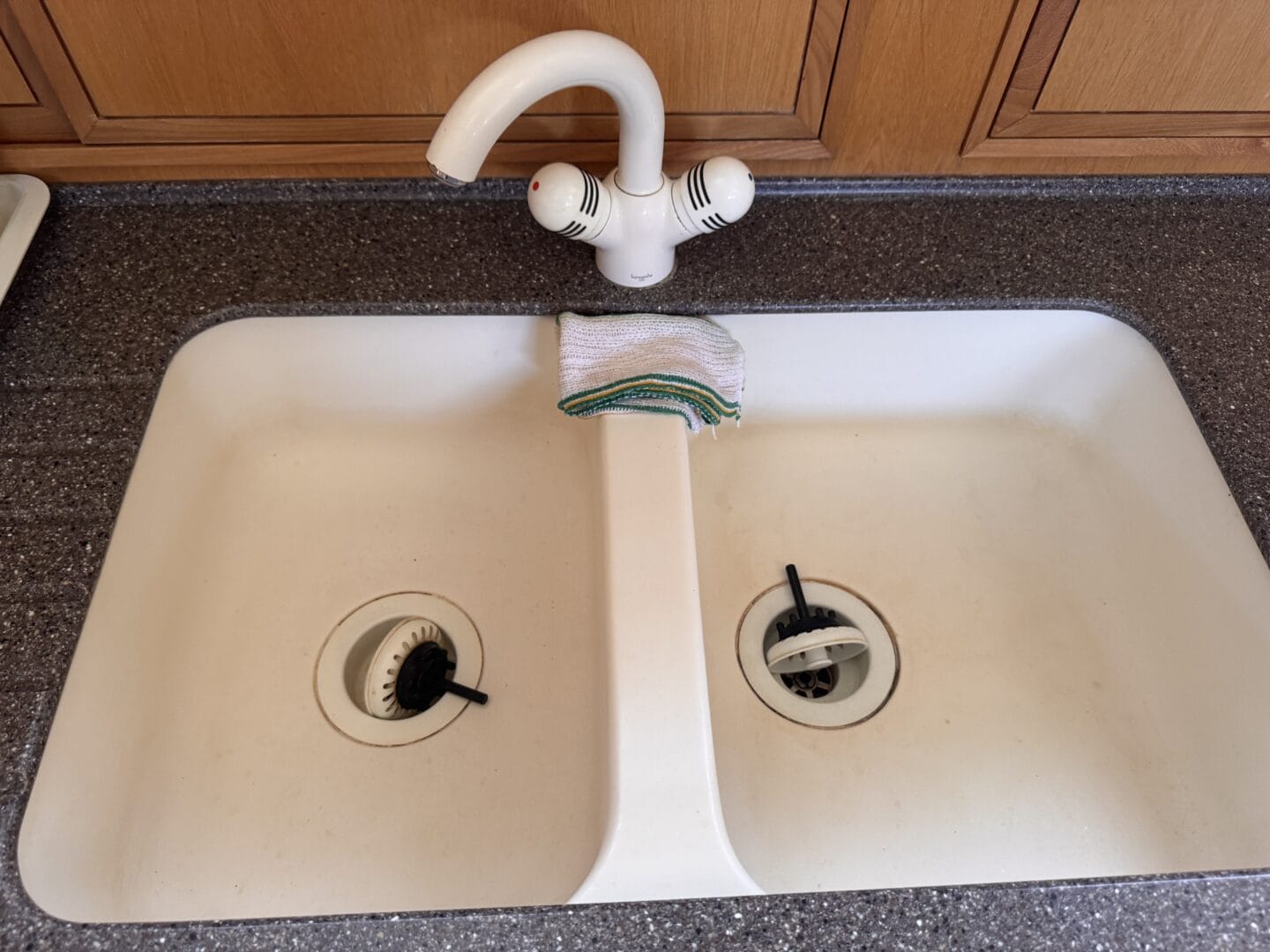

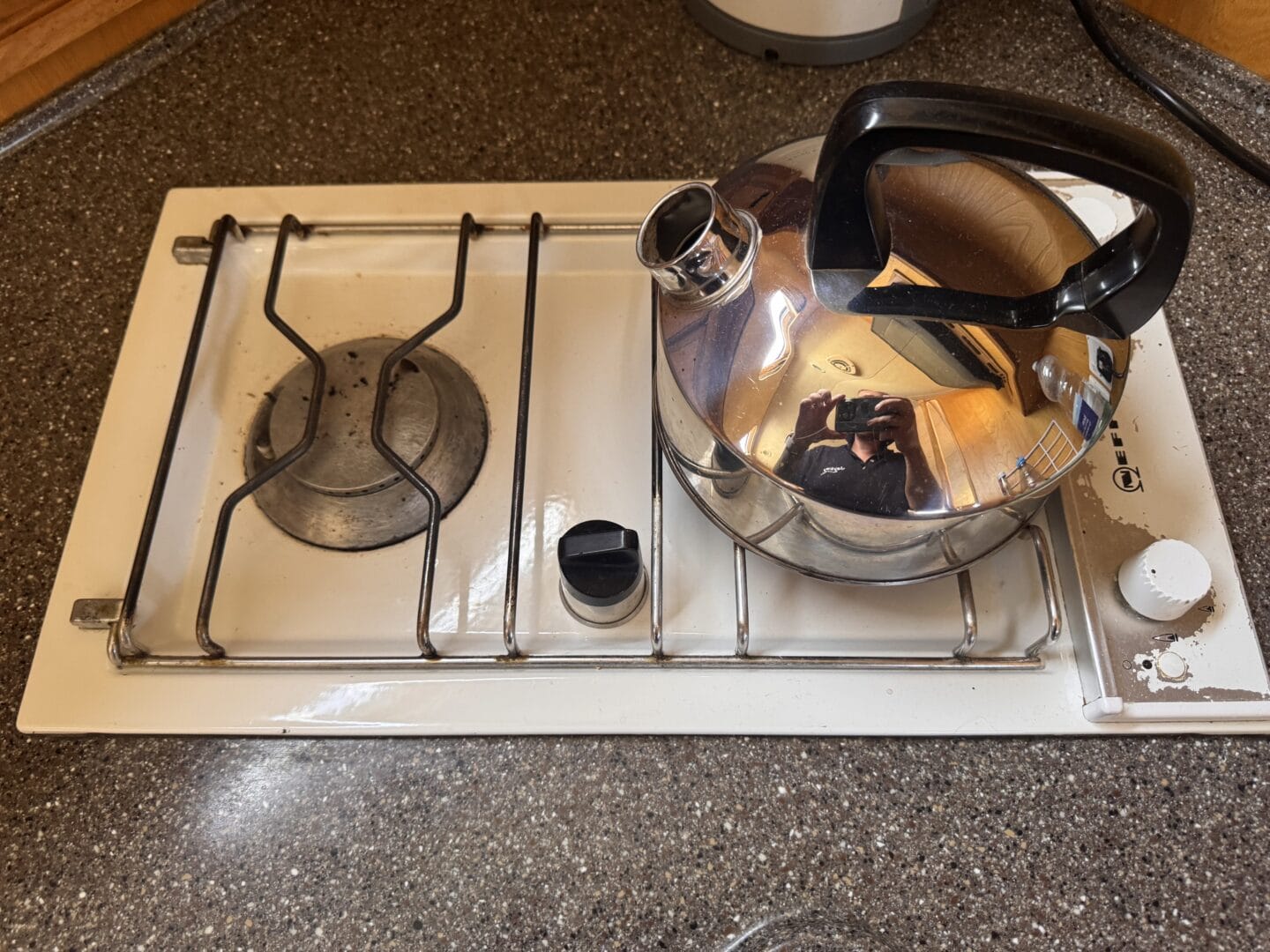

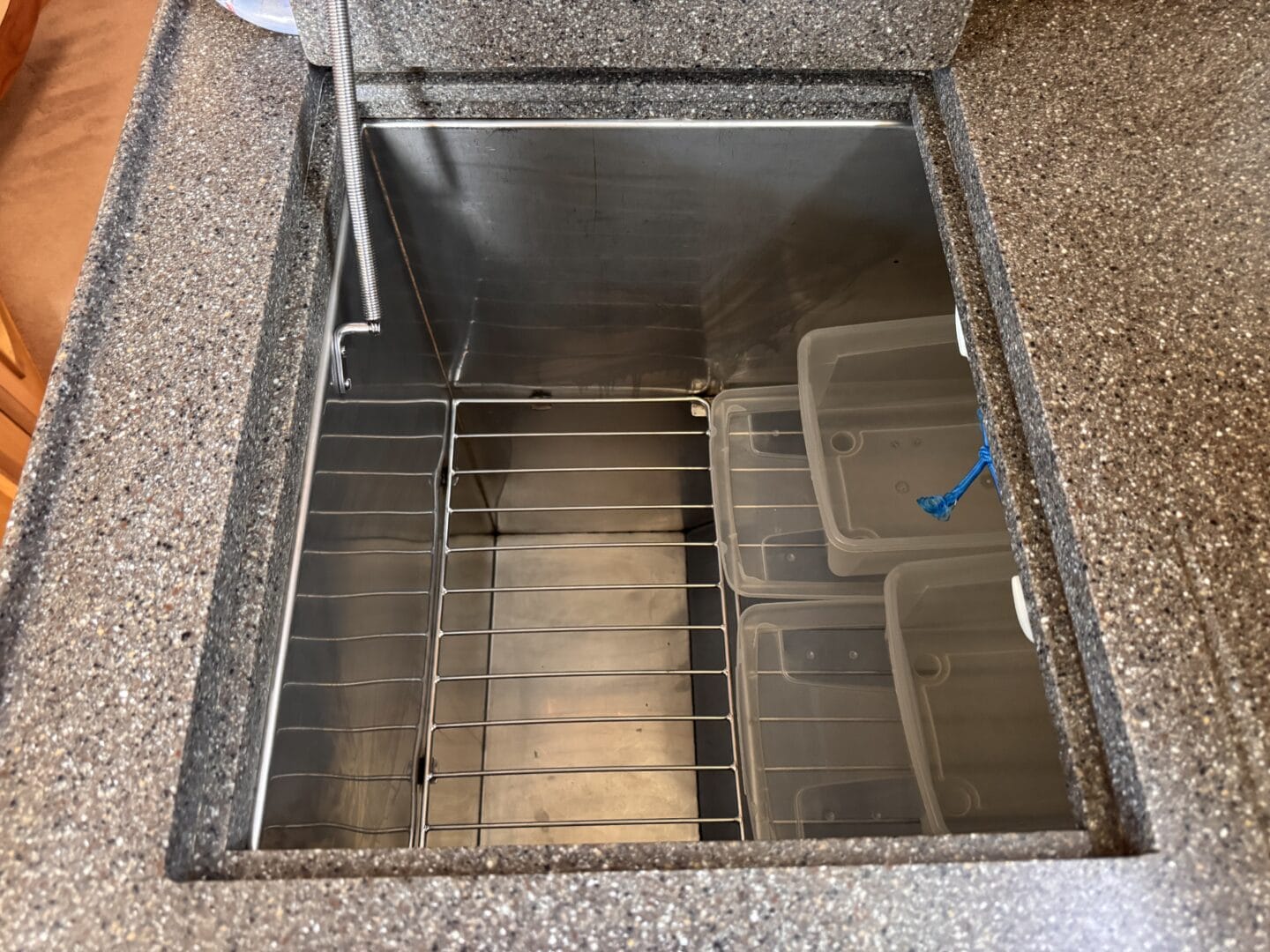

• With twin sinks. Panasonic Dimension 4 combination microwave oven. Neff two ring gas stove. Top loading refrigeration. Corian kitchen and table worktops.

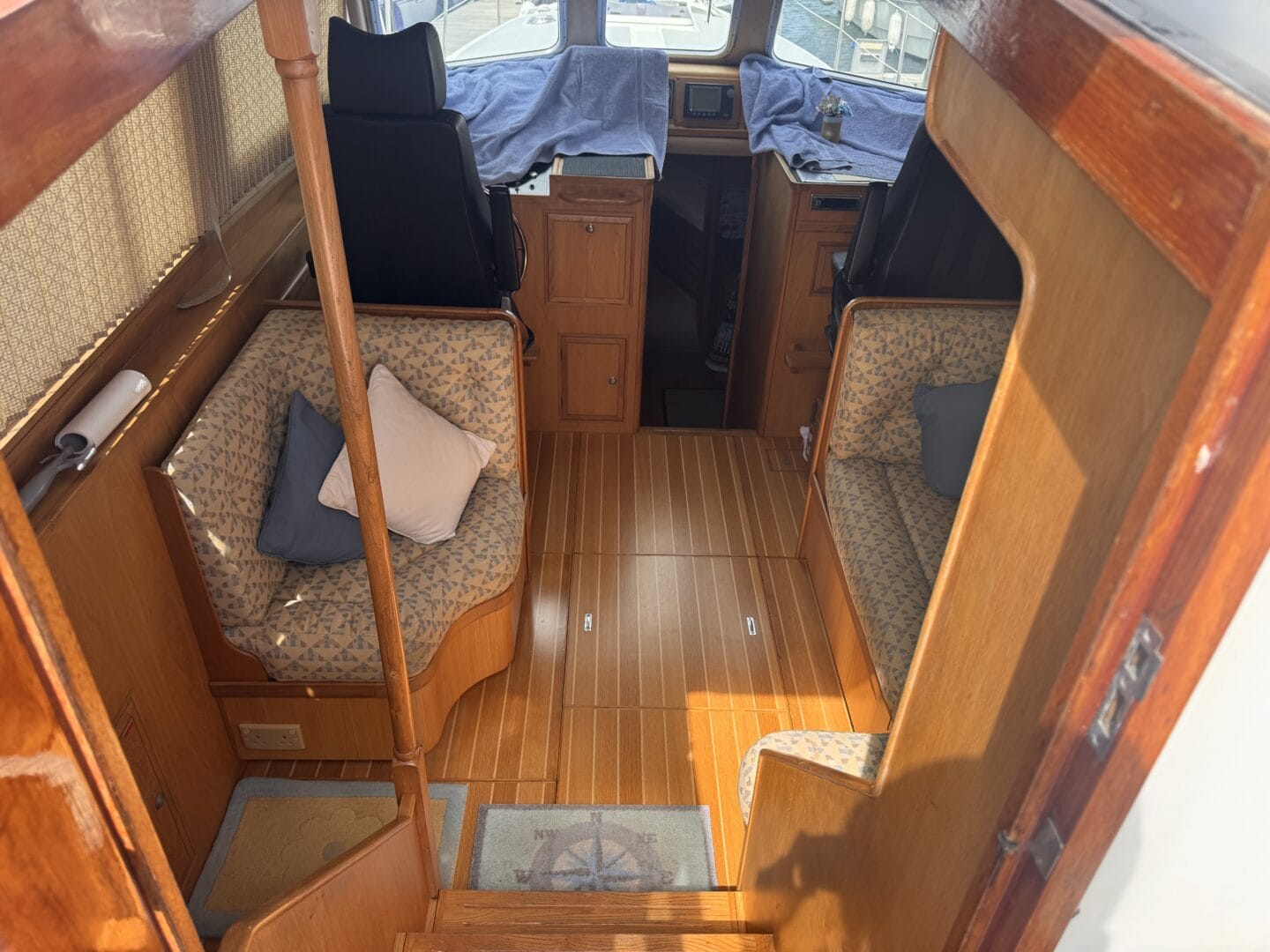

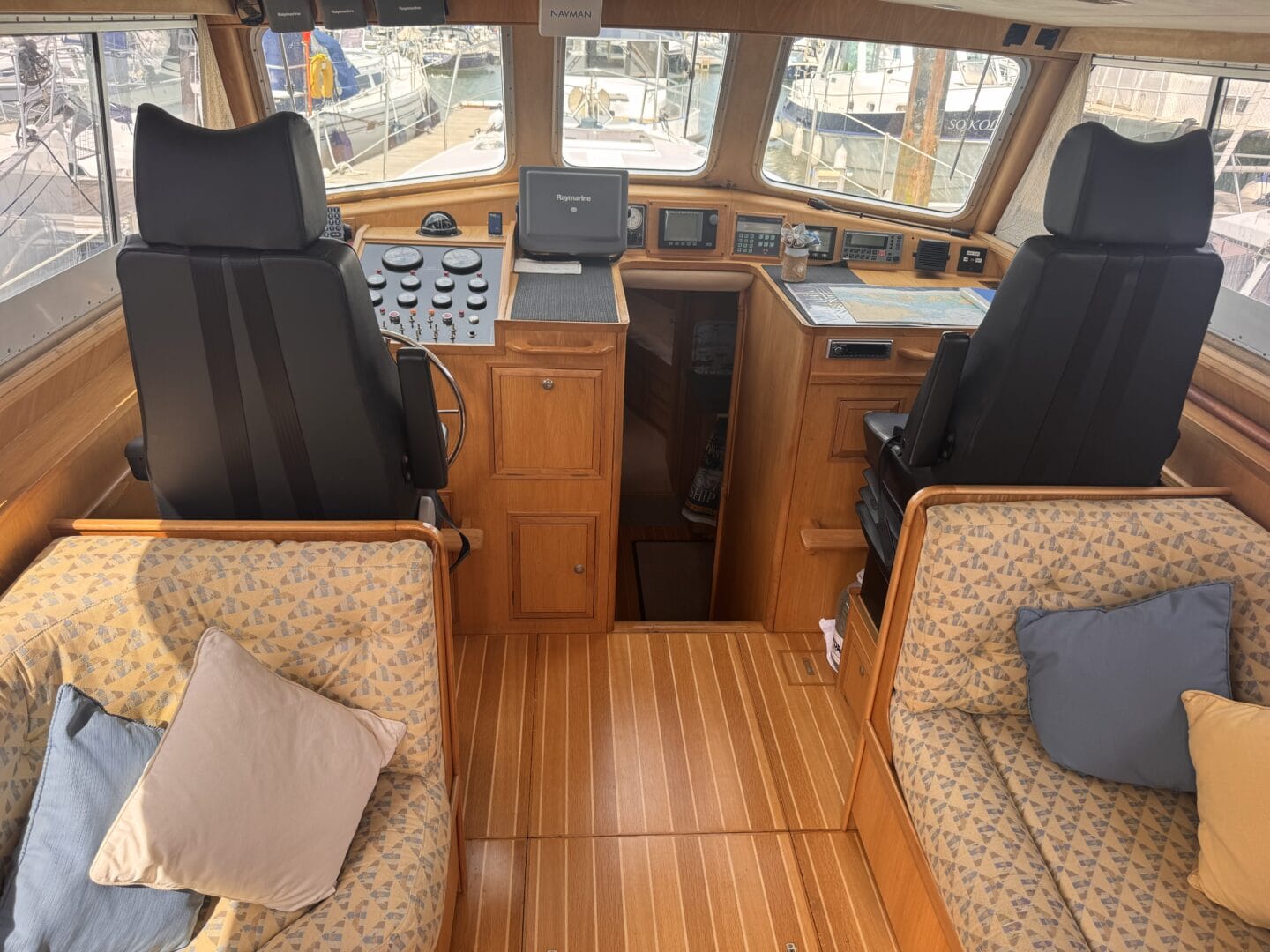

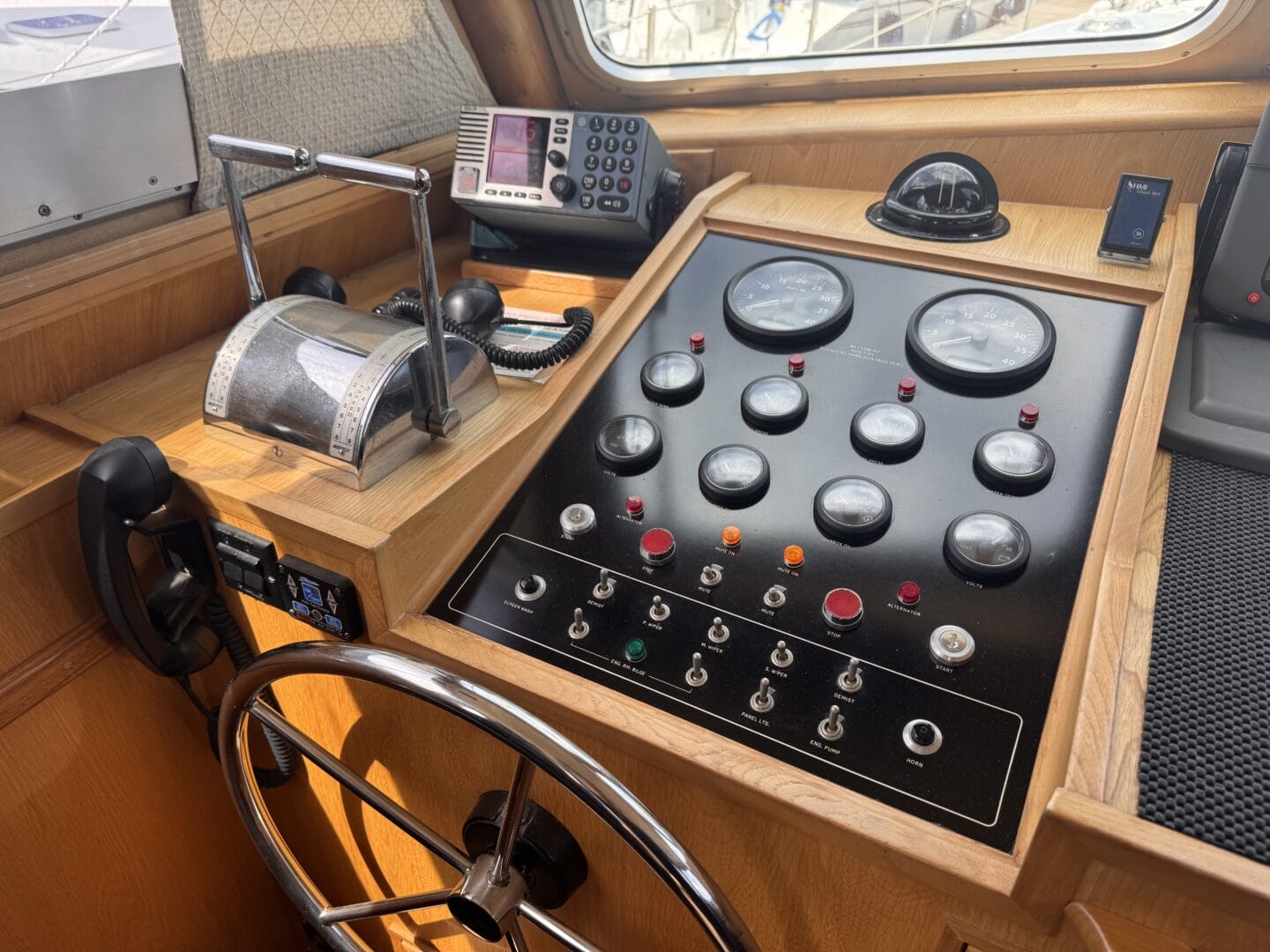

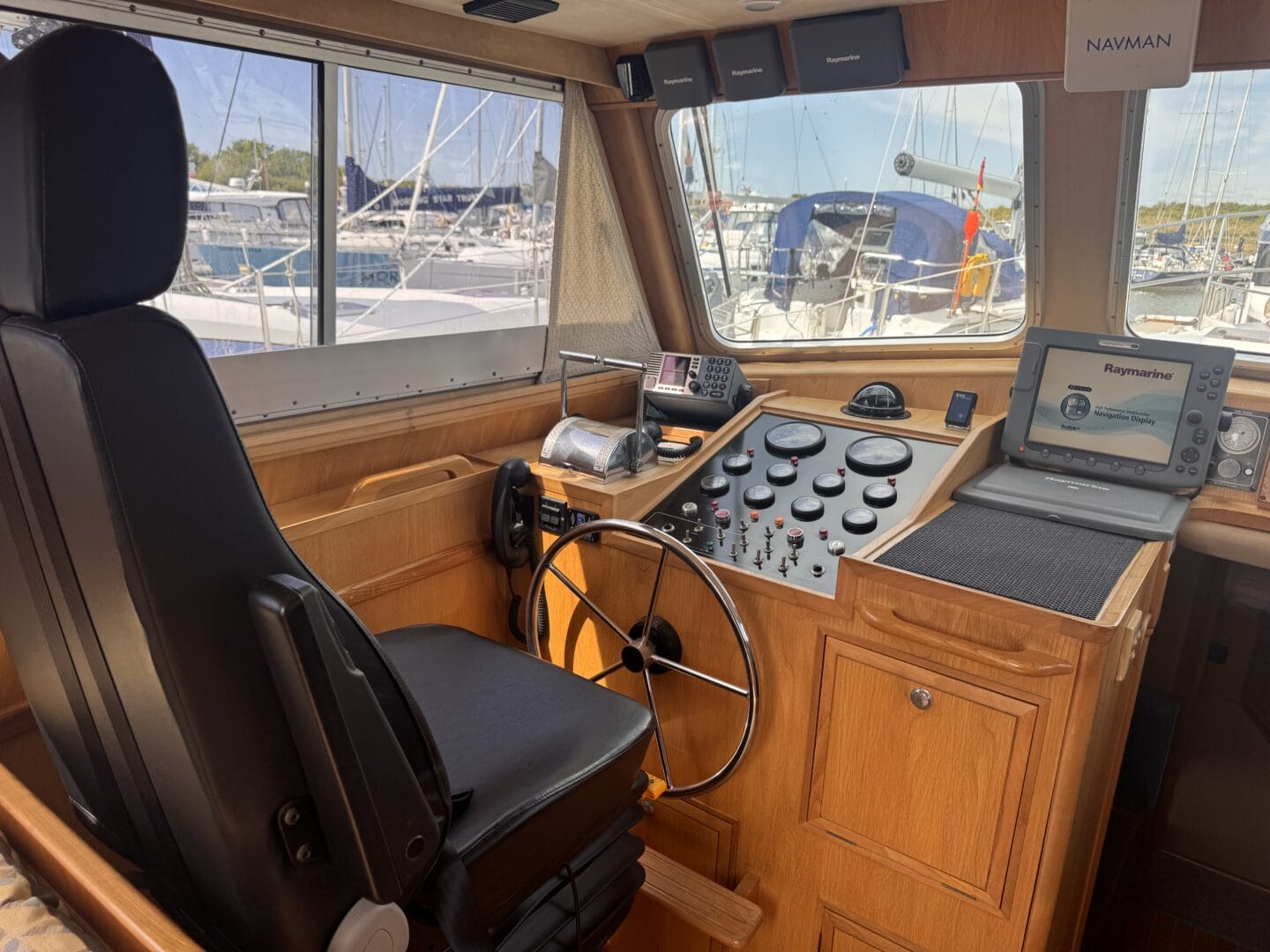

Helm Position in Deck Saloon:

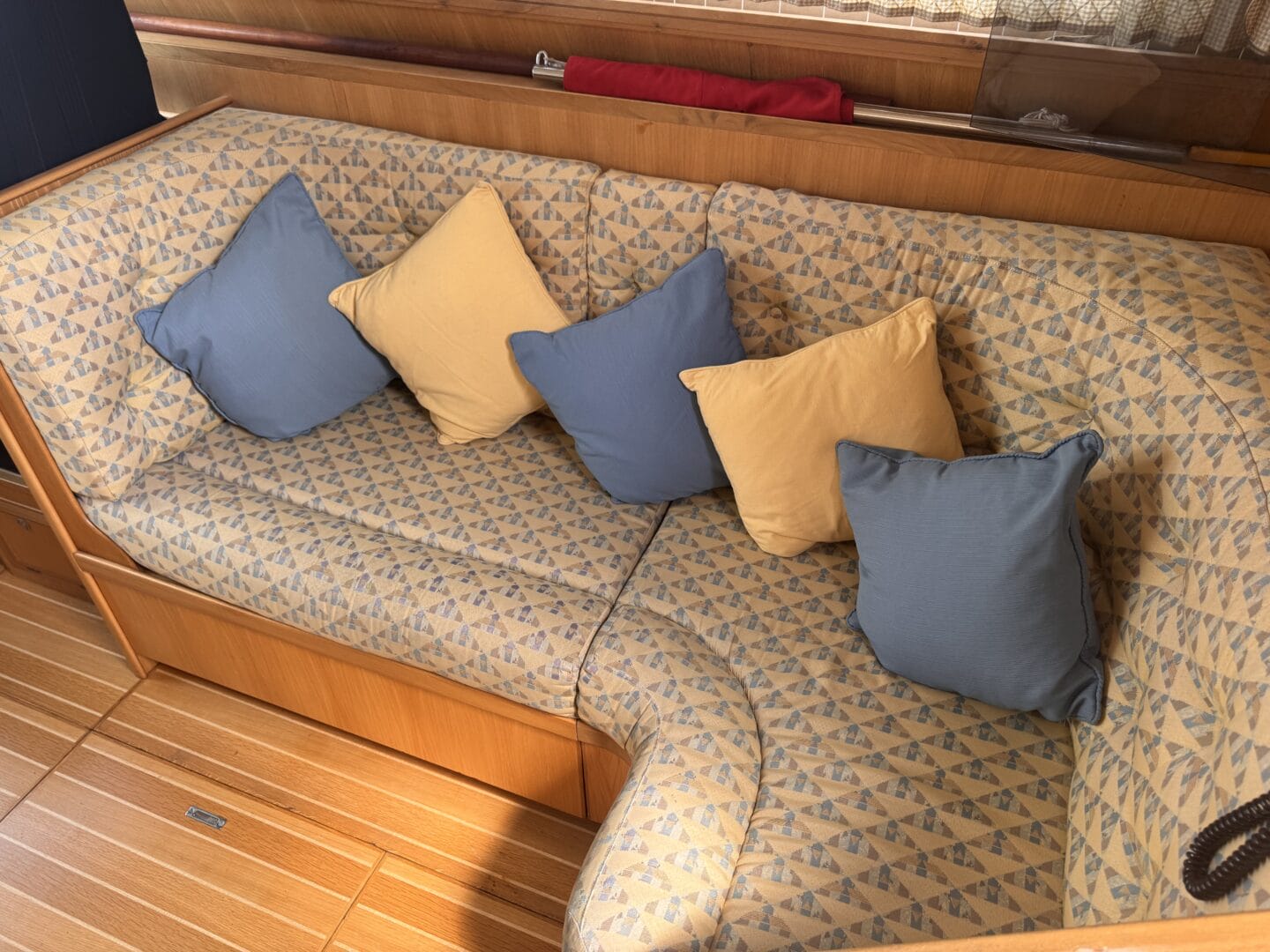

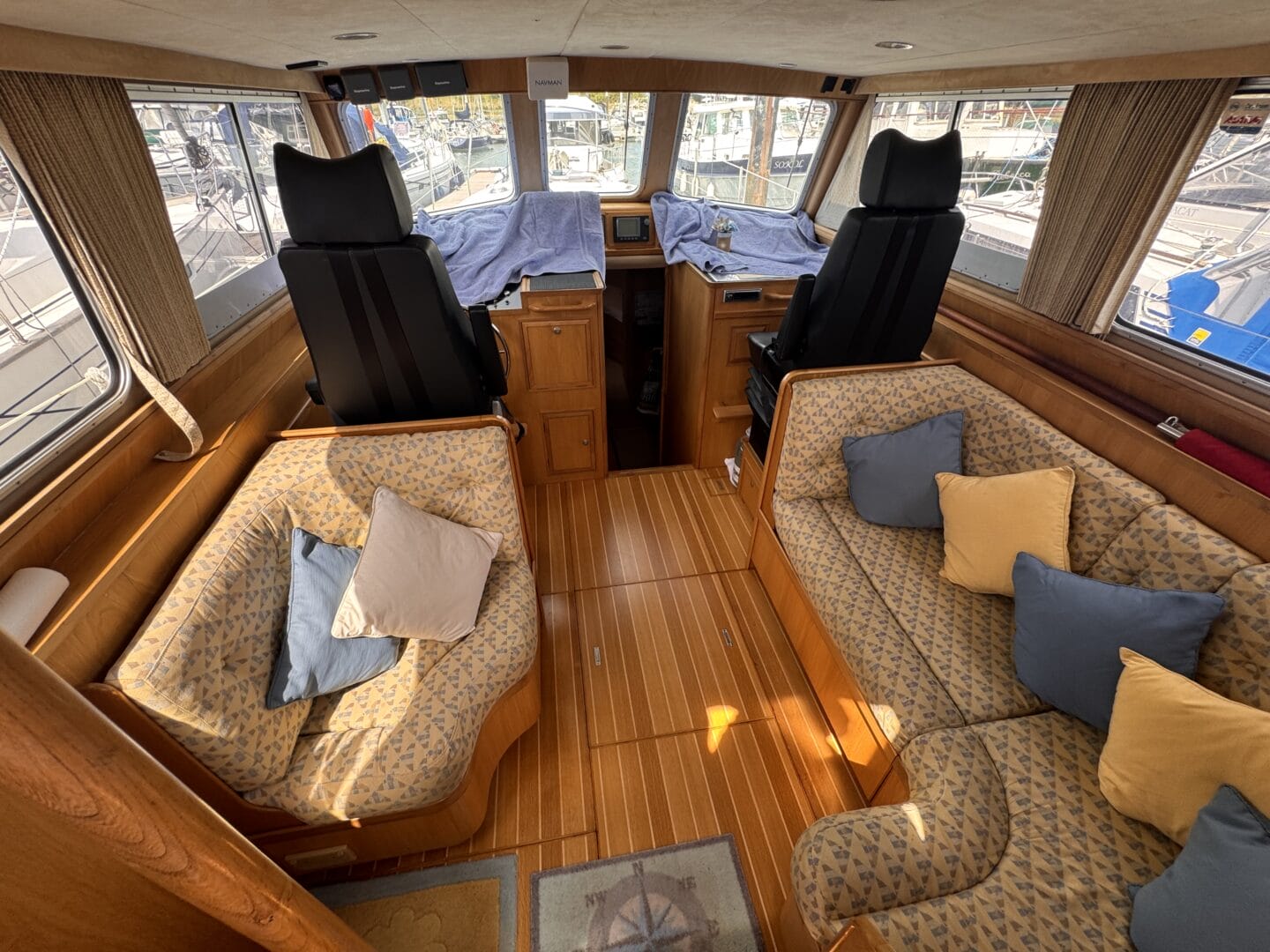

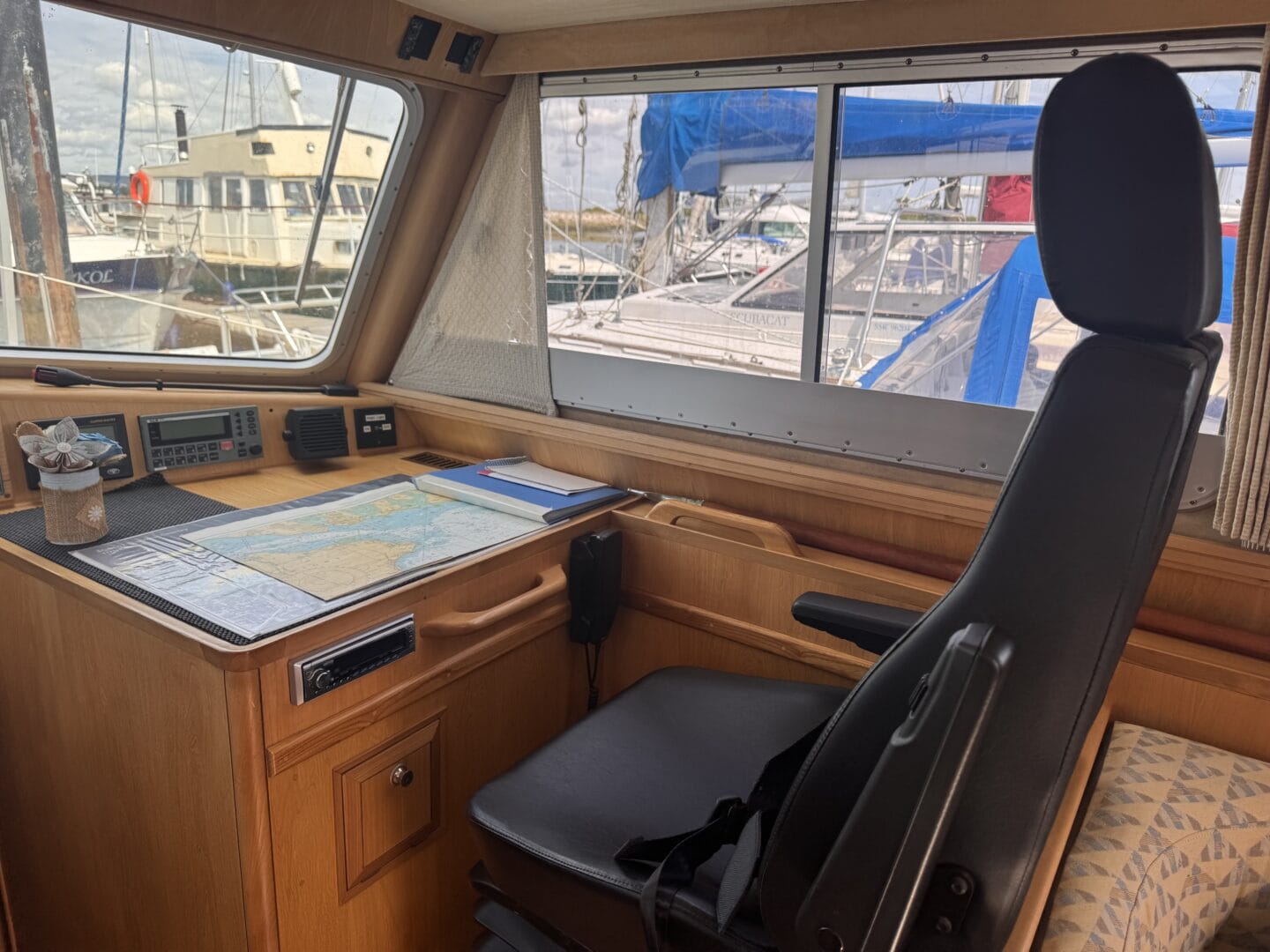

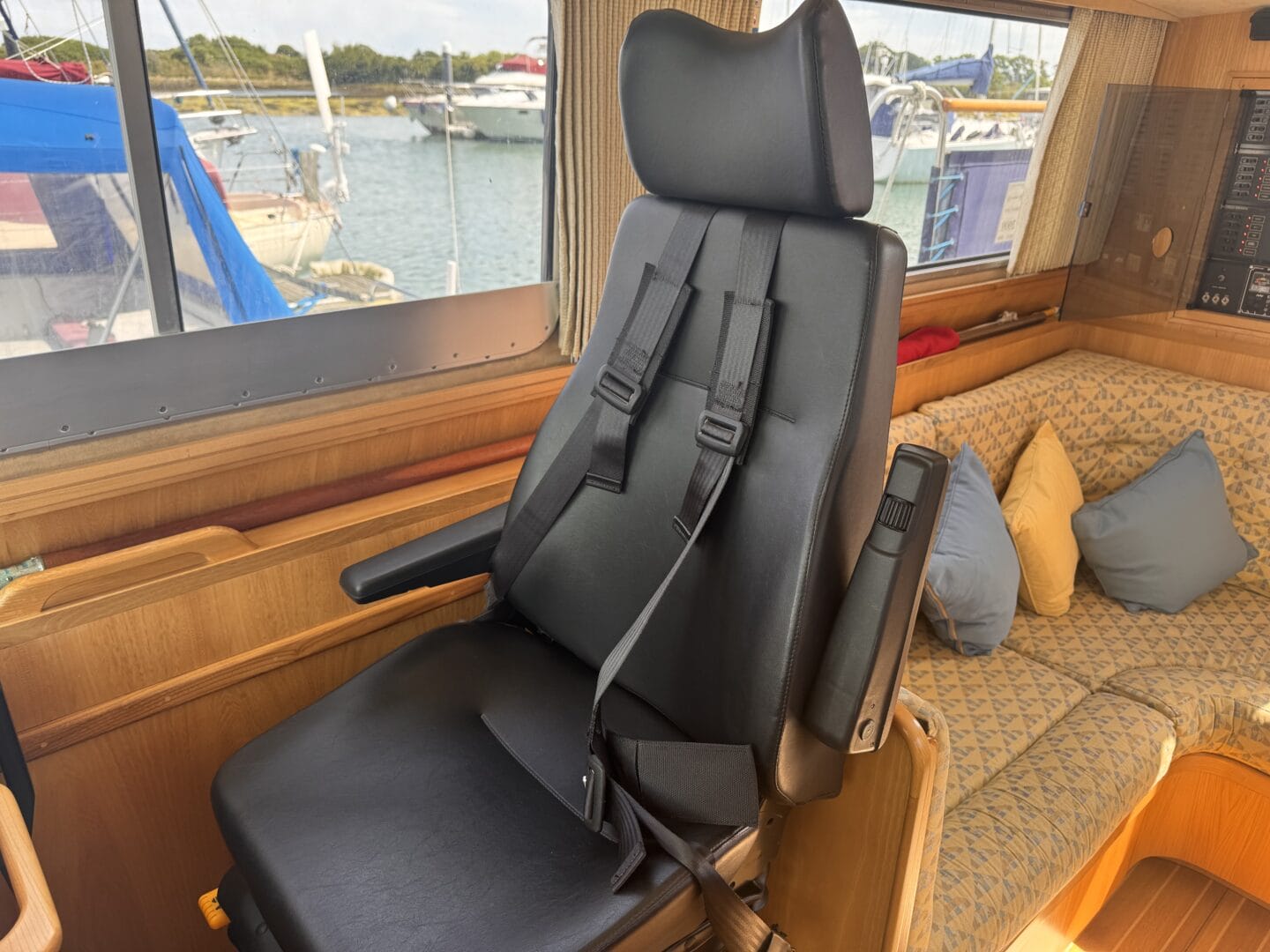

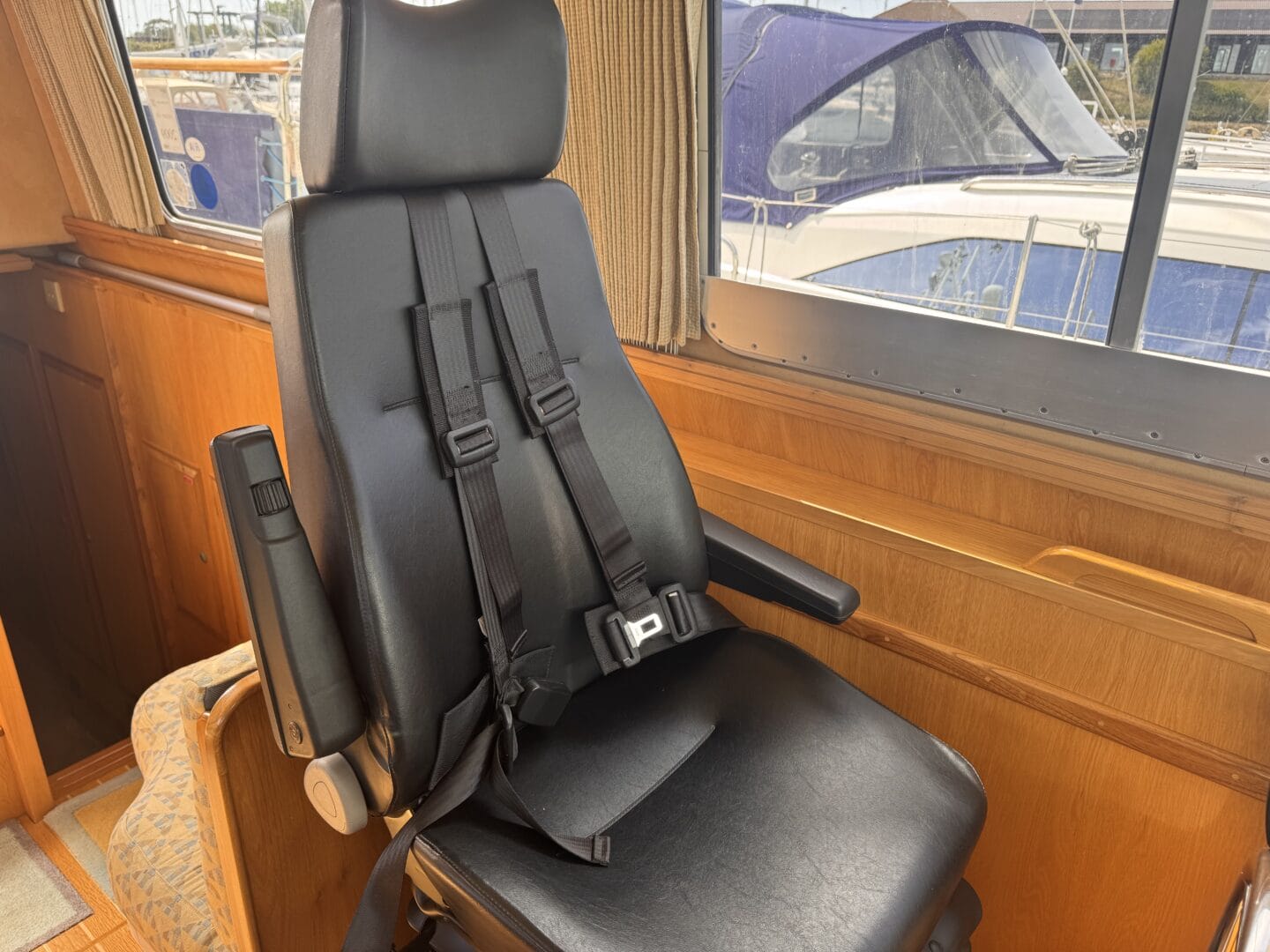

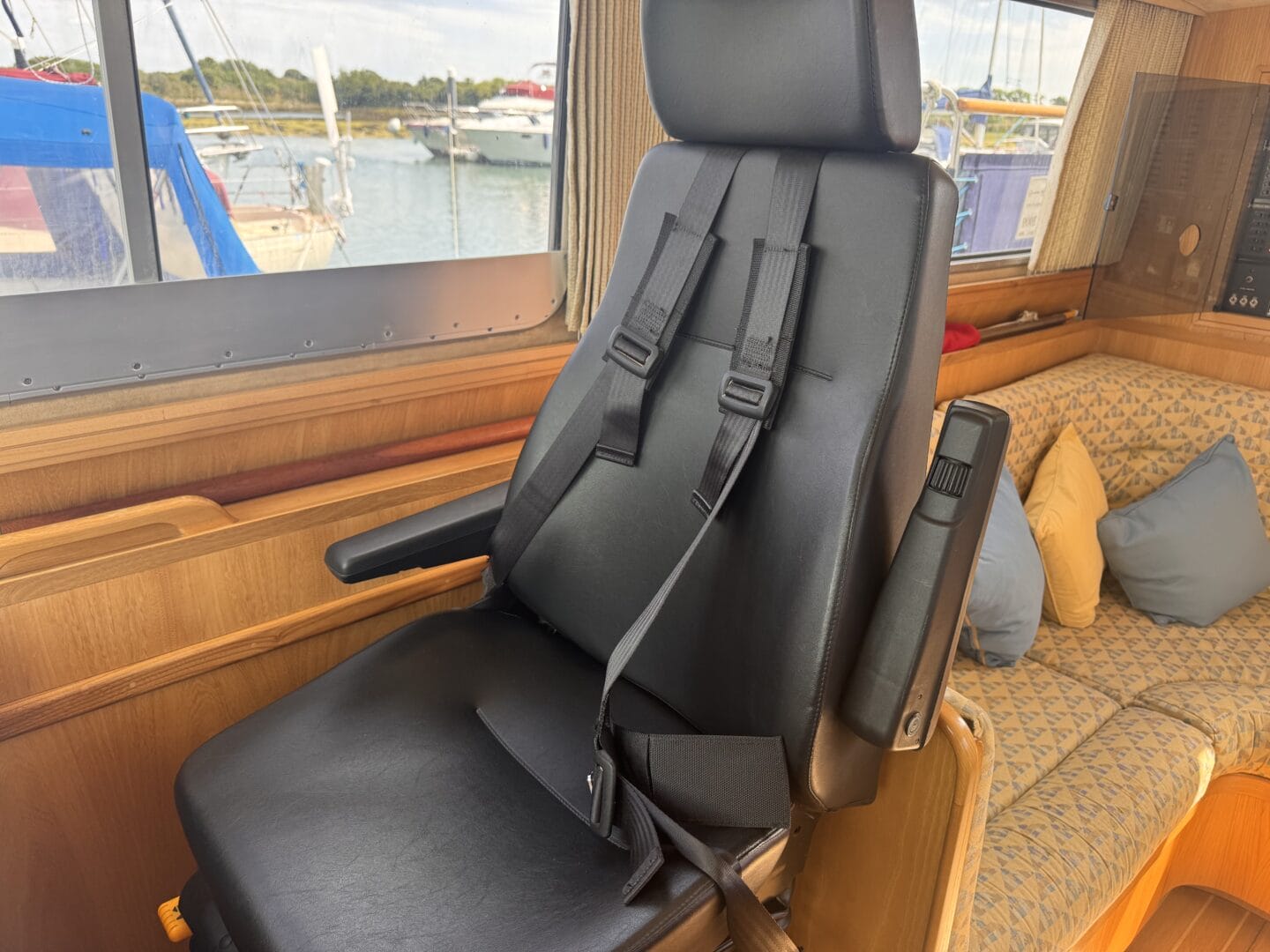

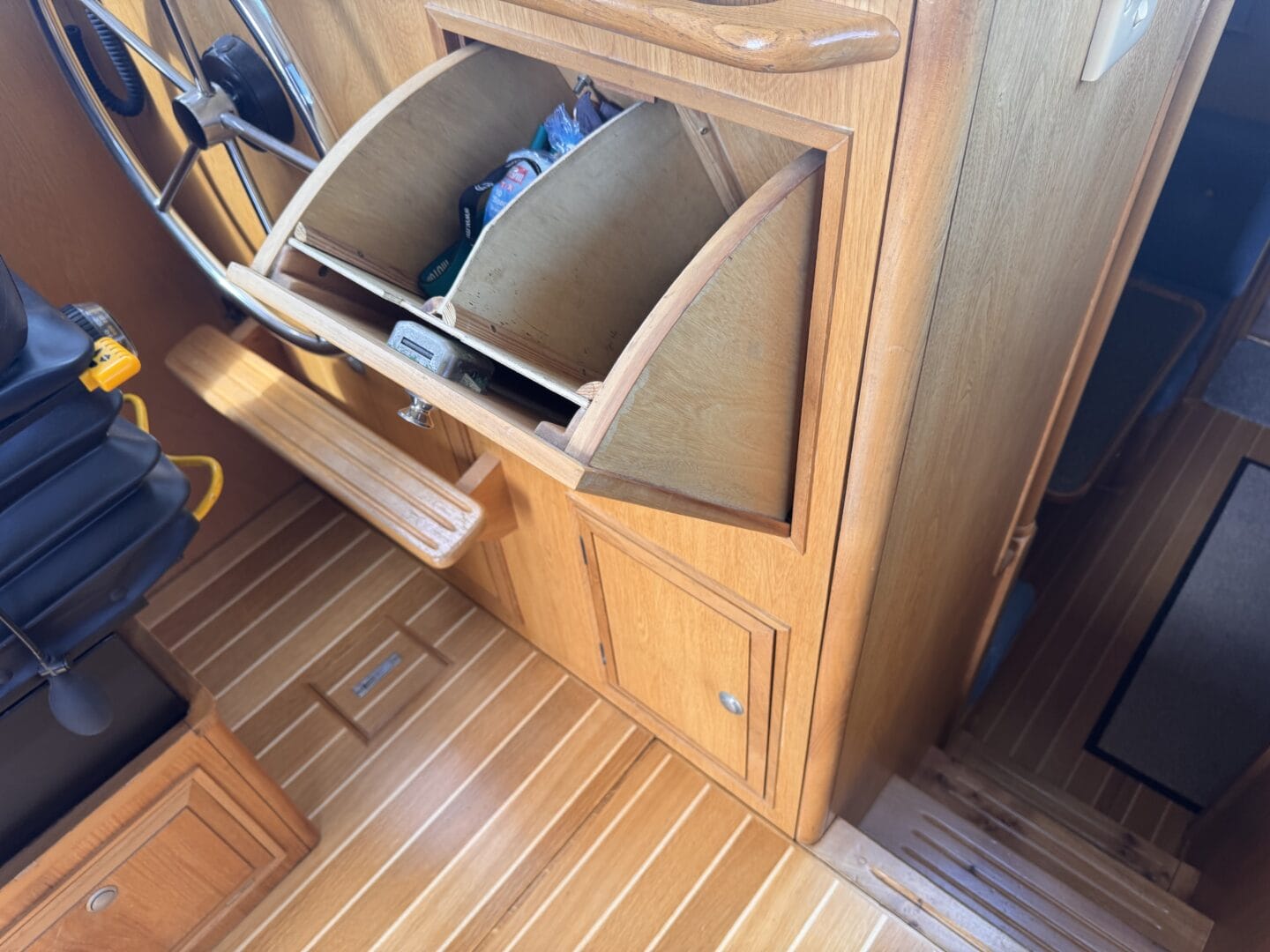

• With helm position to port. 2 x KAB 500 Series double clamper helm seats with 4 pt. fixed harnesses. Chart table. L shaped settee berth. Single saloon seat.

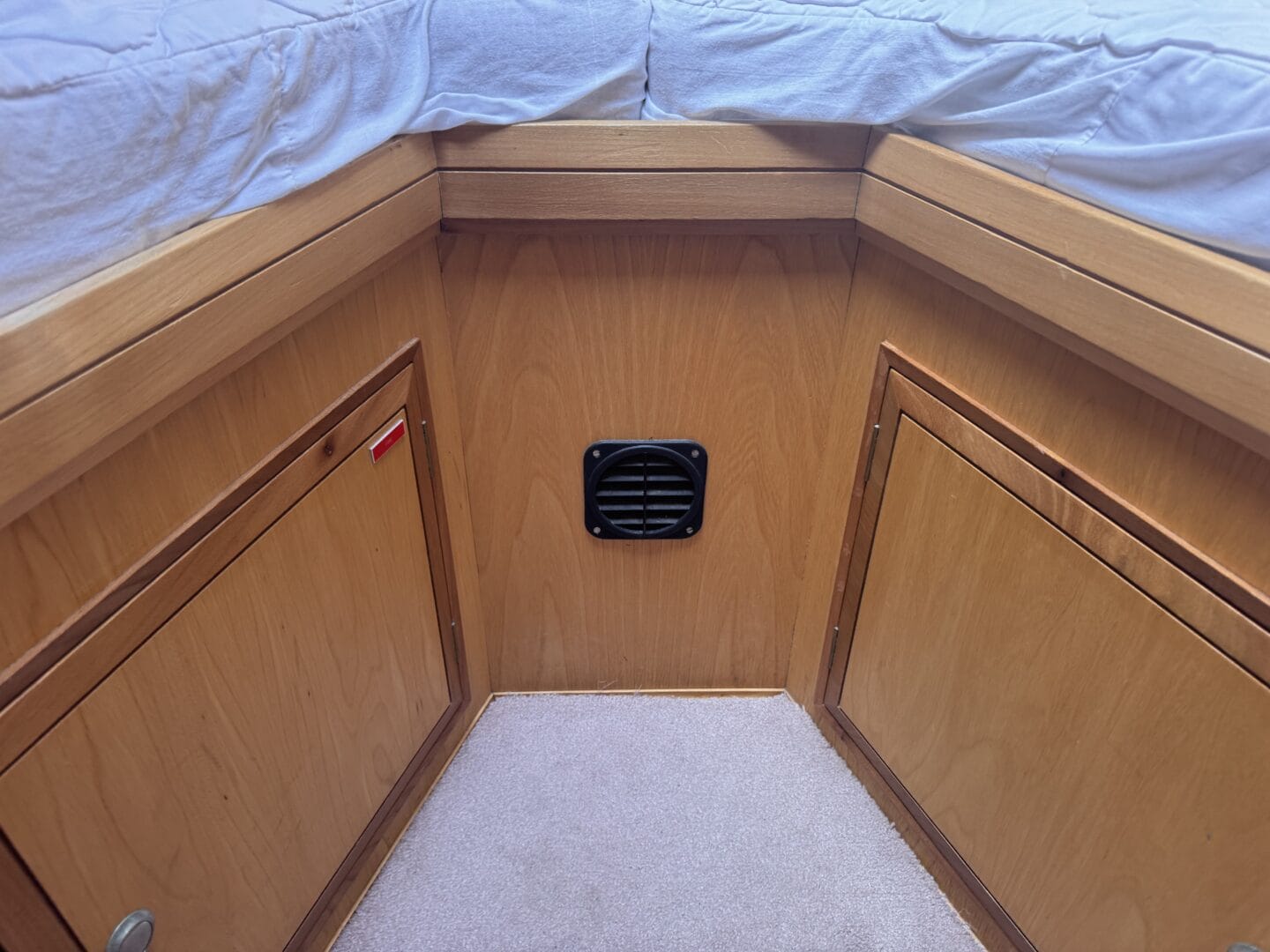

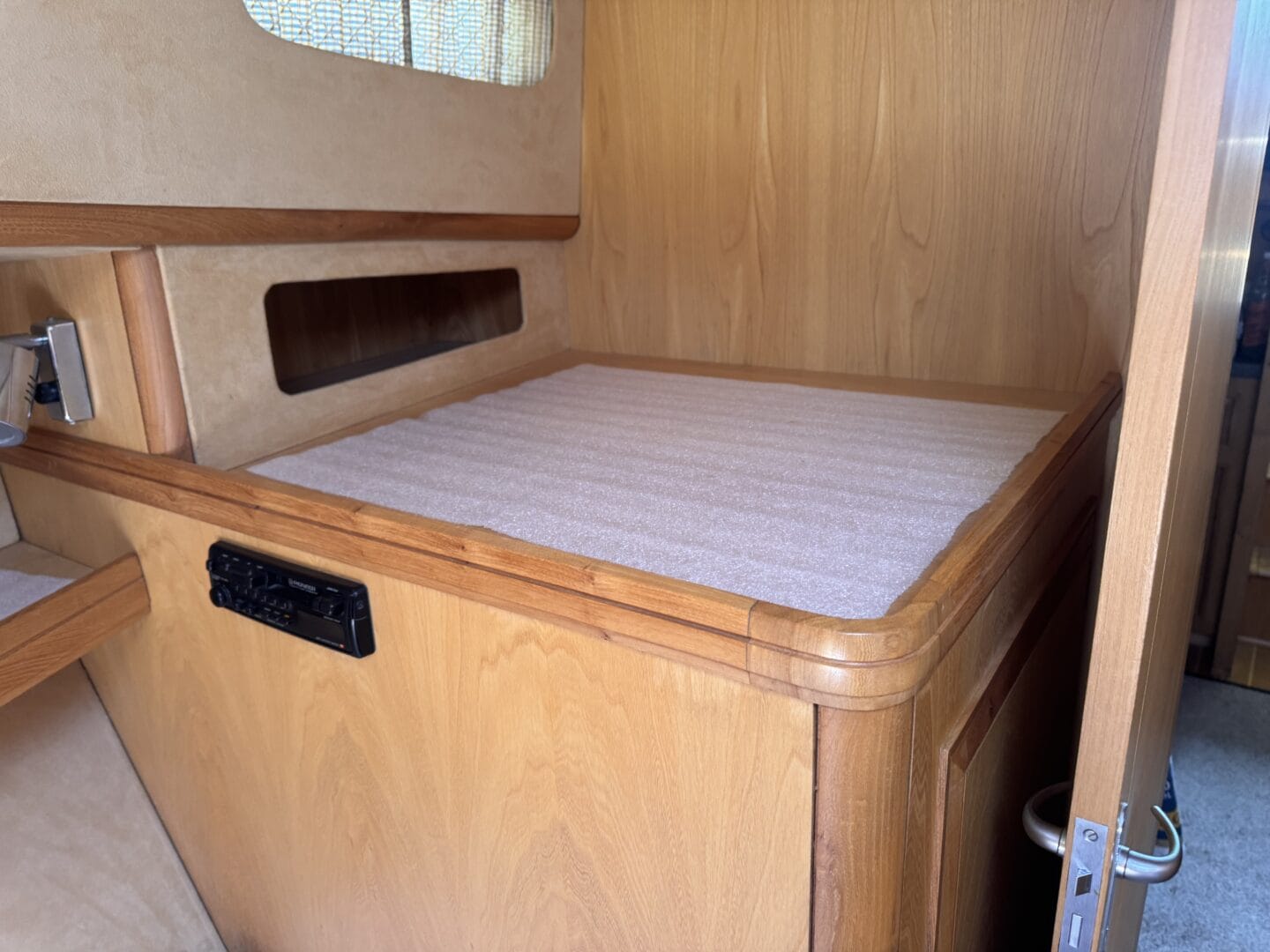

Aft Cabin:

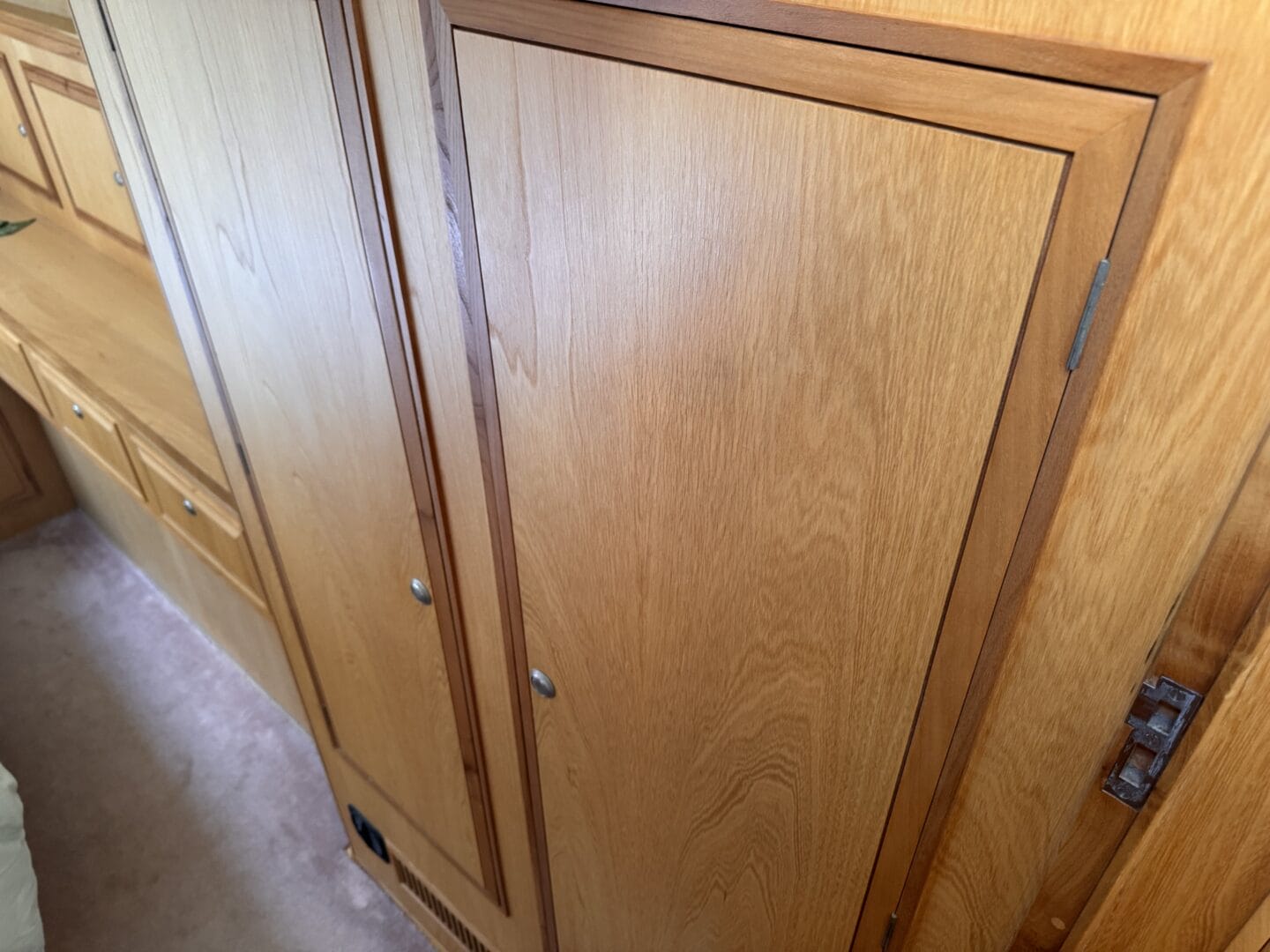

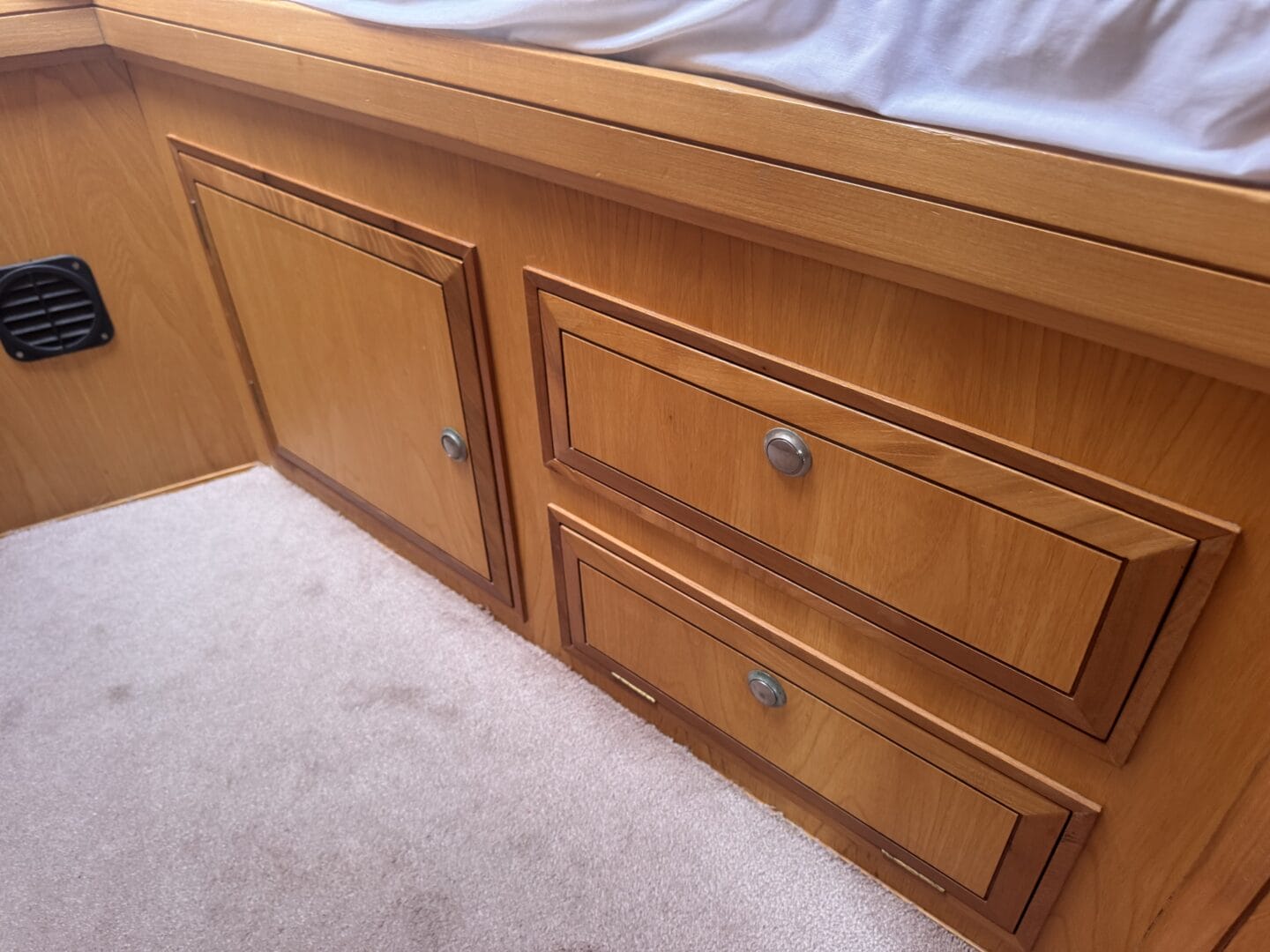

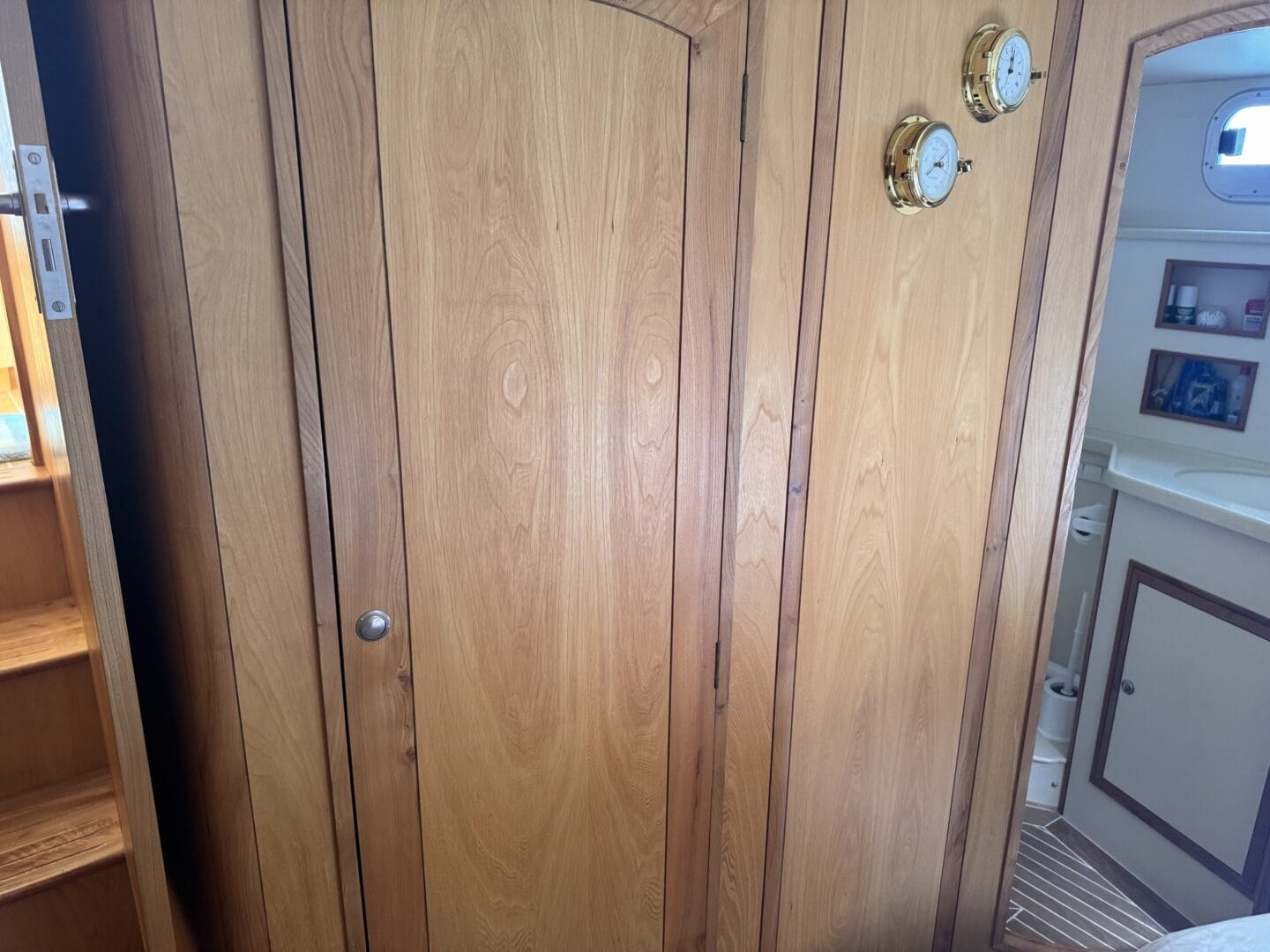

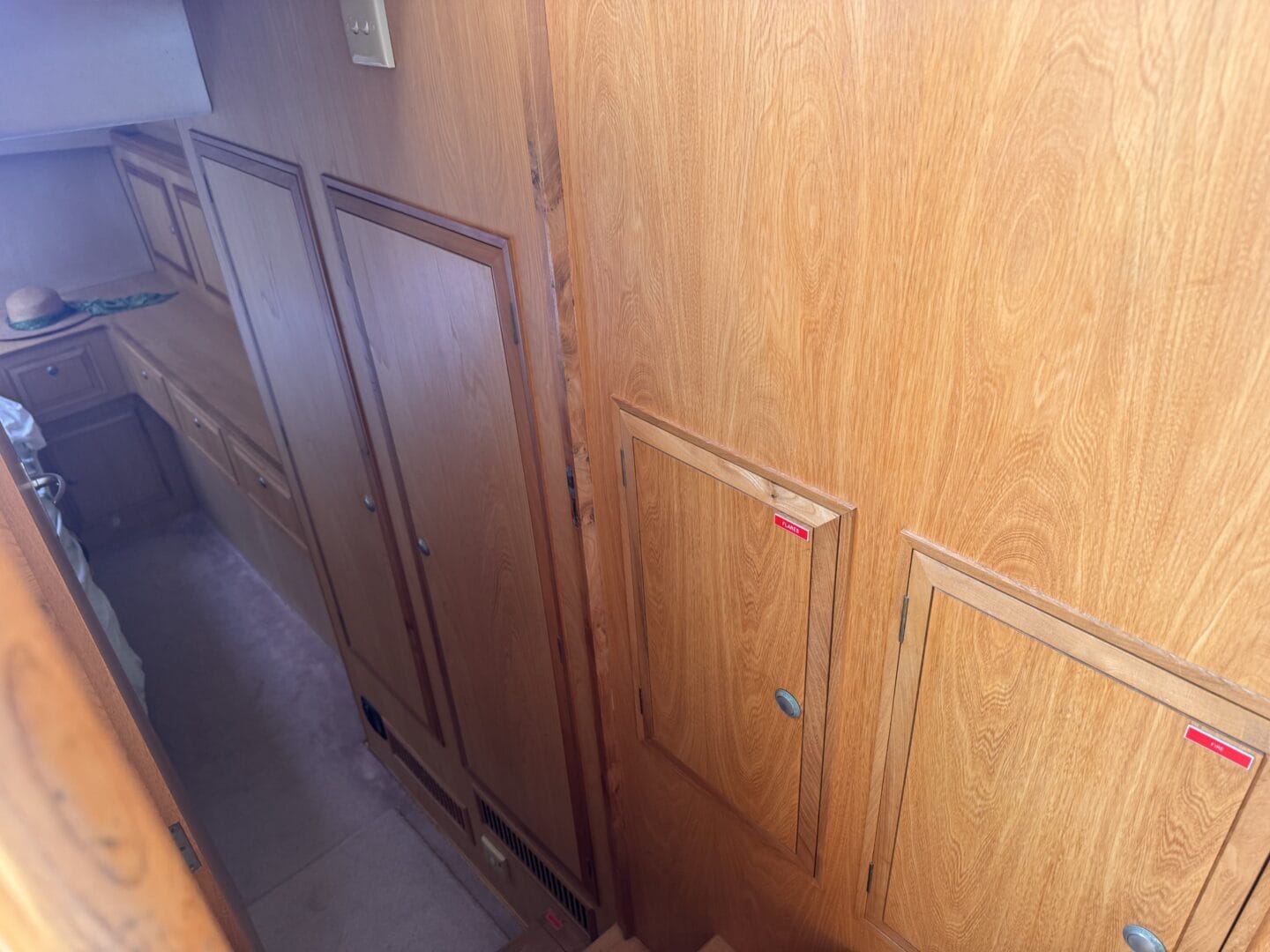

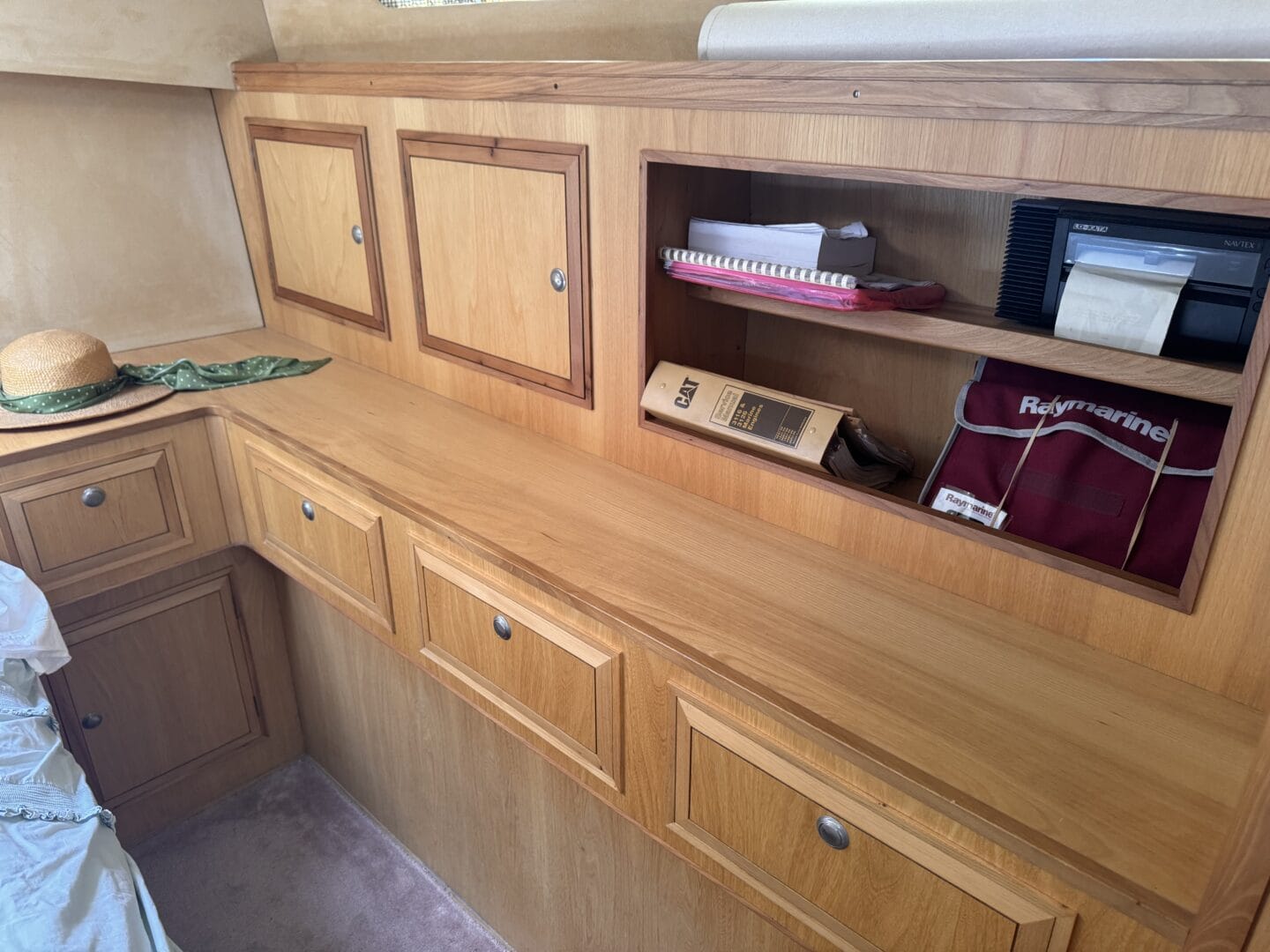

• With double berth and numerous stowage lockers, drawers and hanging wardrobes. Watertight bulkhead door from aft cabin to engine room.

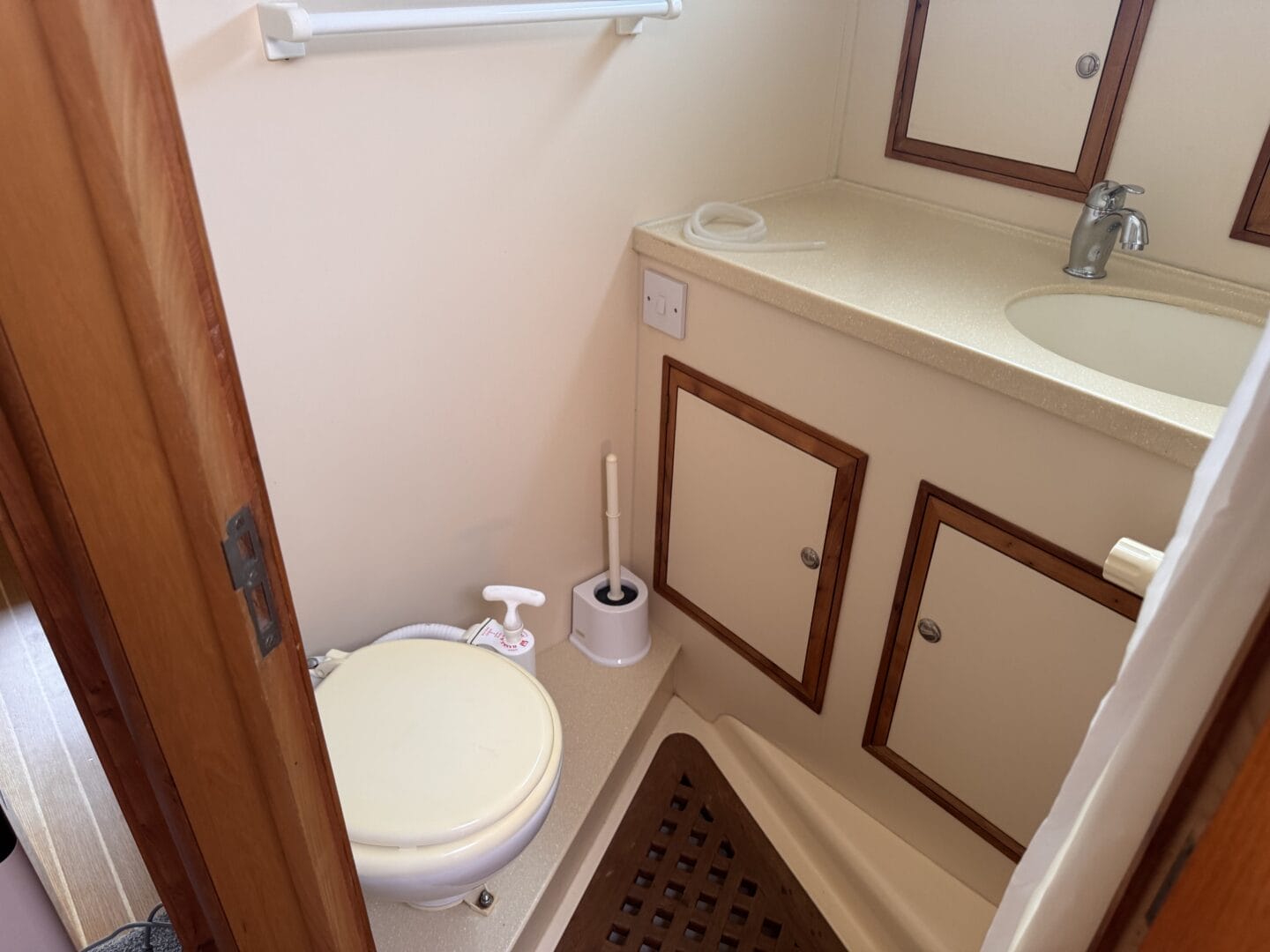

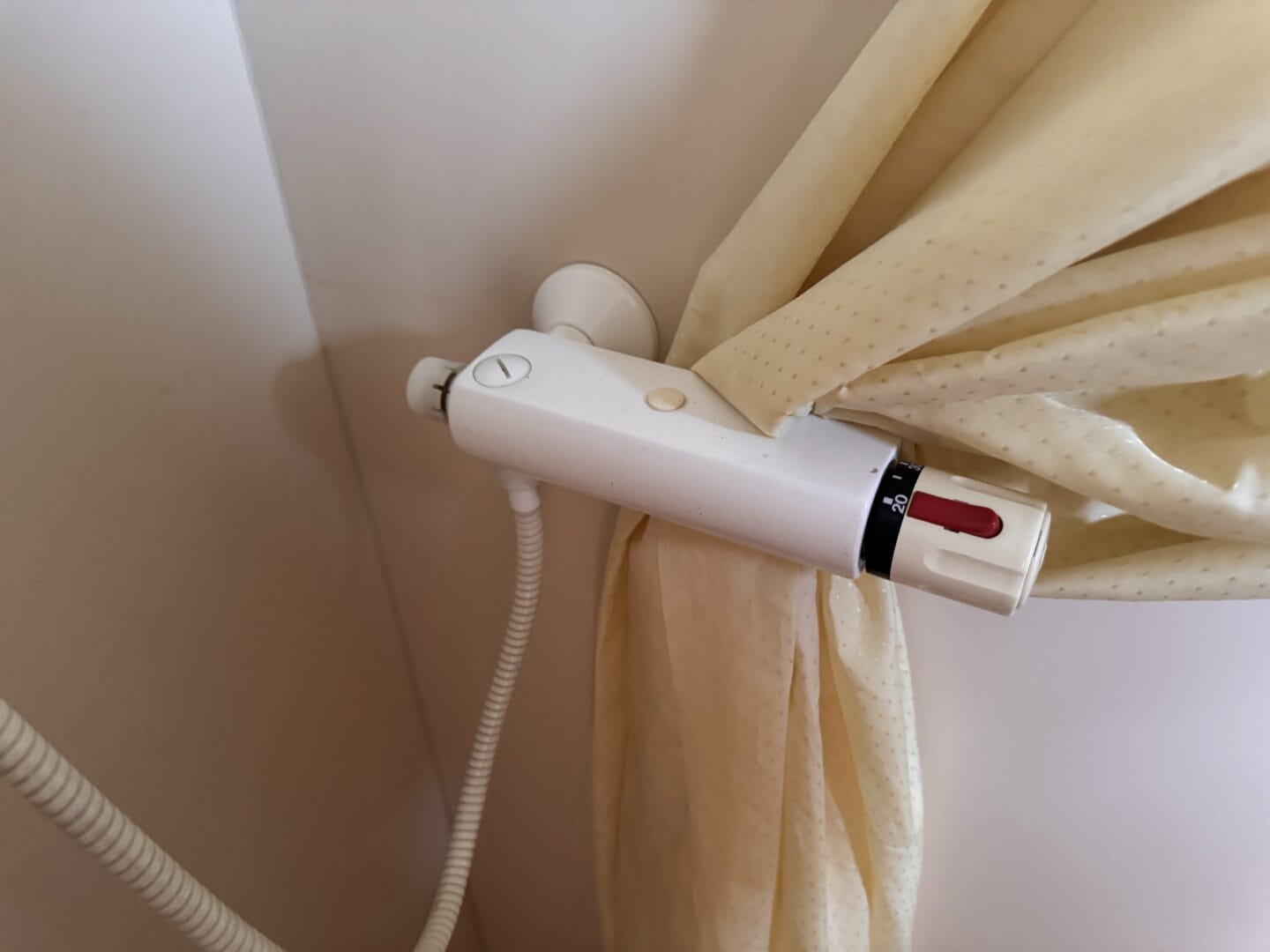

Aft Cabin Ensuite Heads:

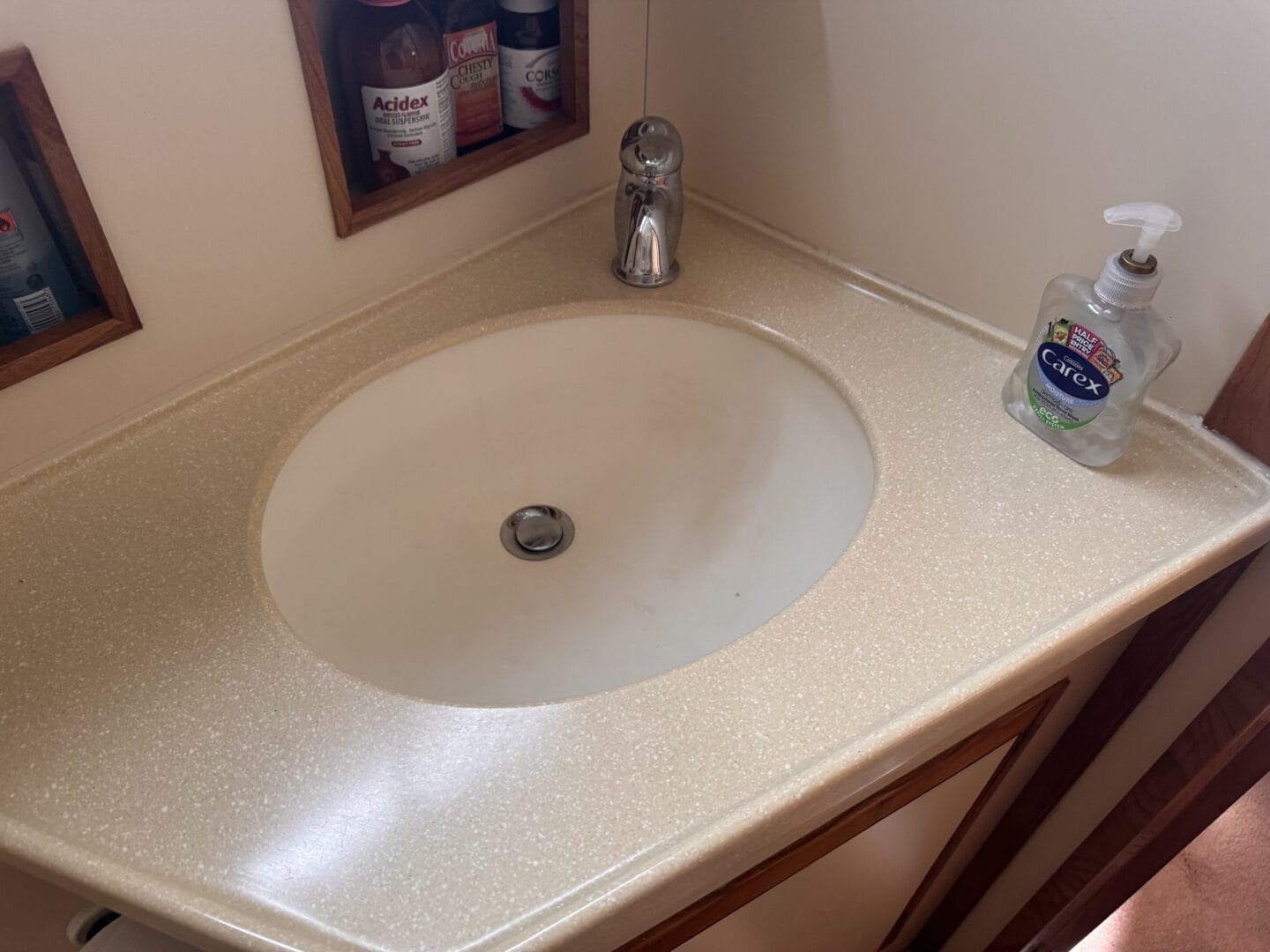

• With marine electric toilet, shower and basin with hot and cold water supply.

On Deck:

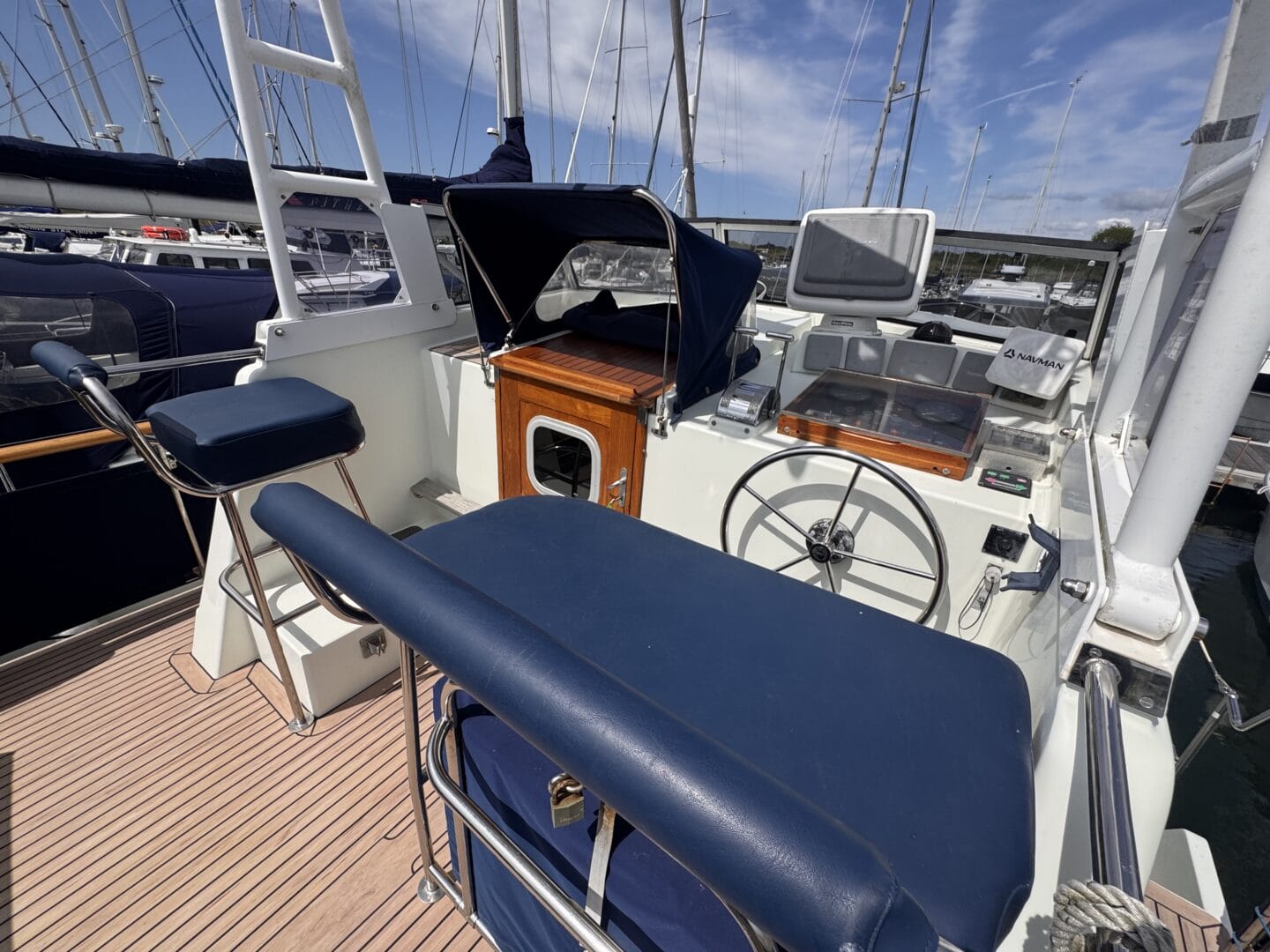

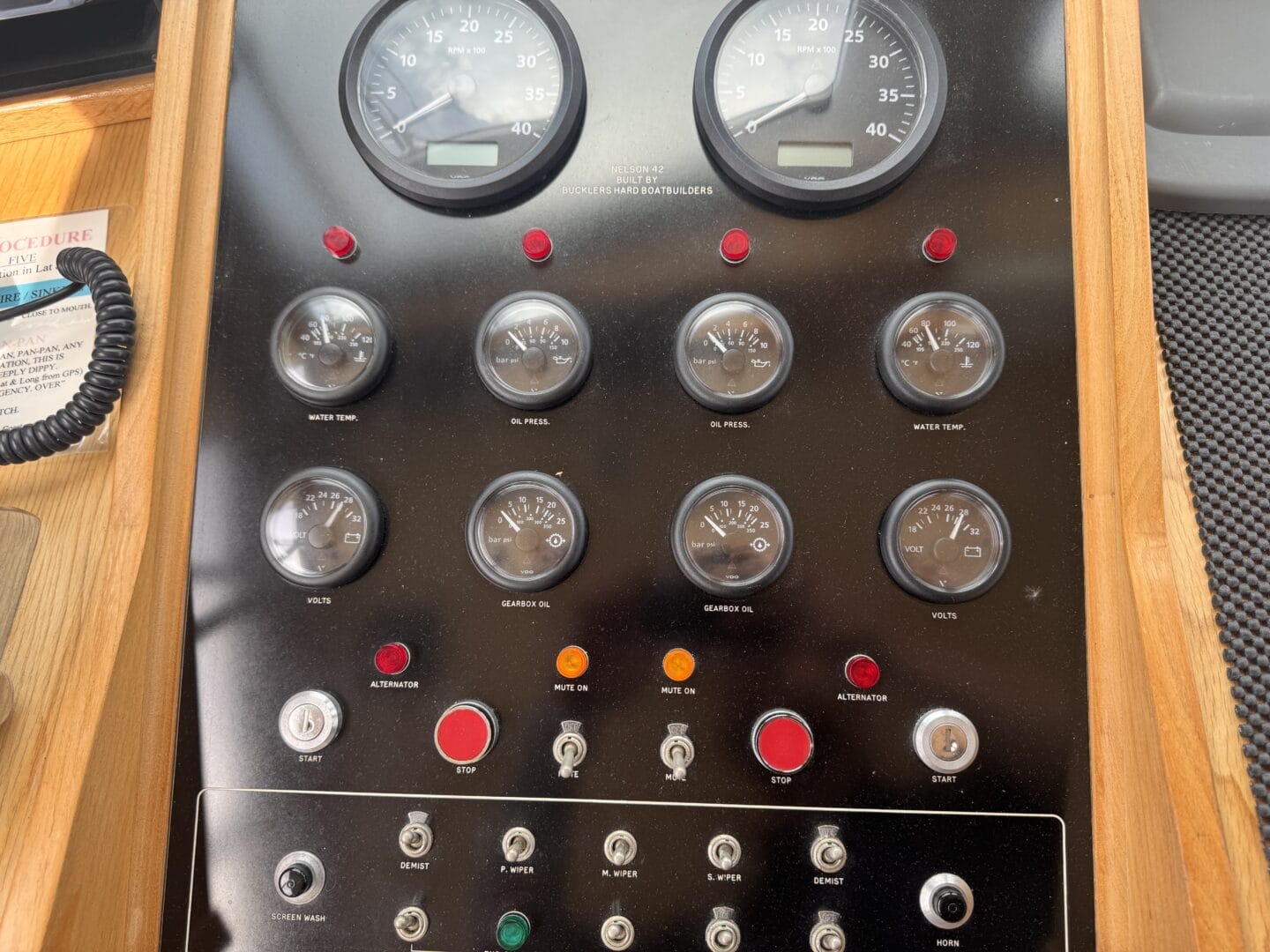

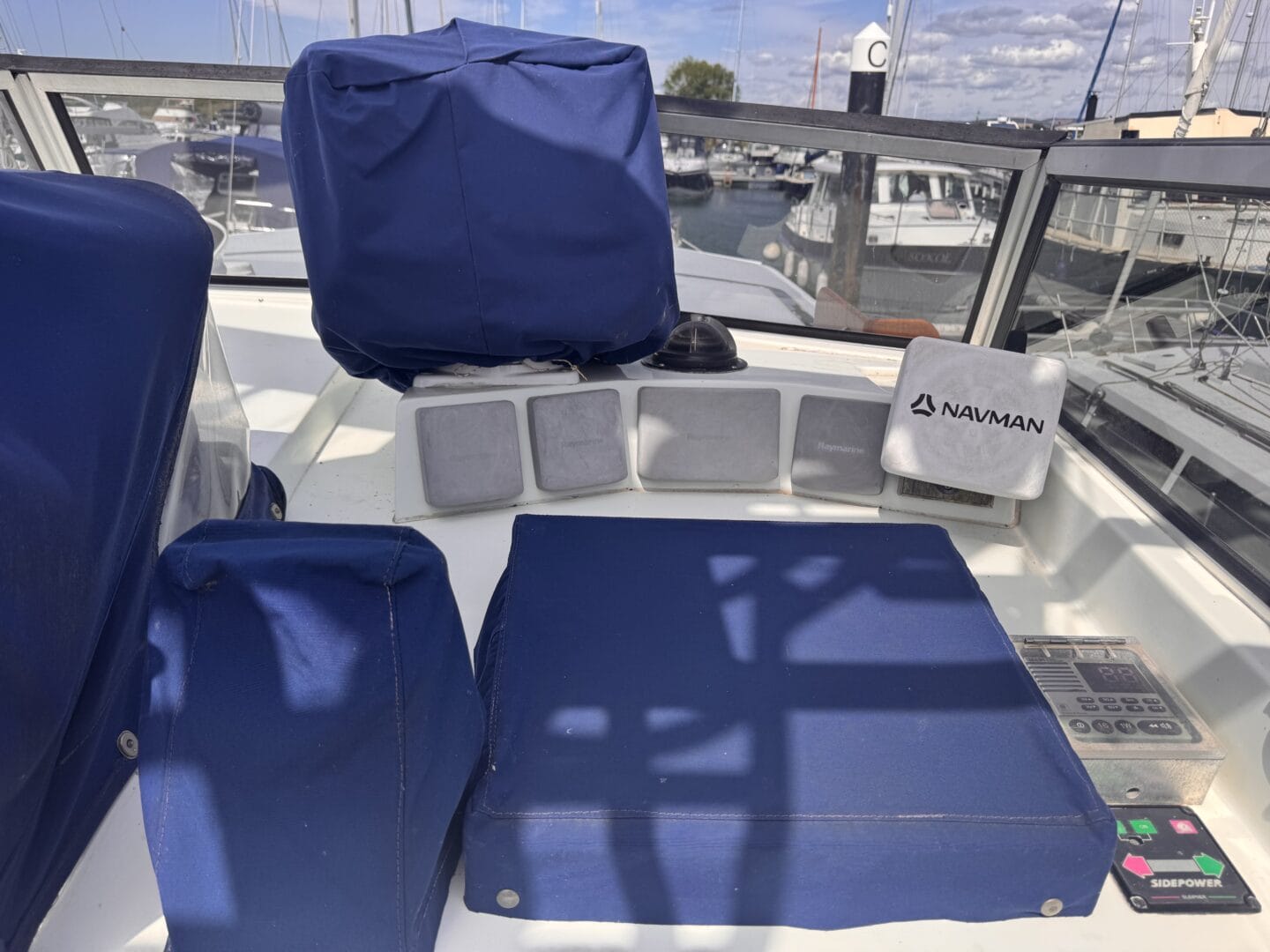

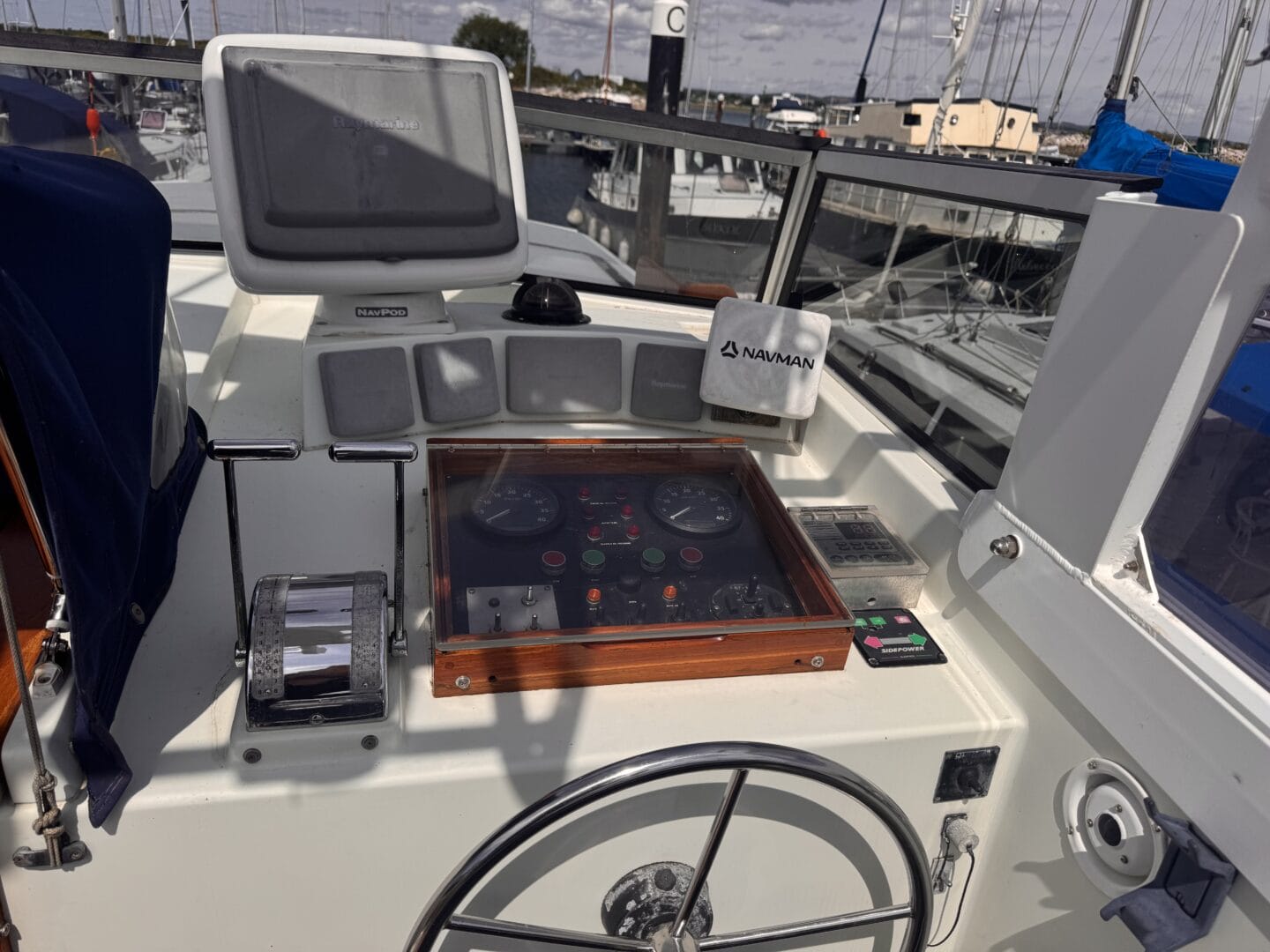

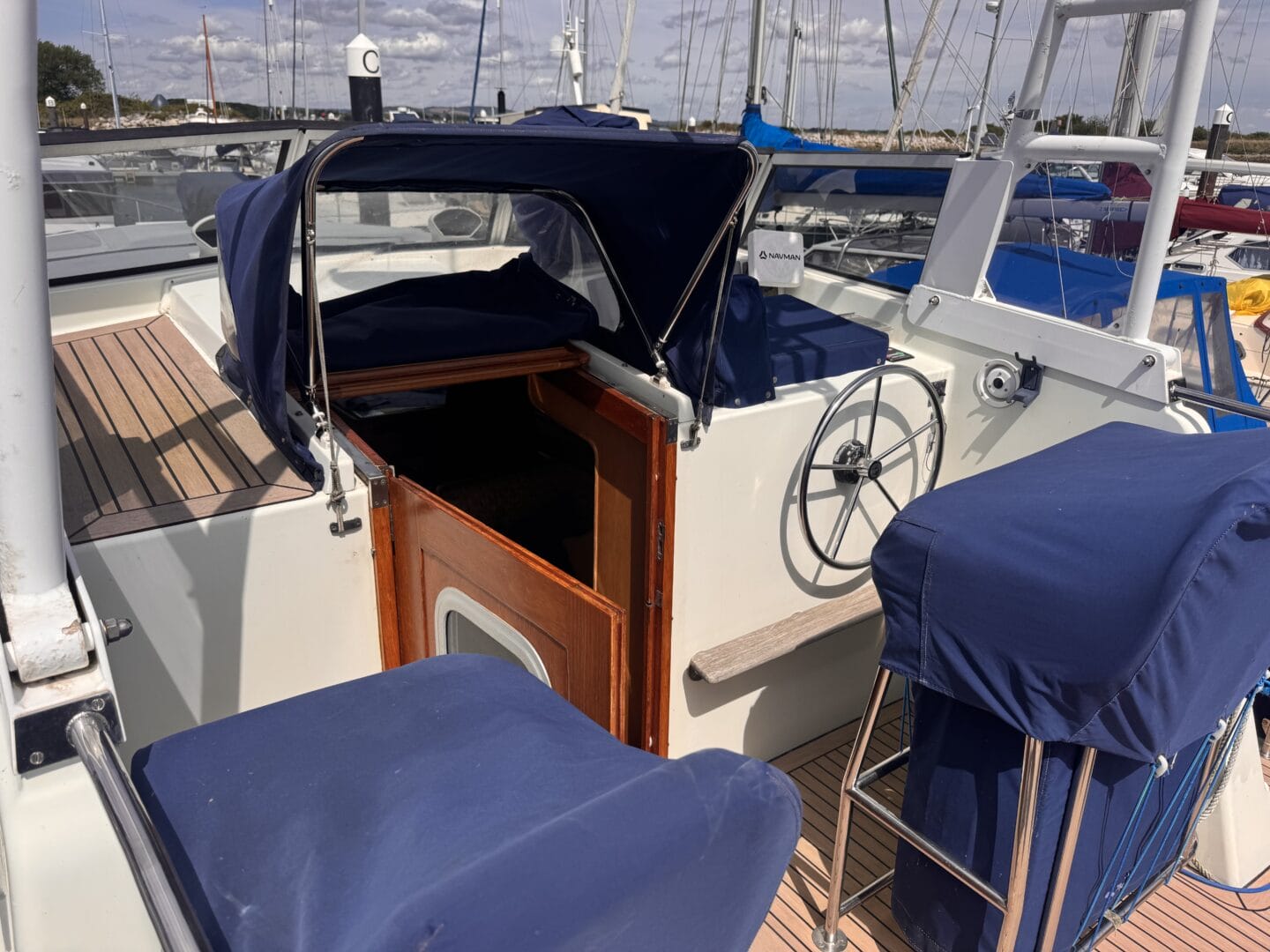

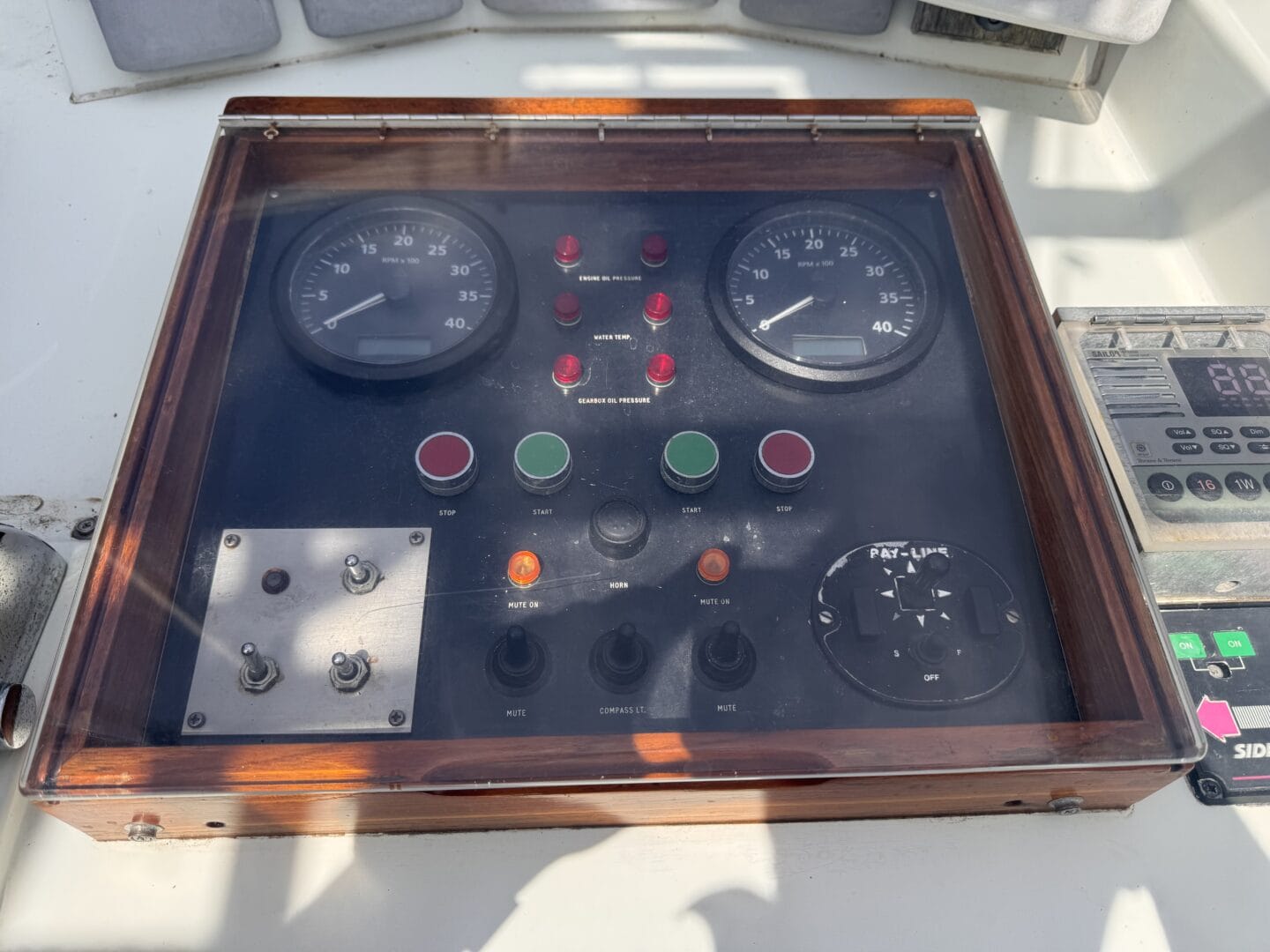

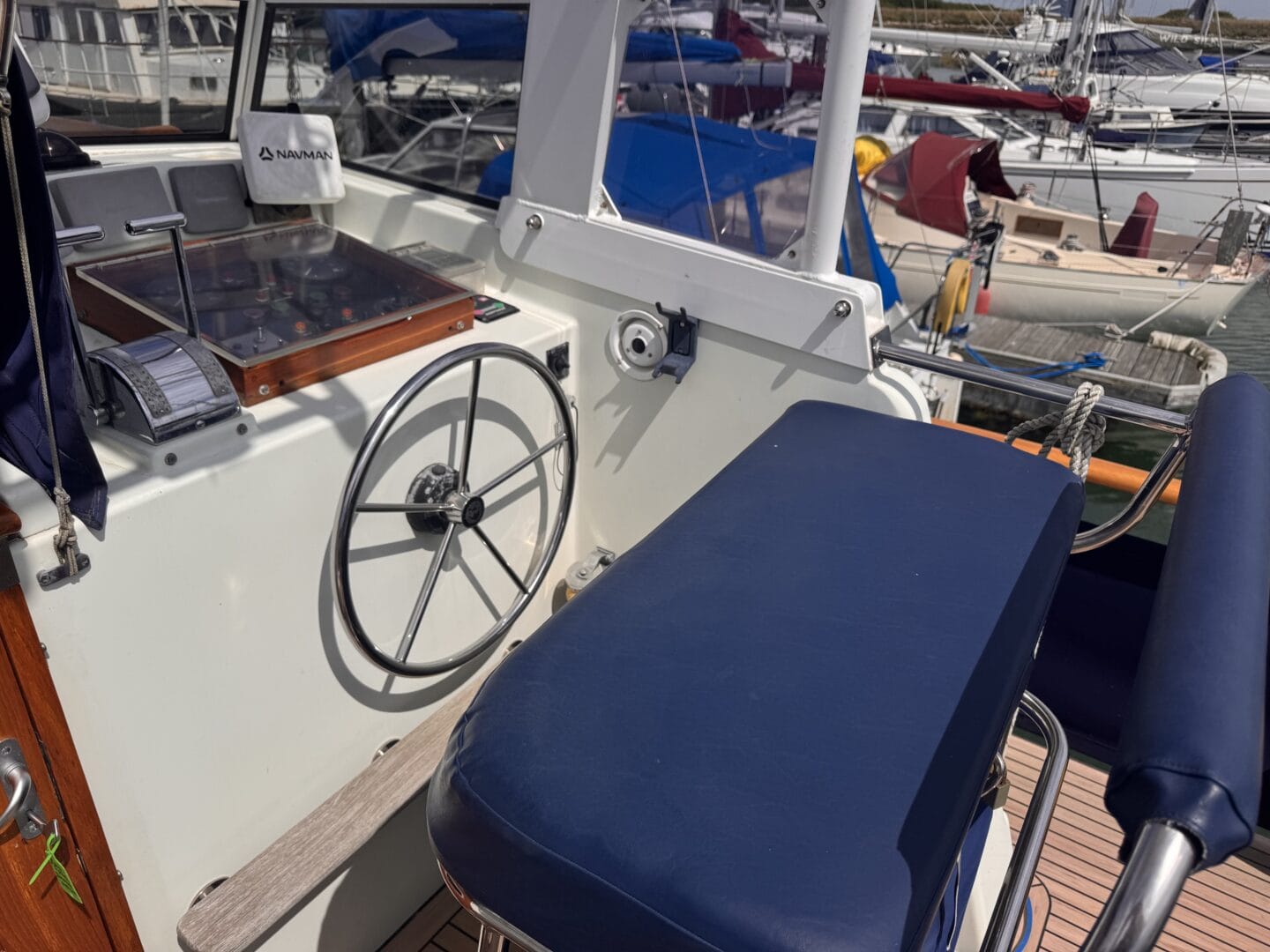

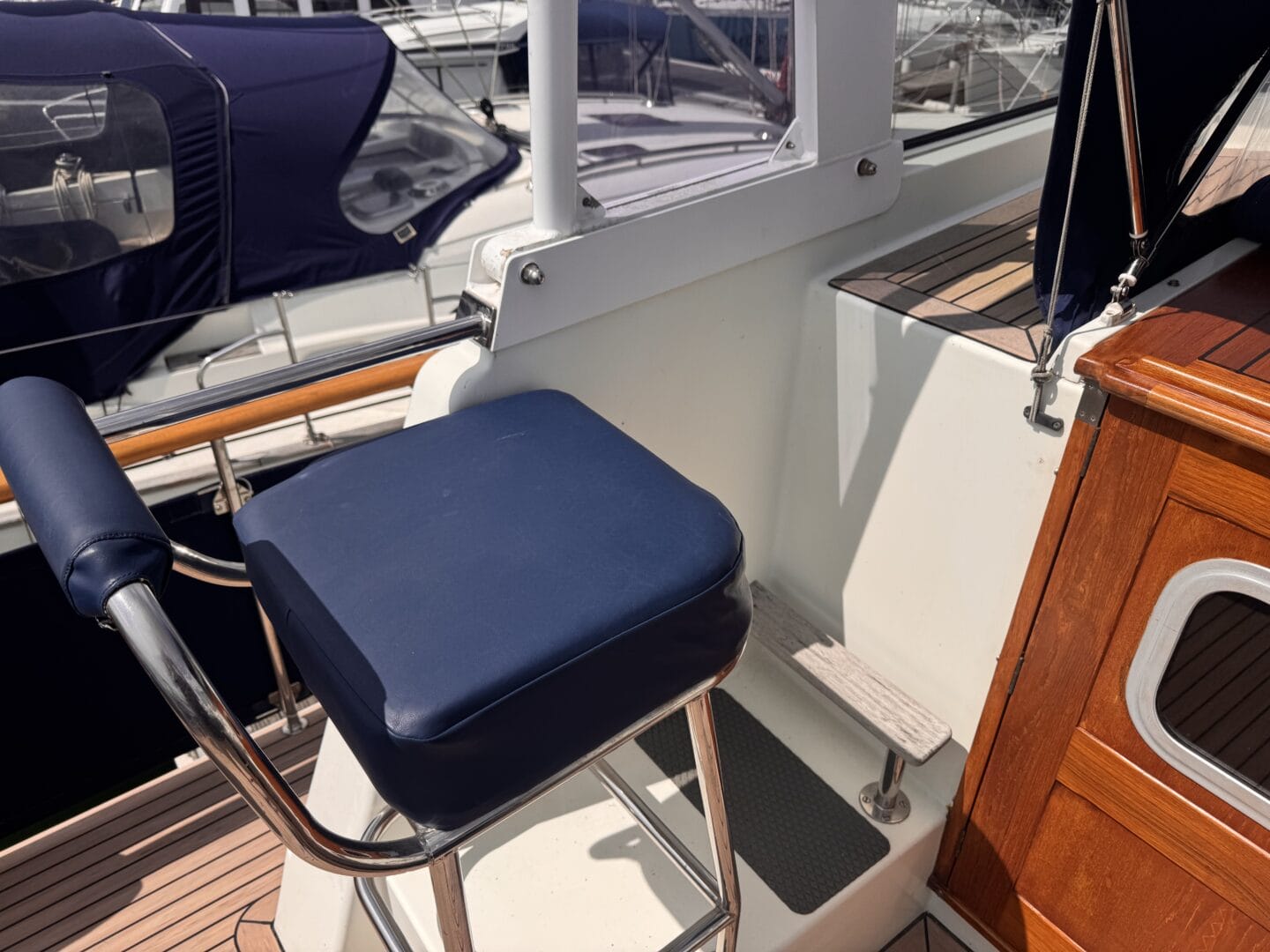

• Upper helm position with double helm seat plus a single crew seat. Bridge screen. Engine instrumentation and controls.

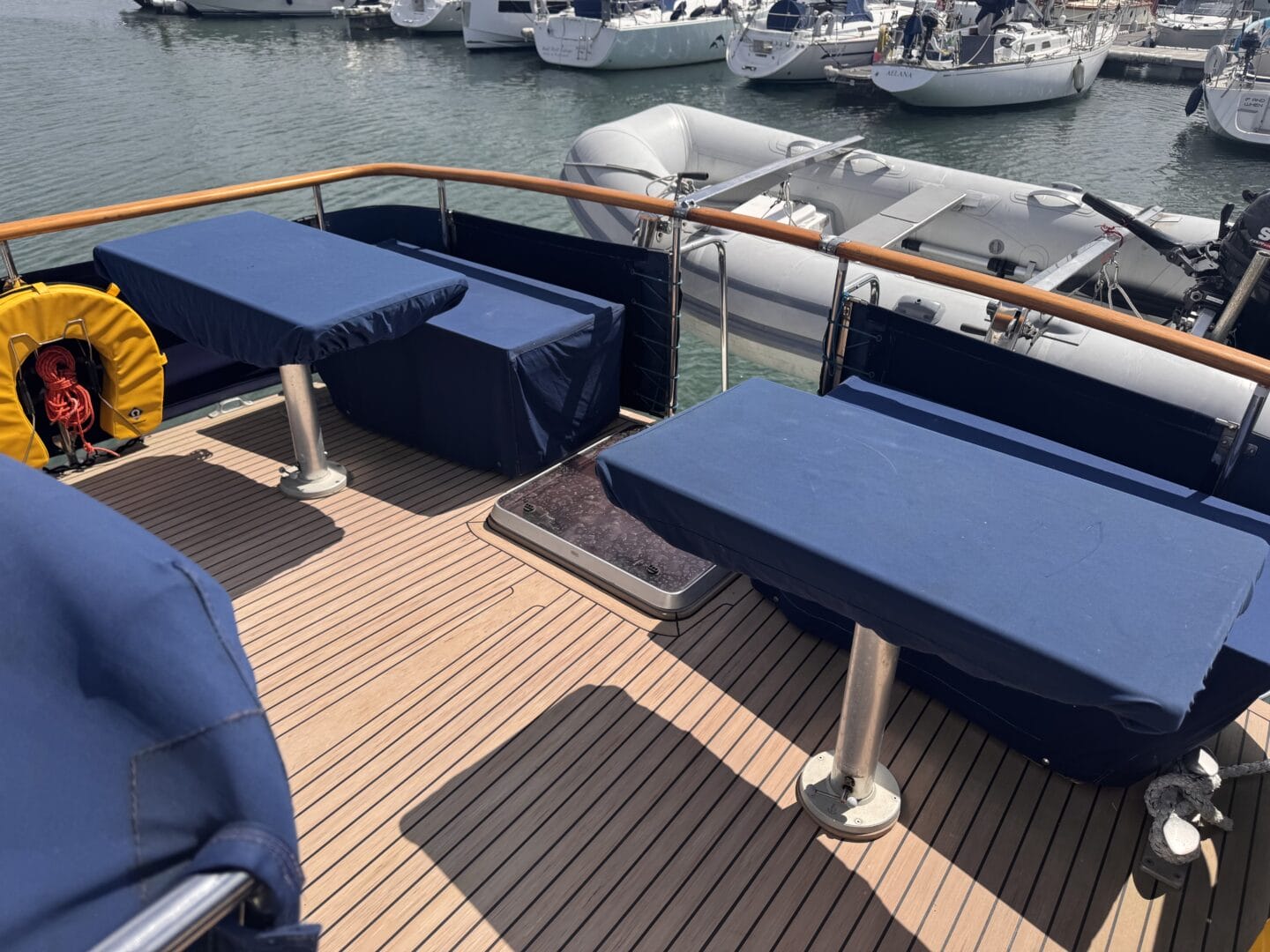

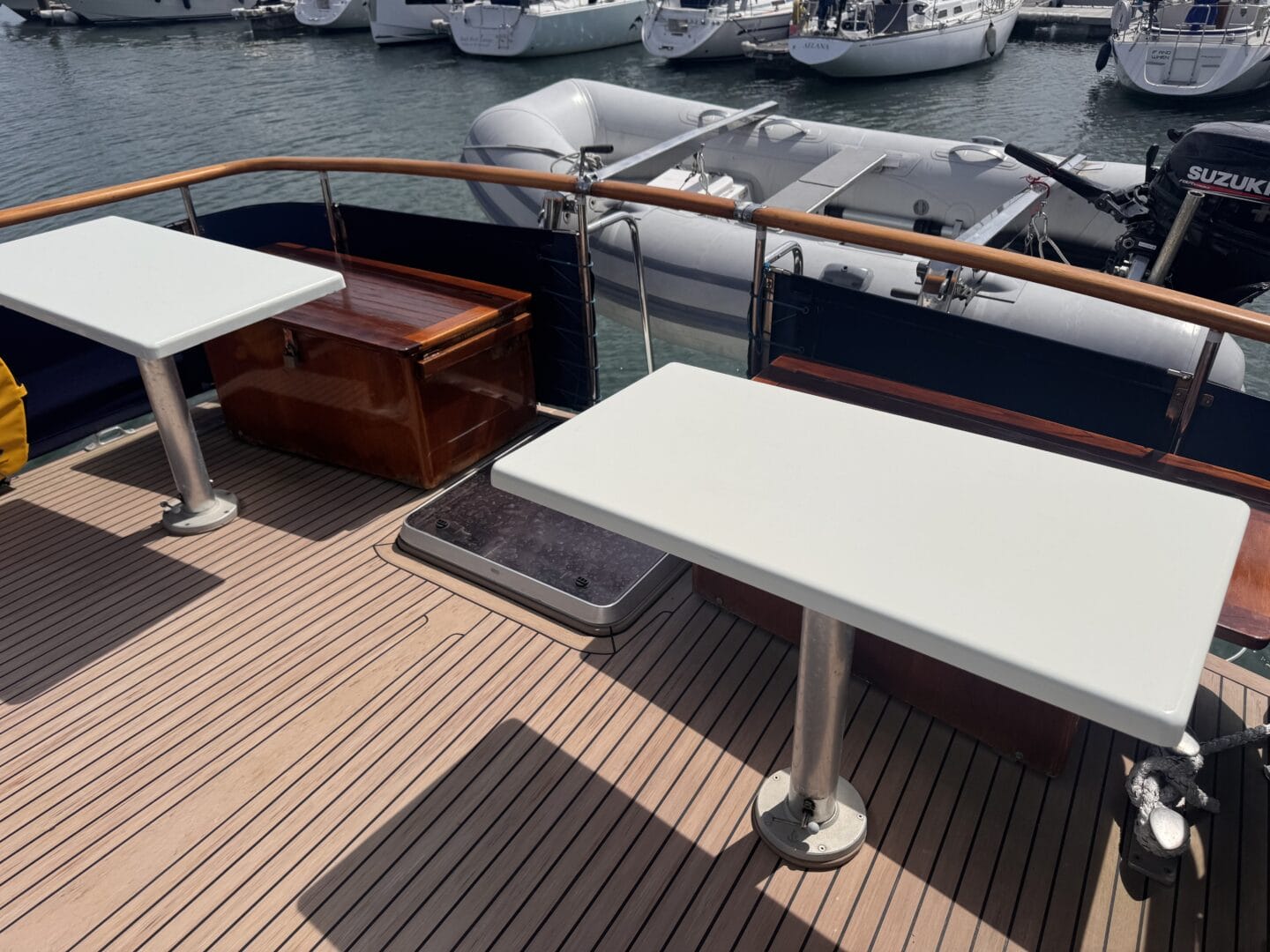

• Flexiteek laid aft deck

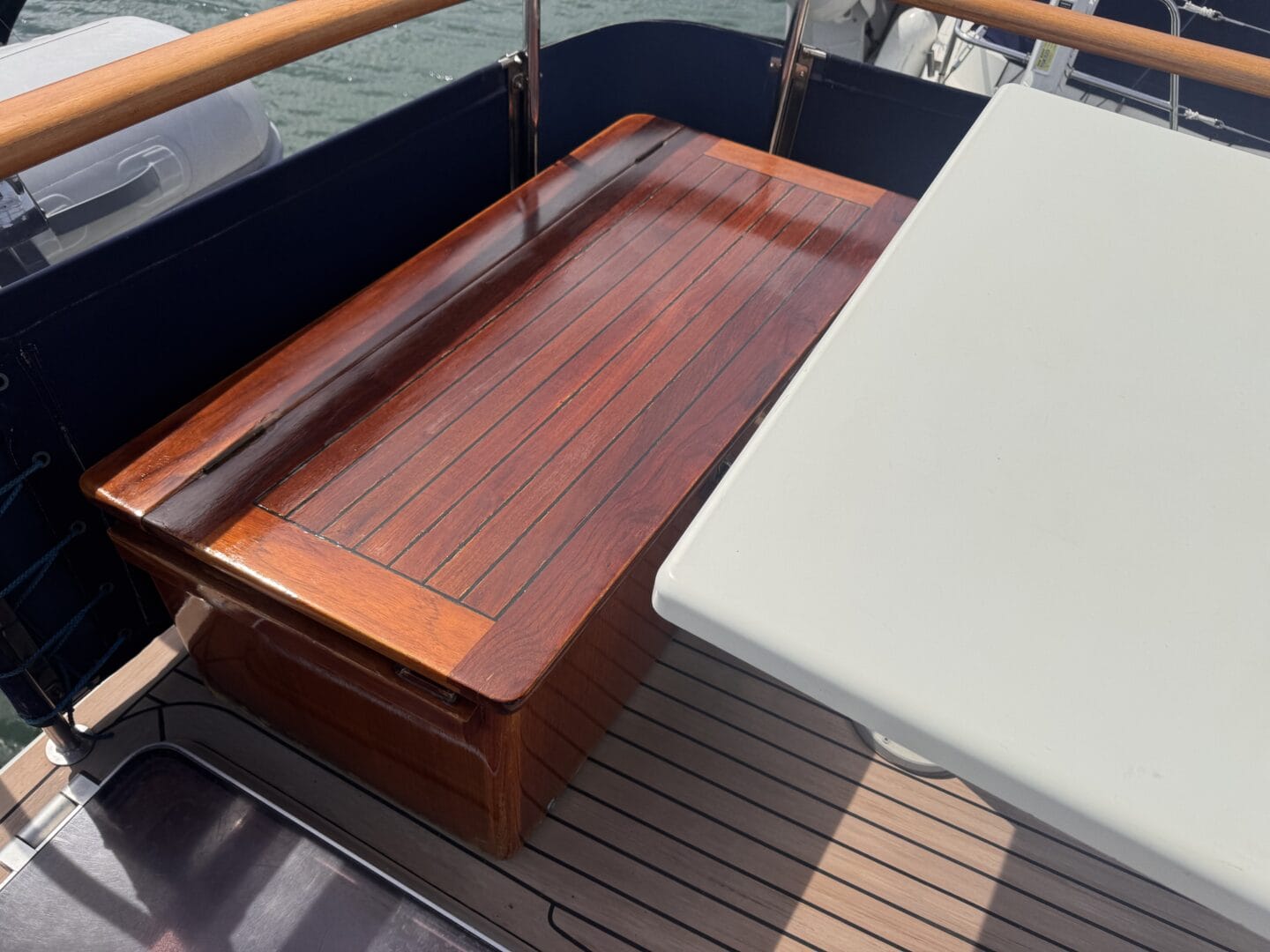

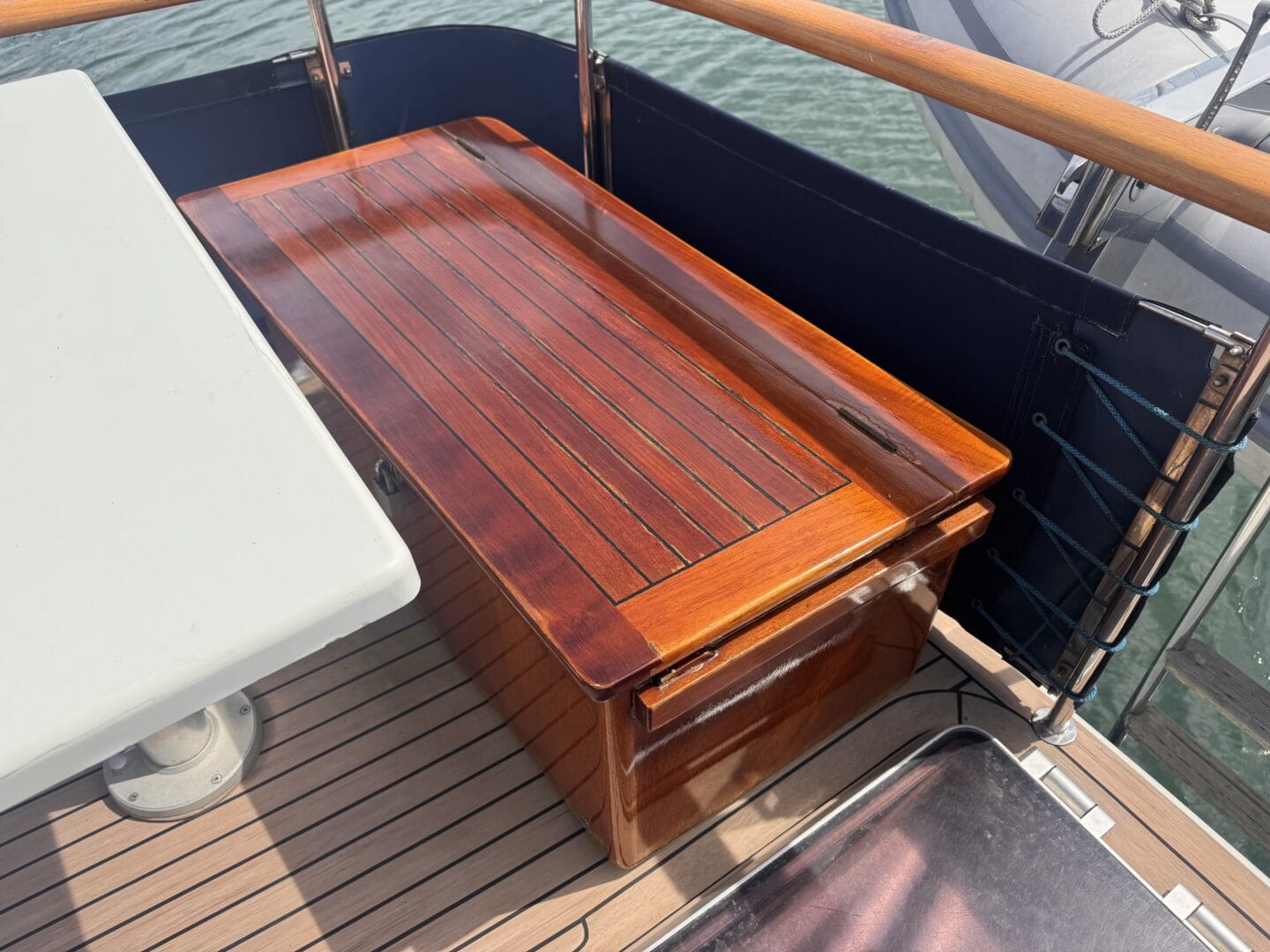

• Deck seats (and stowage boxes) plus deck cushions
• 2 tables
• 2 fender baskets
• Whittal stainless steel davits

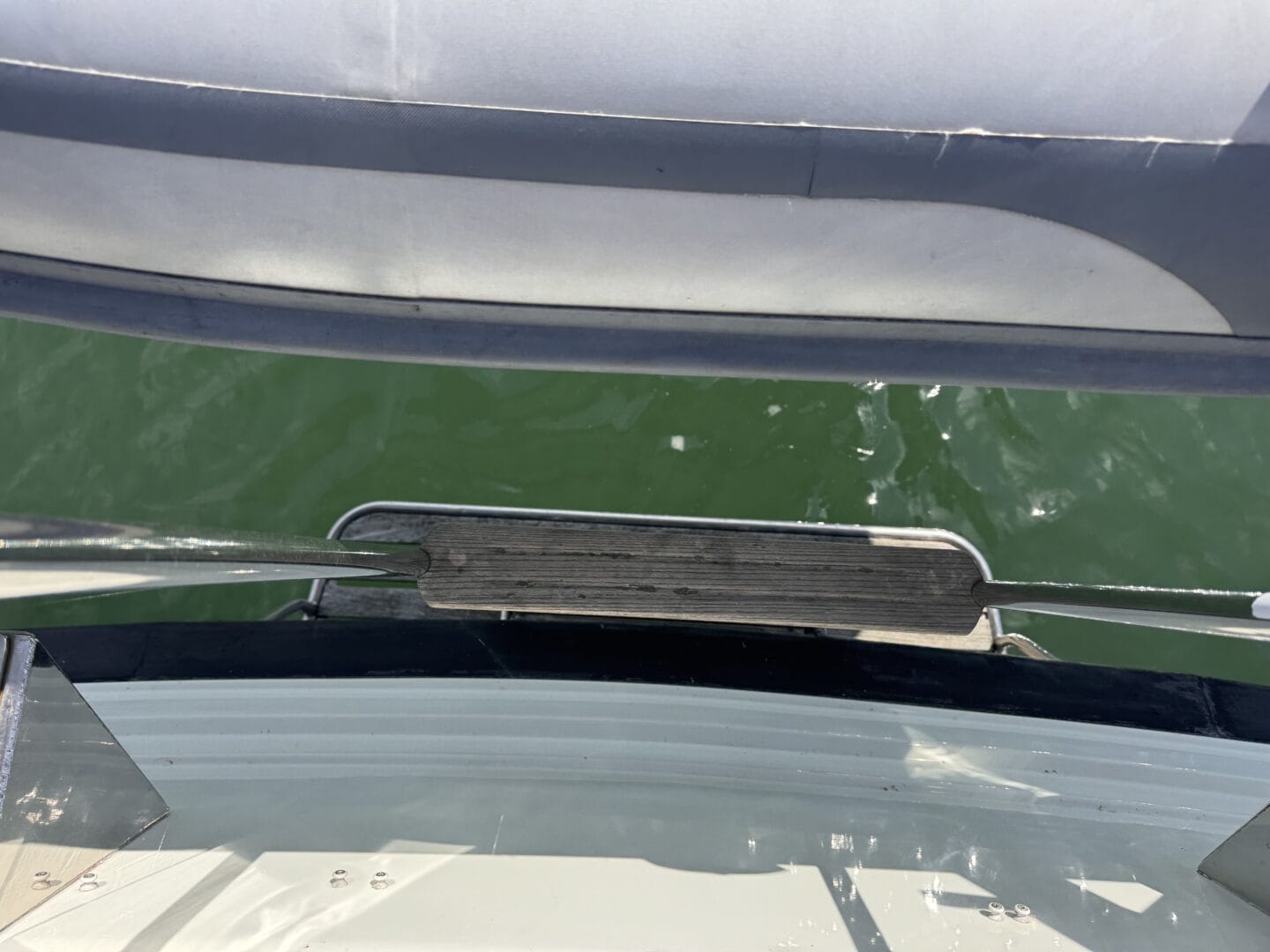

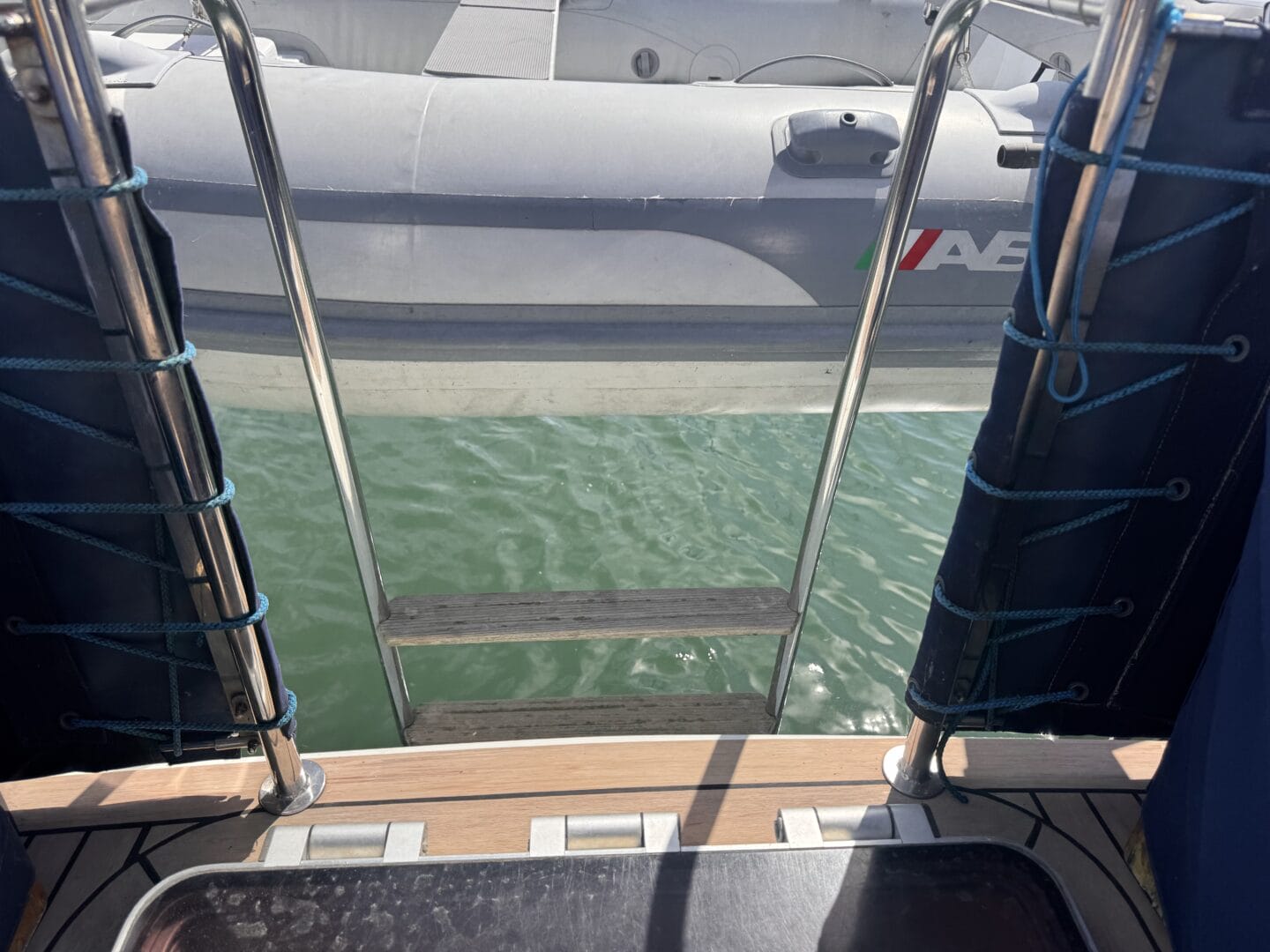

• Stainless steel bathing ladder and bathing platform with teak treads

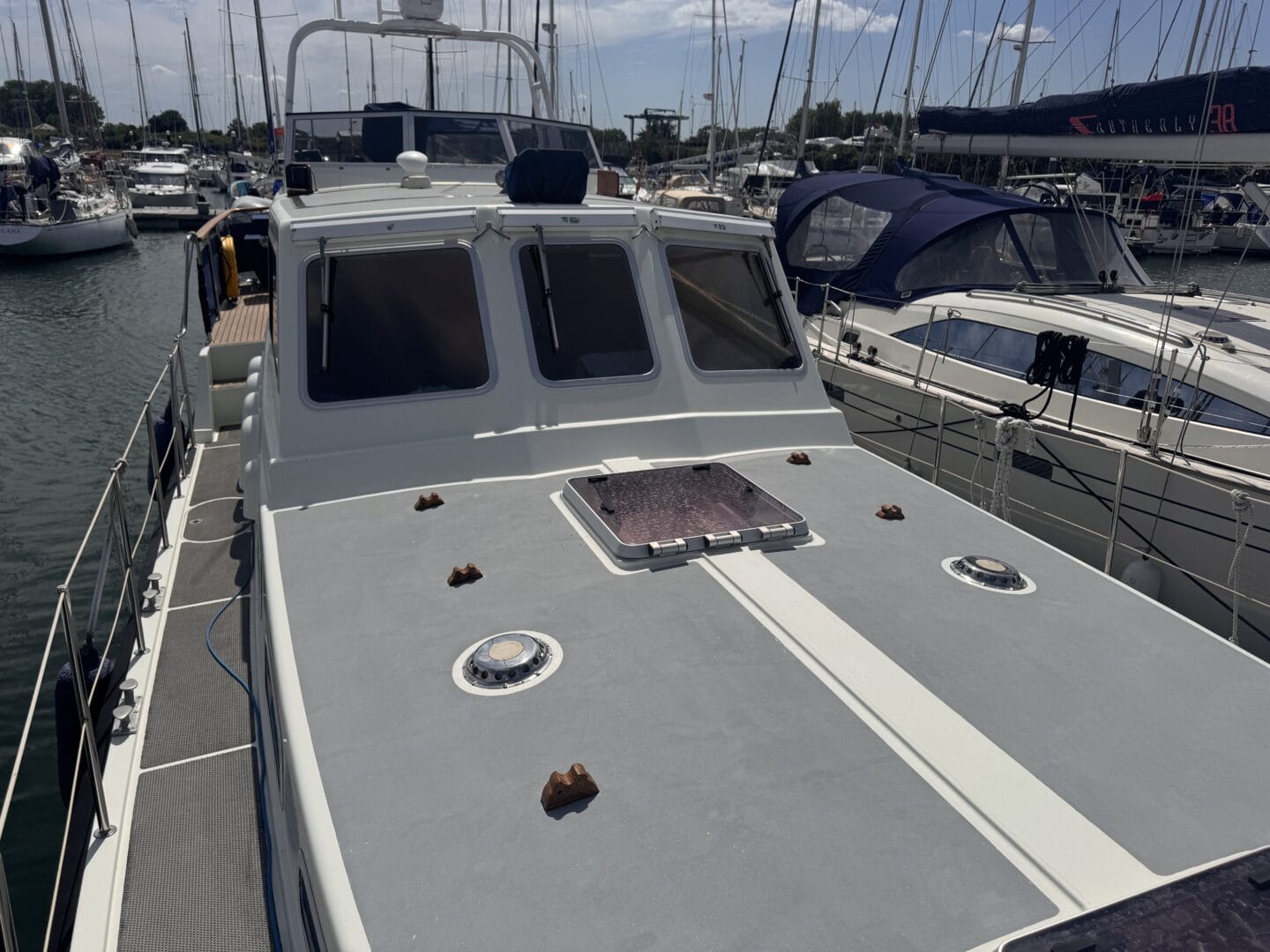

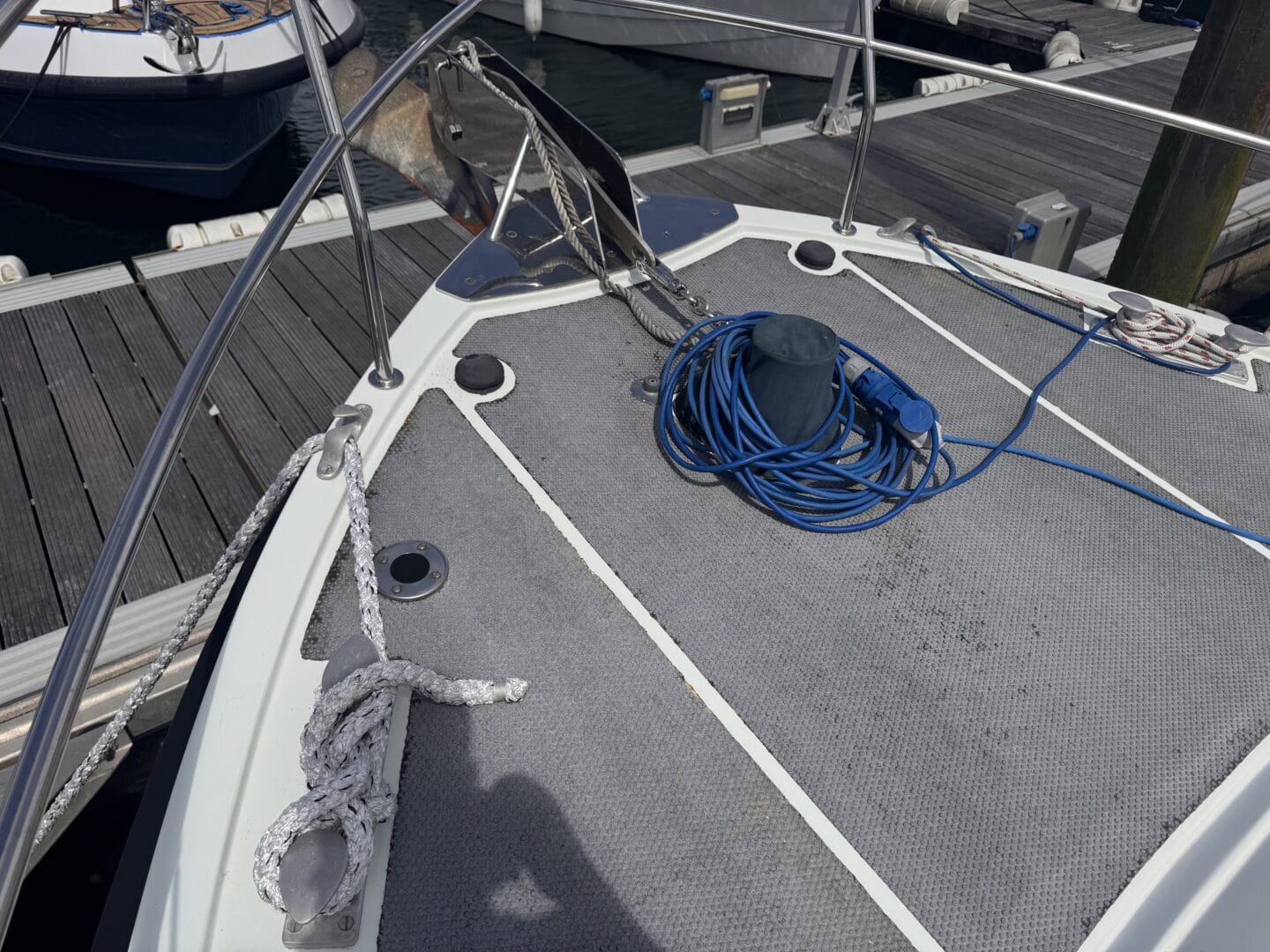

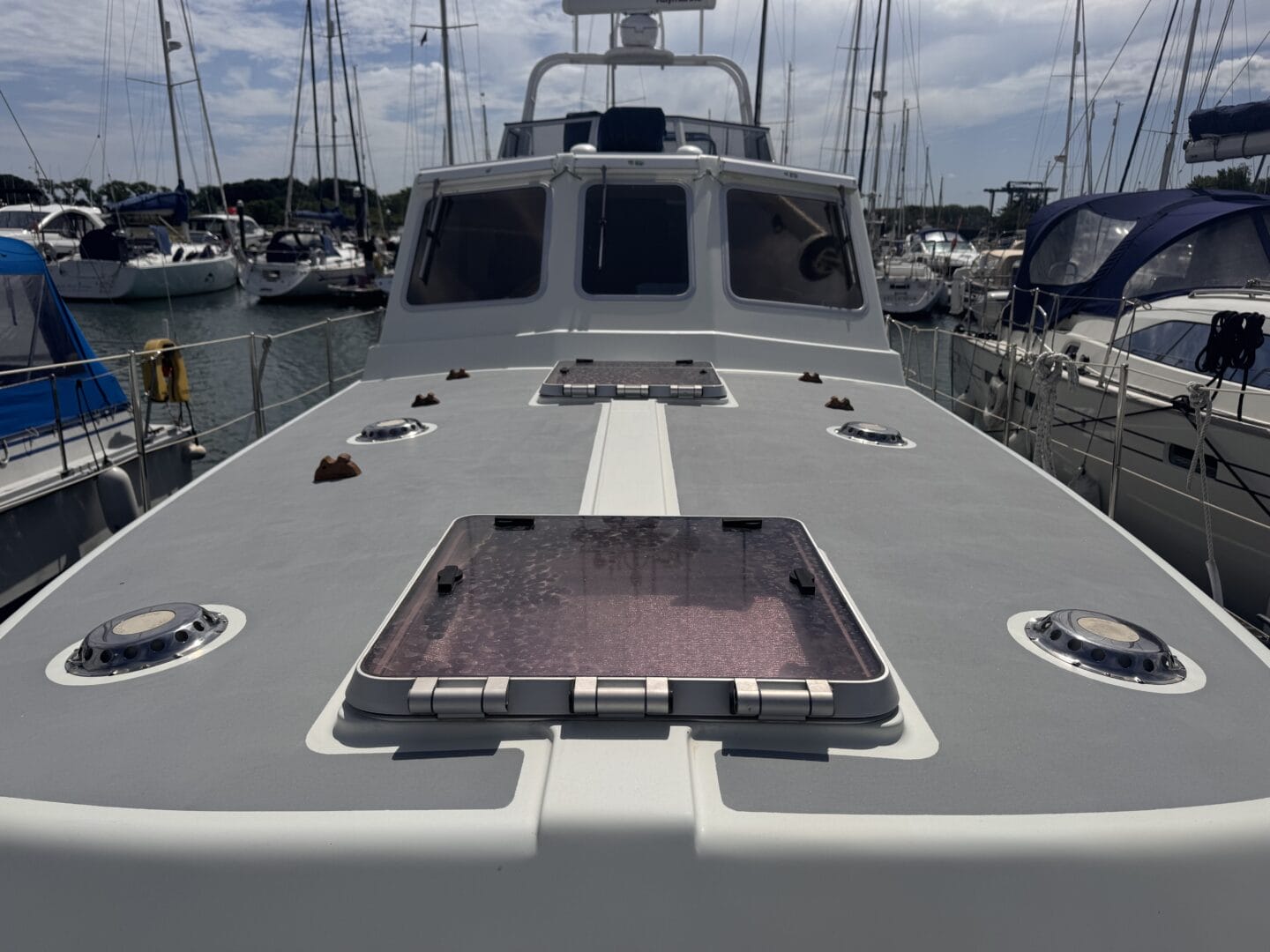

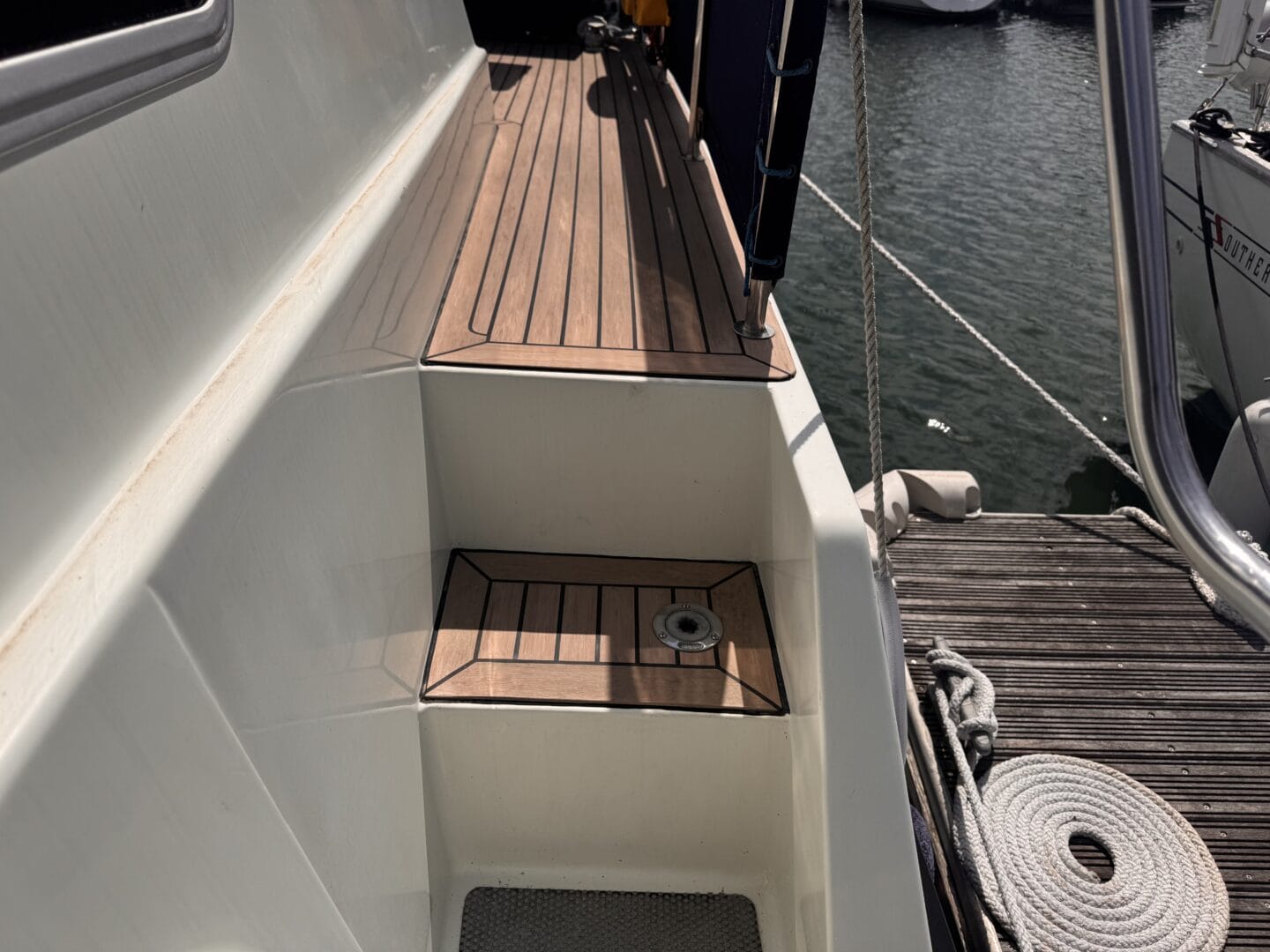

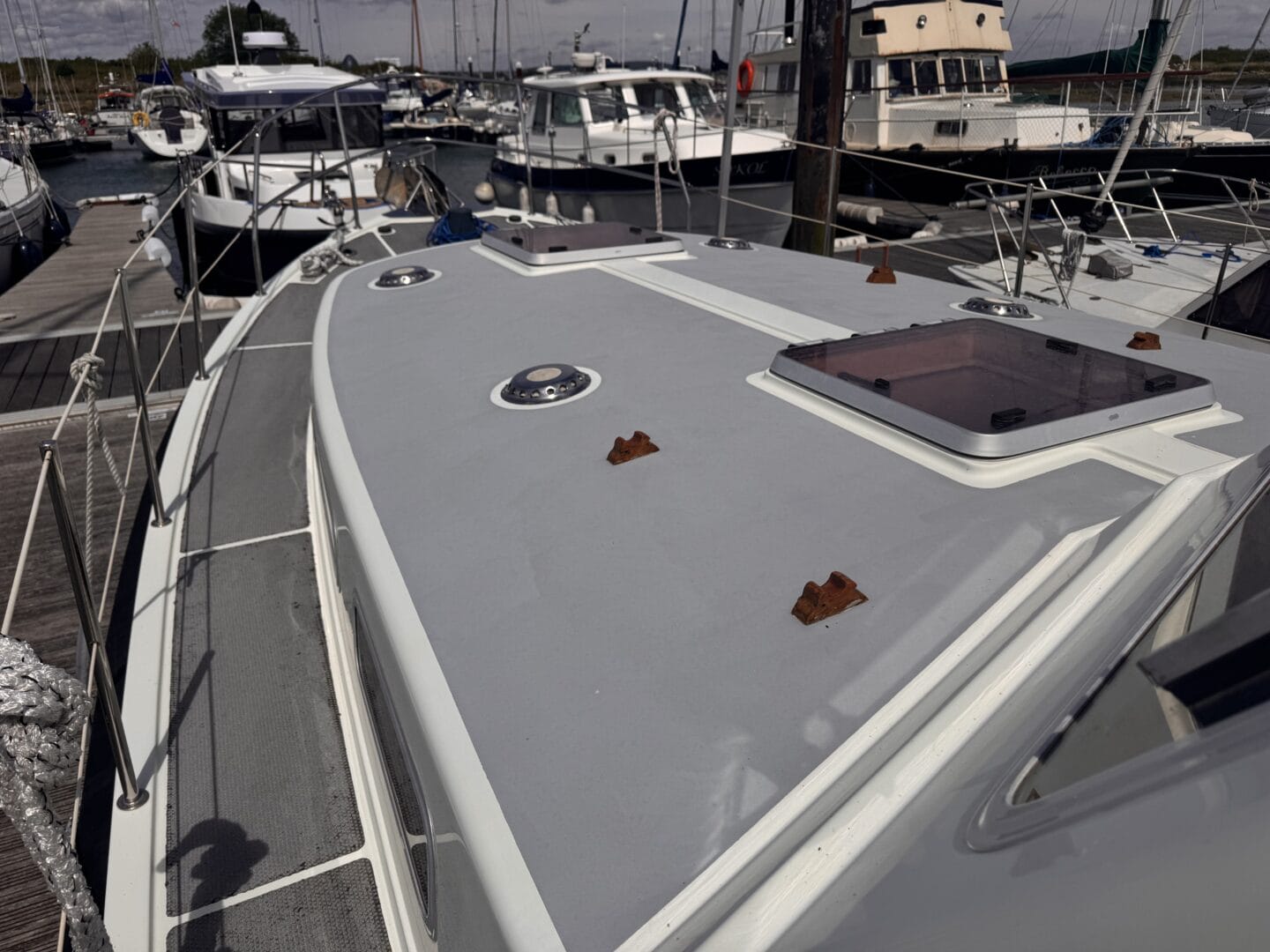

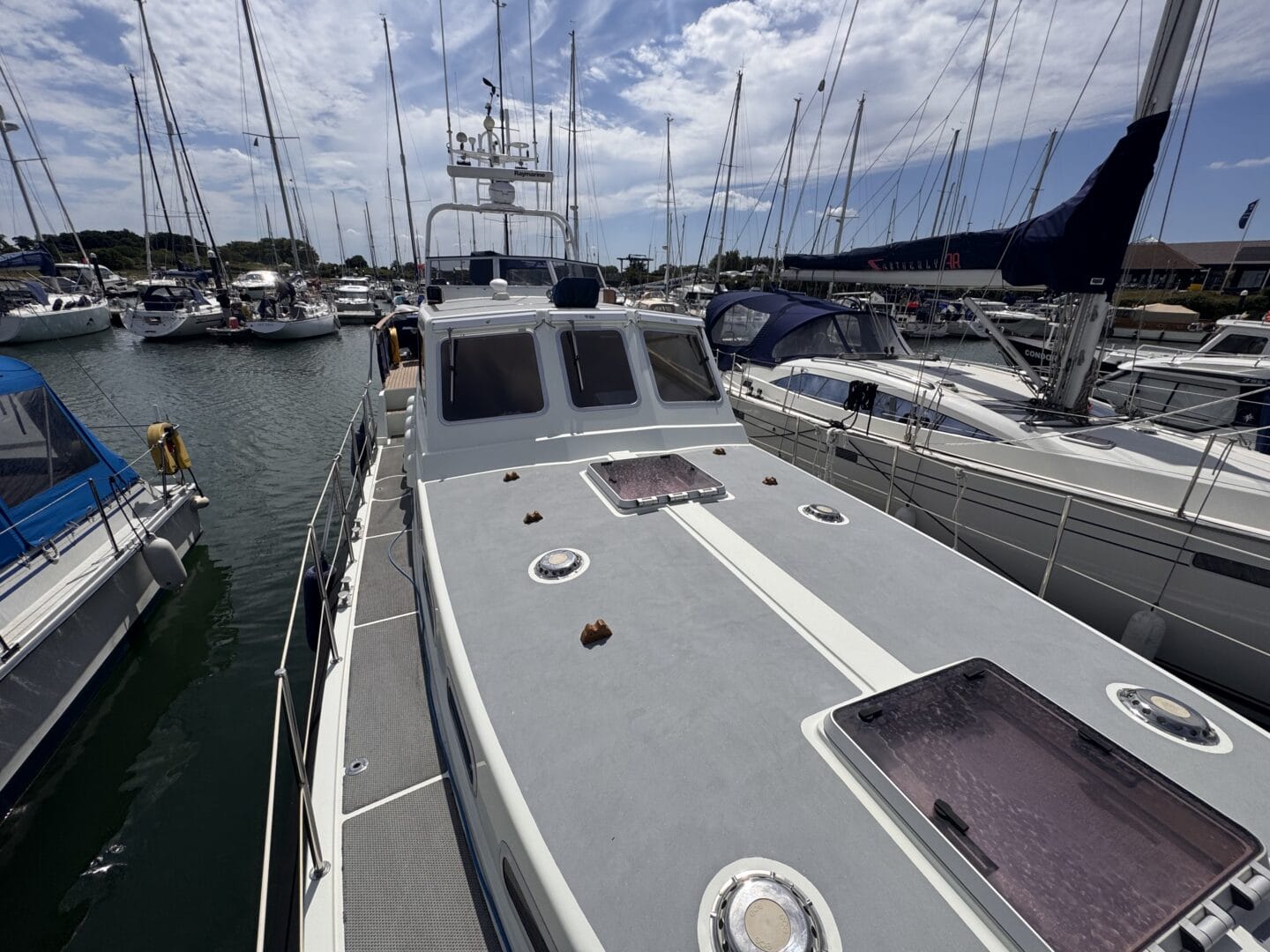

• Treadmaster decking on foredeck and sidedecks
• Self-draining gas bottle locker for two gas bottles.

Inventory:

Deck Equipment:

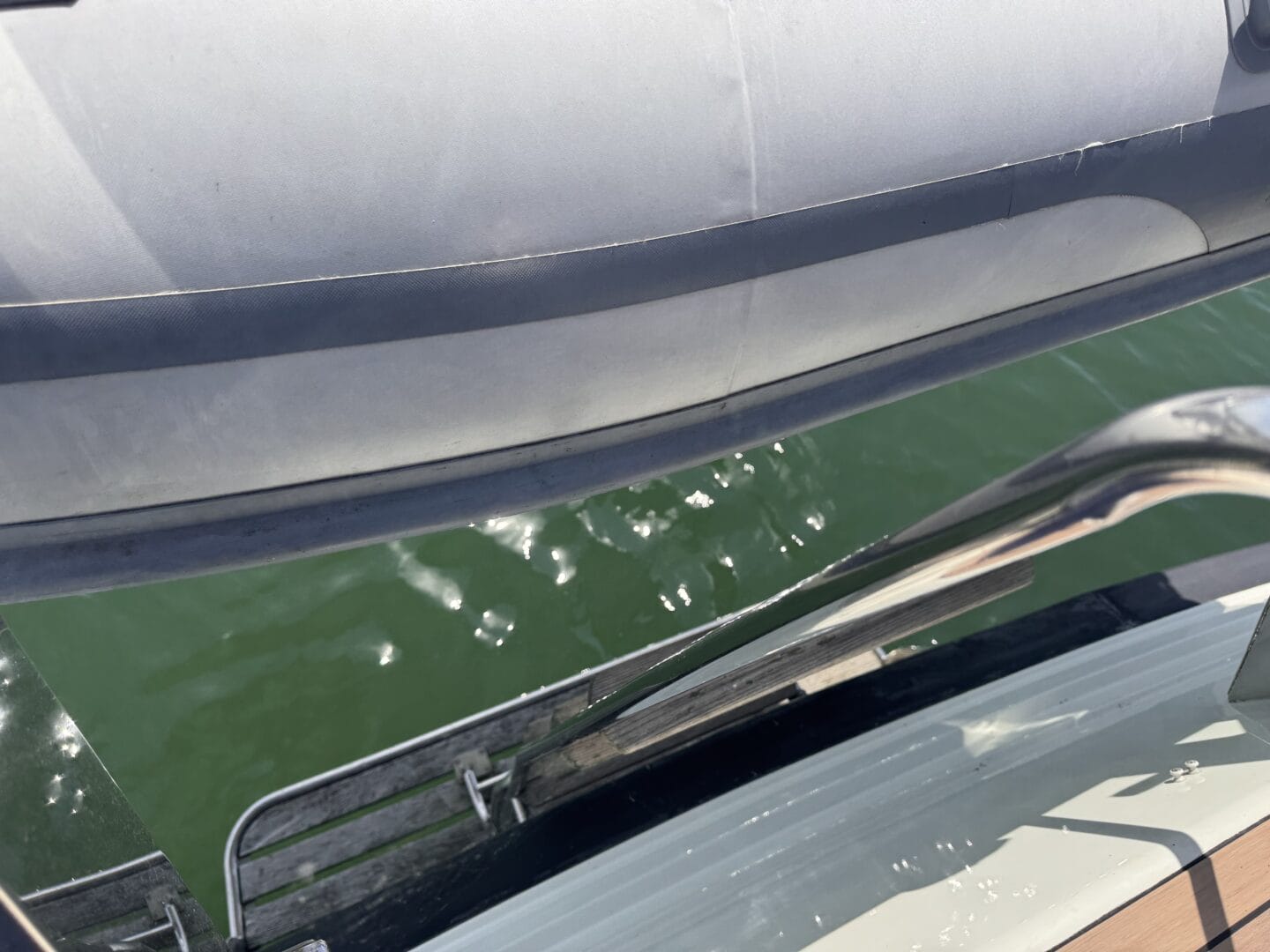

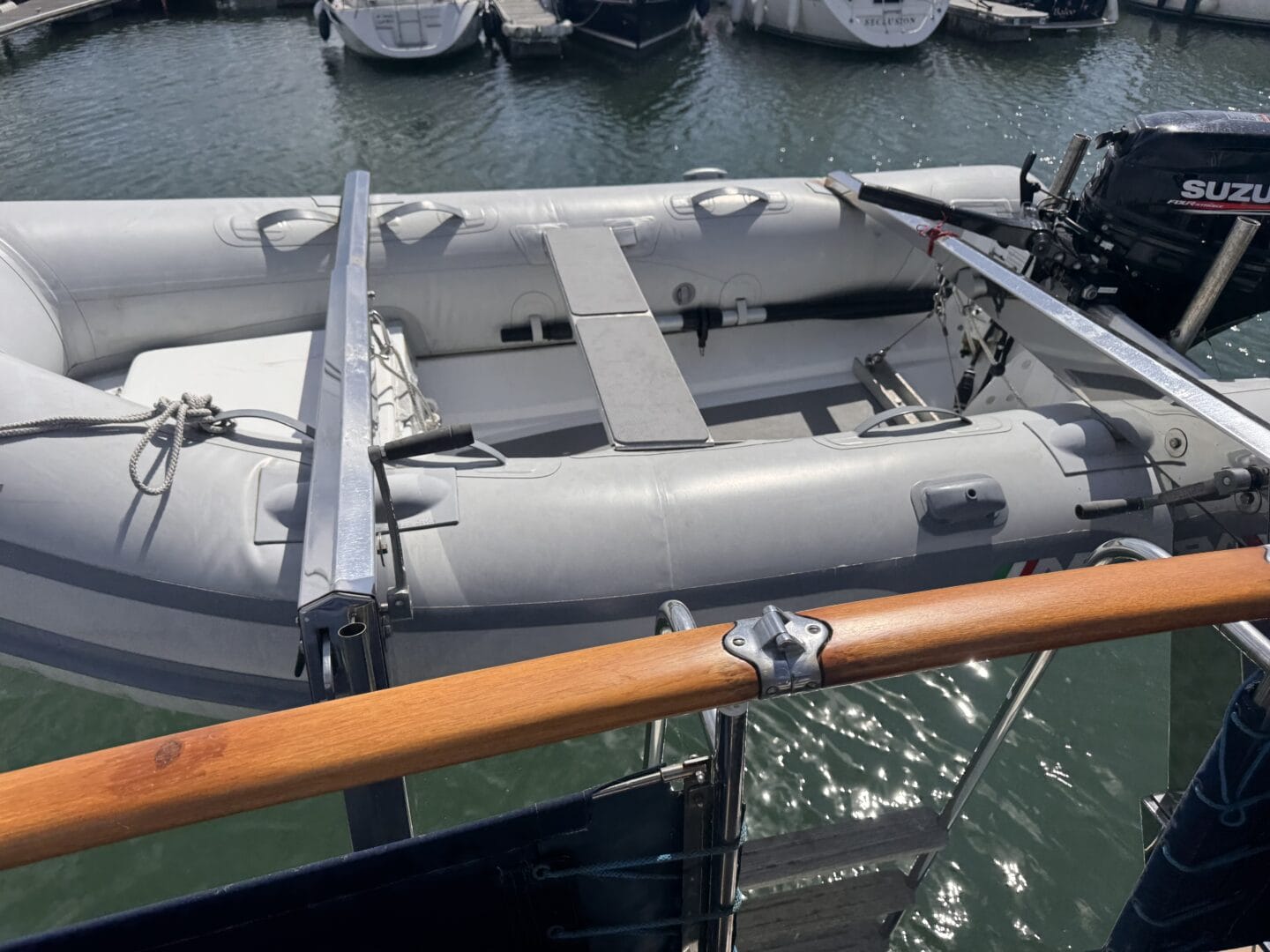

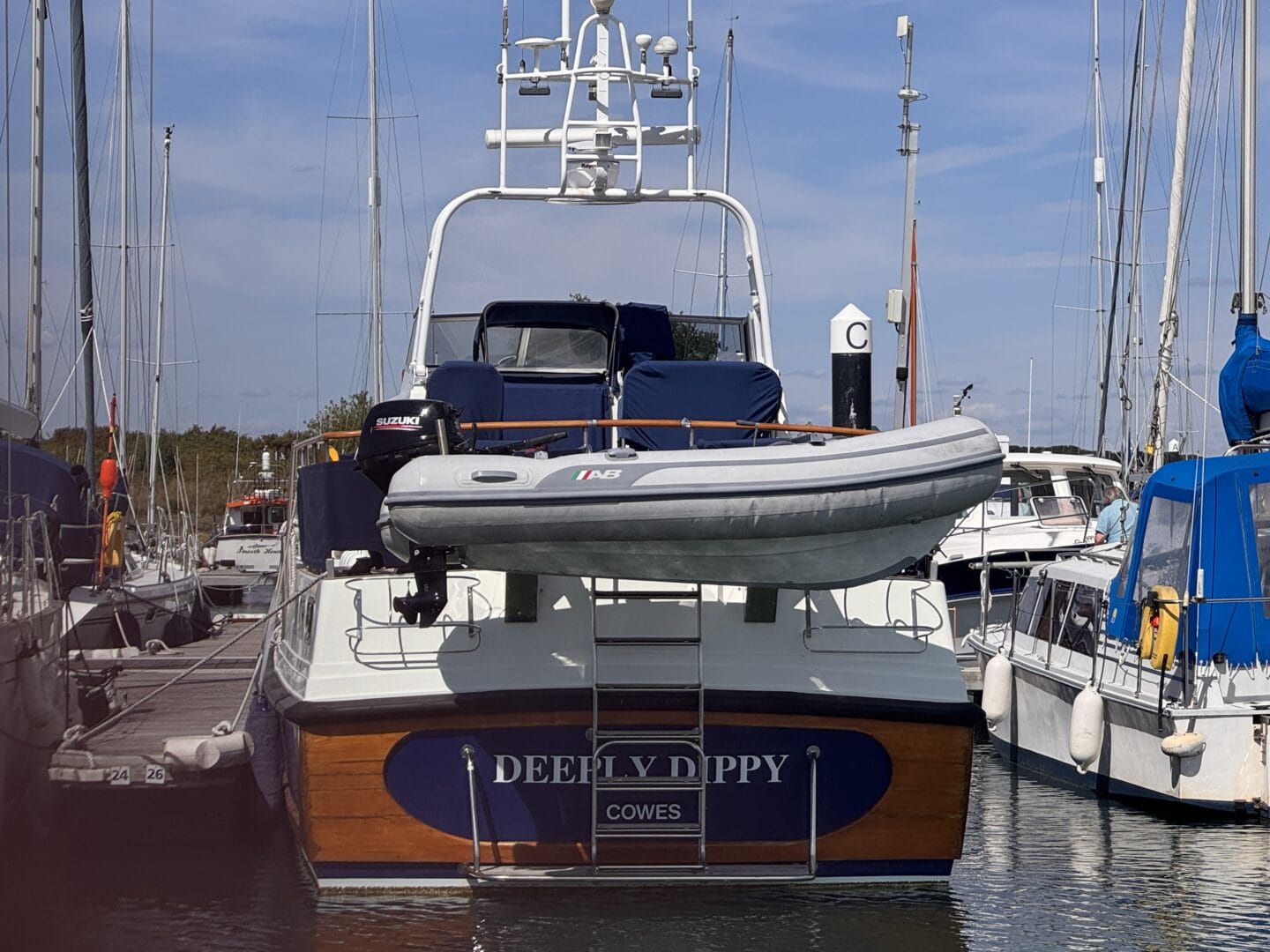

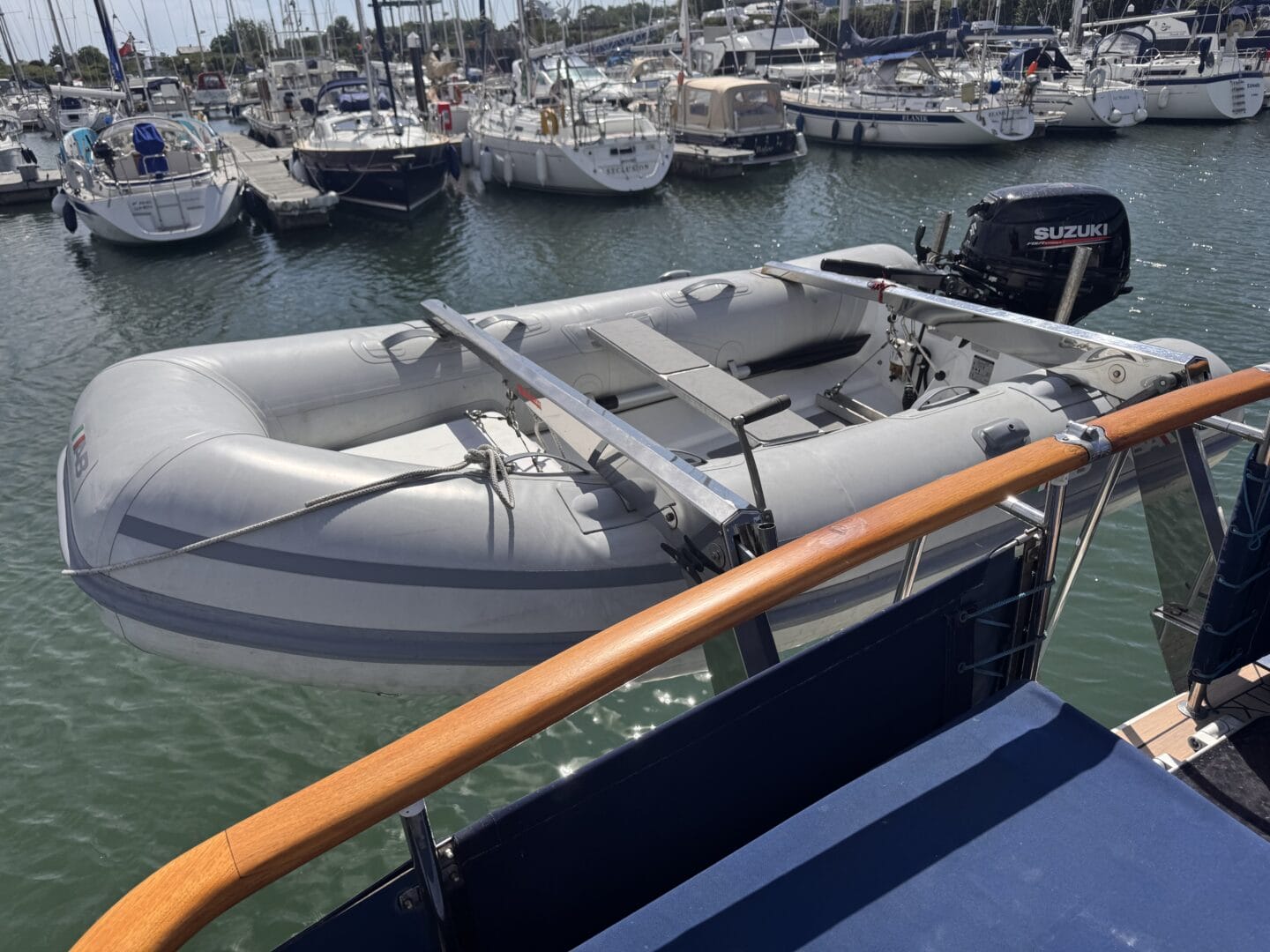

• AB Laminna 9.5 ft rib and Suzuki 15hp outboard (Datatagged) plus anchor and rope.

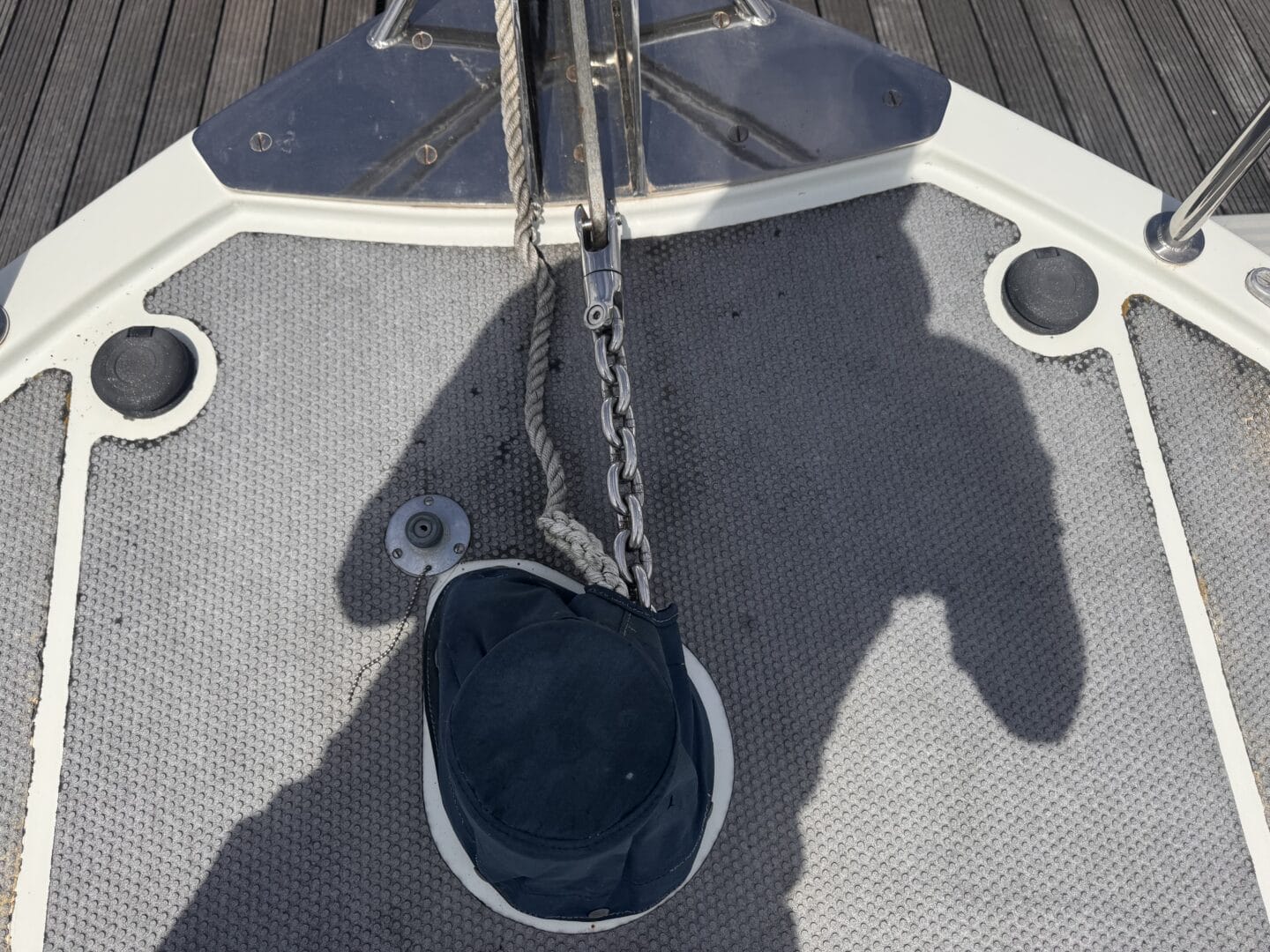

• Delta anchor and 50M stainless steel calibrated chain.
• Delta kedge anchor, galvanised chain and warp.
• Lewmar 1000 electric capstan winch with remote controls.
• Fenders and warps.
• 2 x 55 watt wide angle halogen work lights

Navigational equipment:

• Sestrel compass (at both helm positions).
• Raymarine ST60+ compass (at both helm positions).

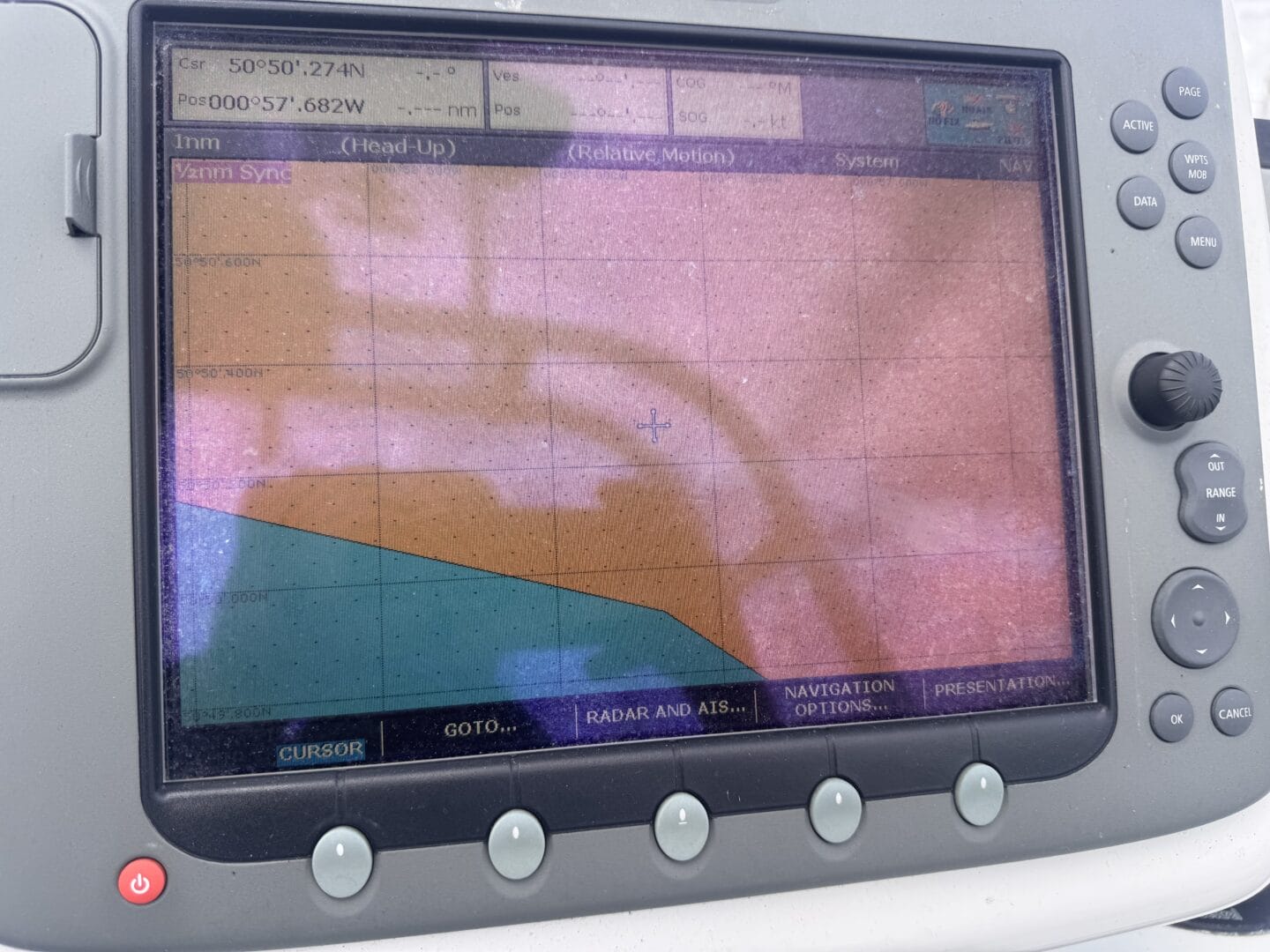

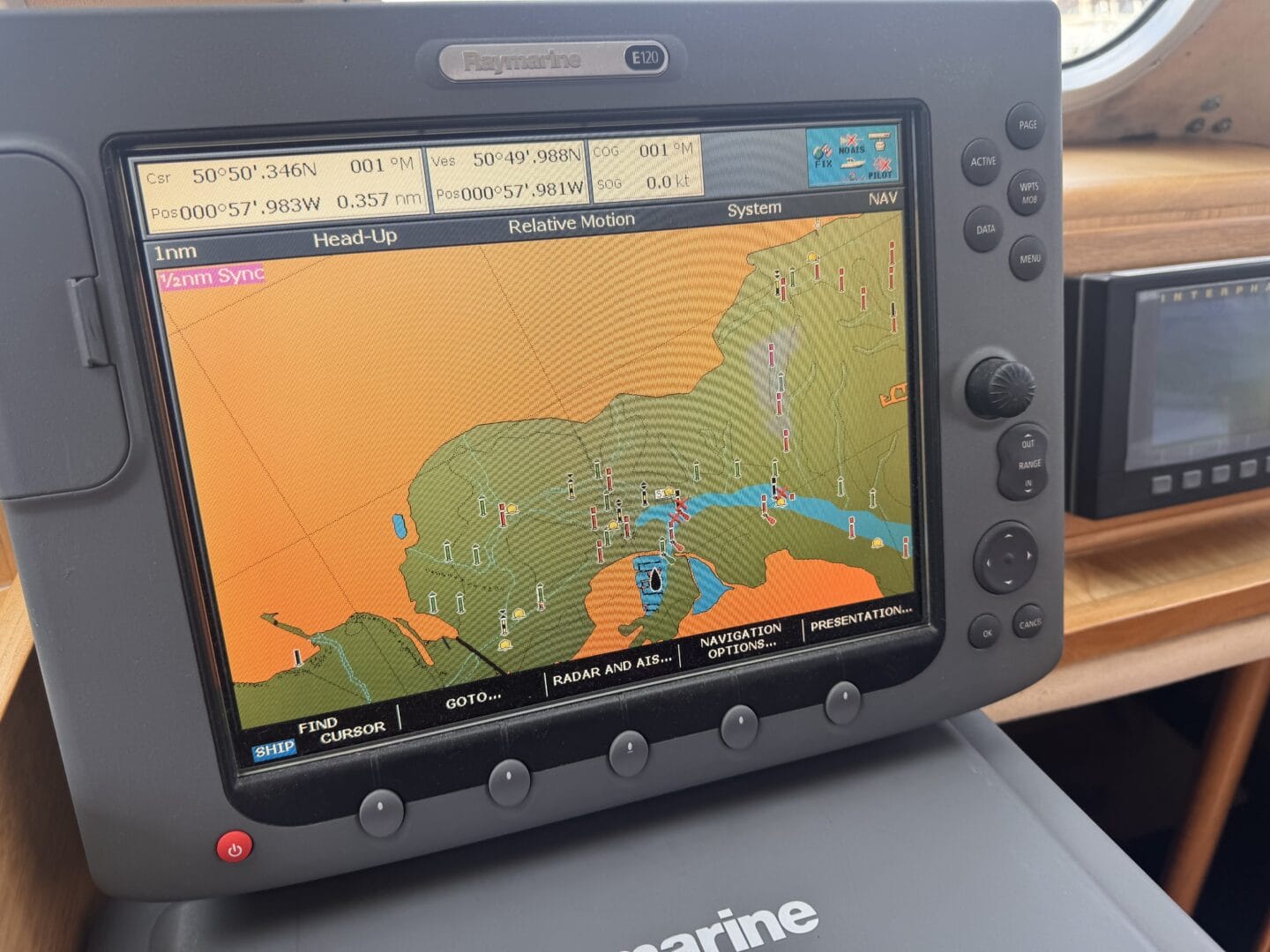

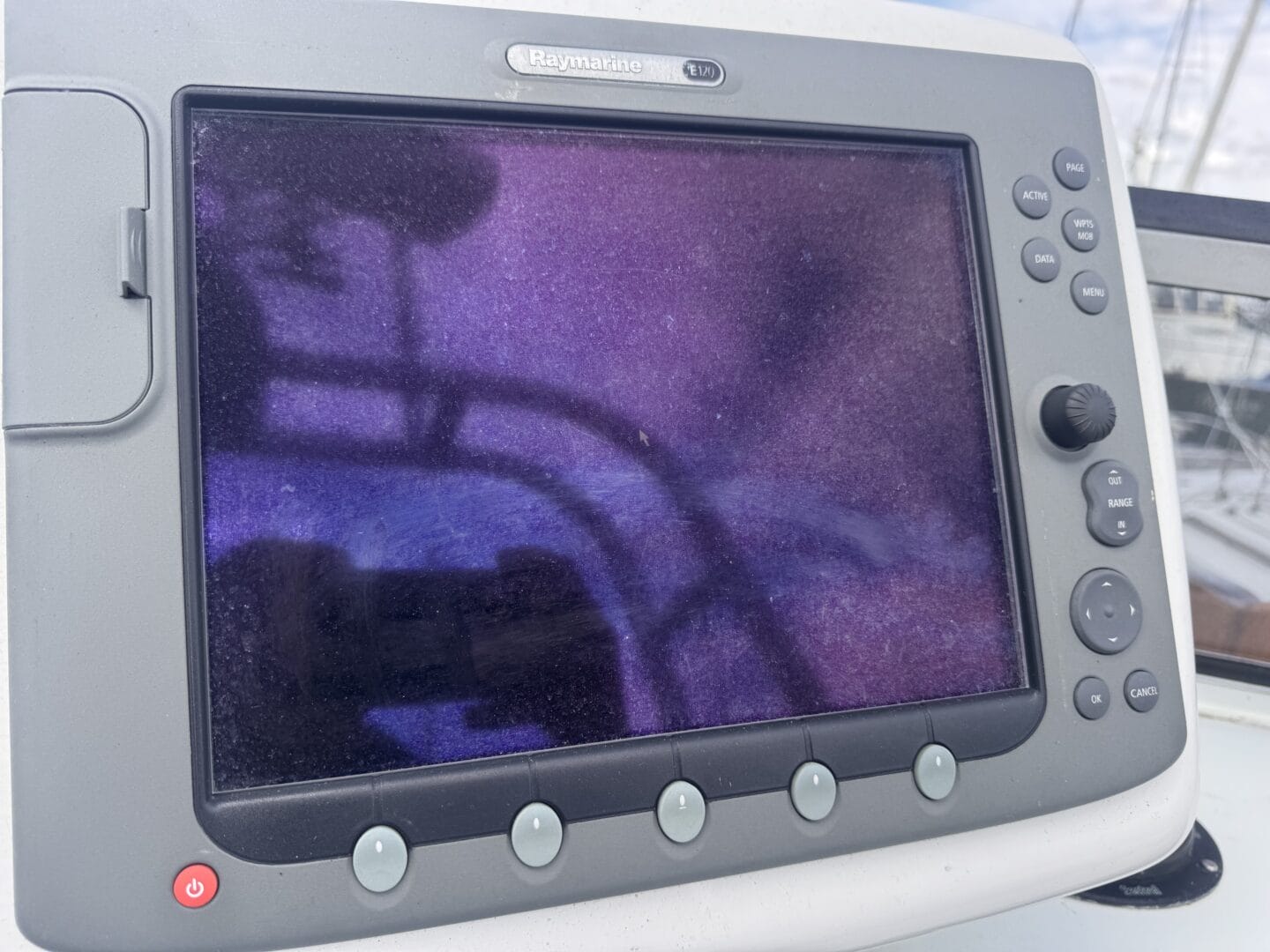

• Raymarine E120 chart plotters x 2 (at both helm positions).

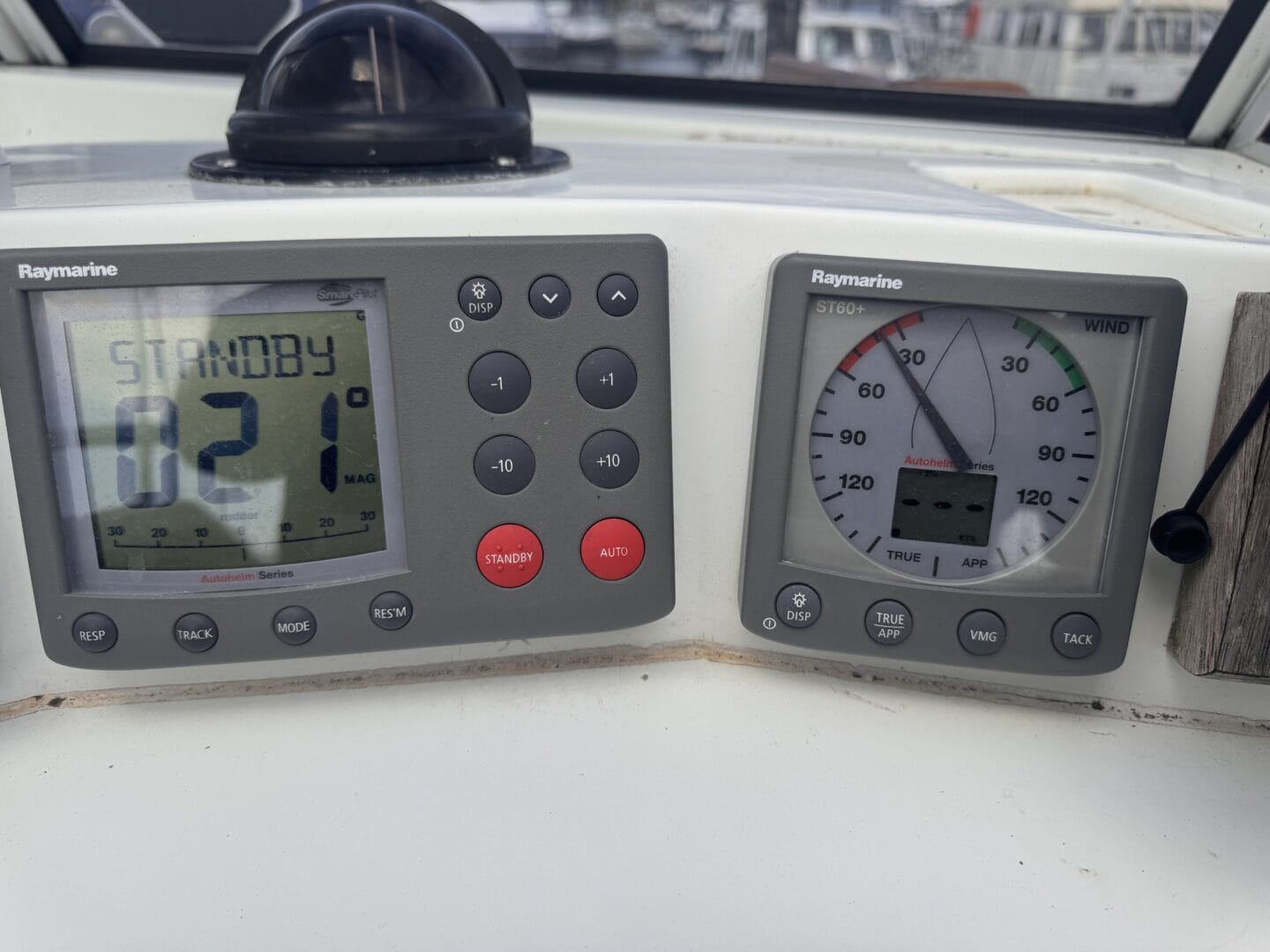

• Raymarine Autohelm autopilot (at both helm positions). Raymarine GyroPlus 2 unit and fluxgate compass. Raymarine ST7002 SmartPilot controller.

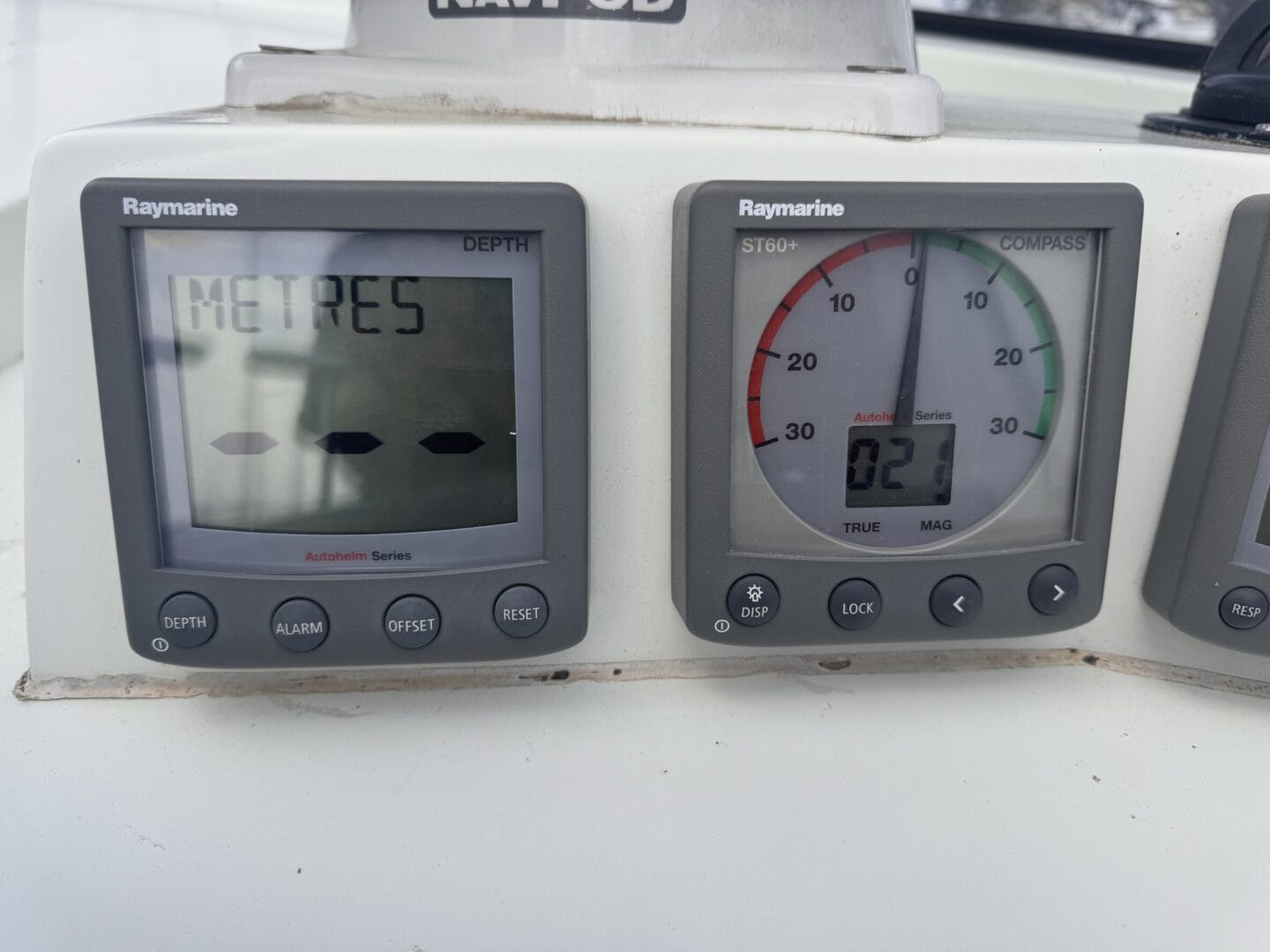

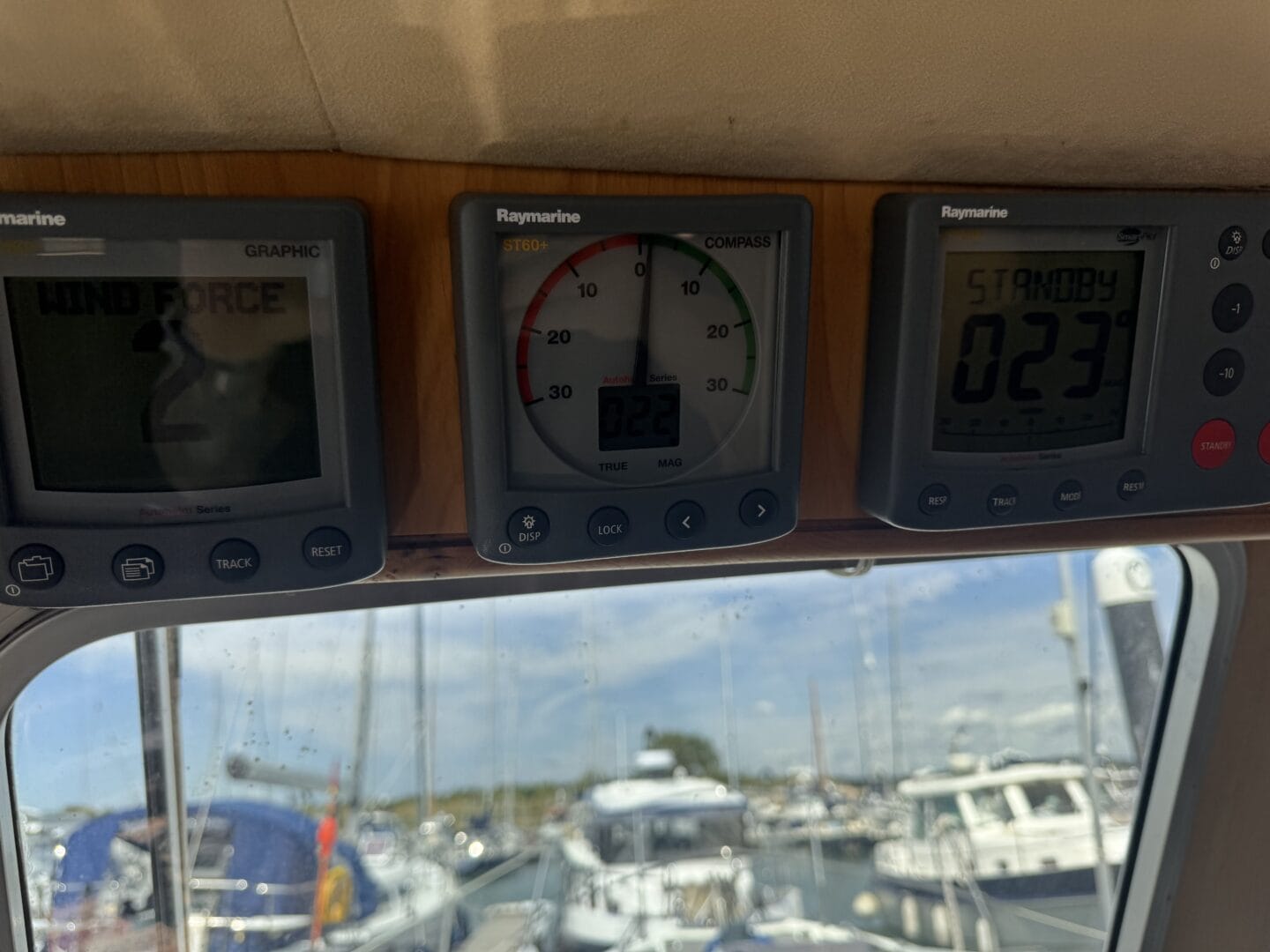

• Raymarine ST60+ wind, depth and log instruments (at both helm positions).
• Raymarine Autohelm ST60+ Graphic Display (inside helm position).
• Raymarine 48” open array radar scanner and pedestal.

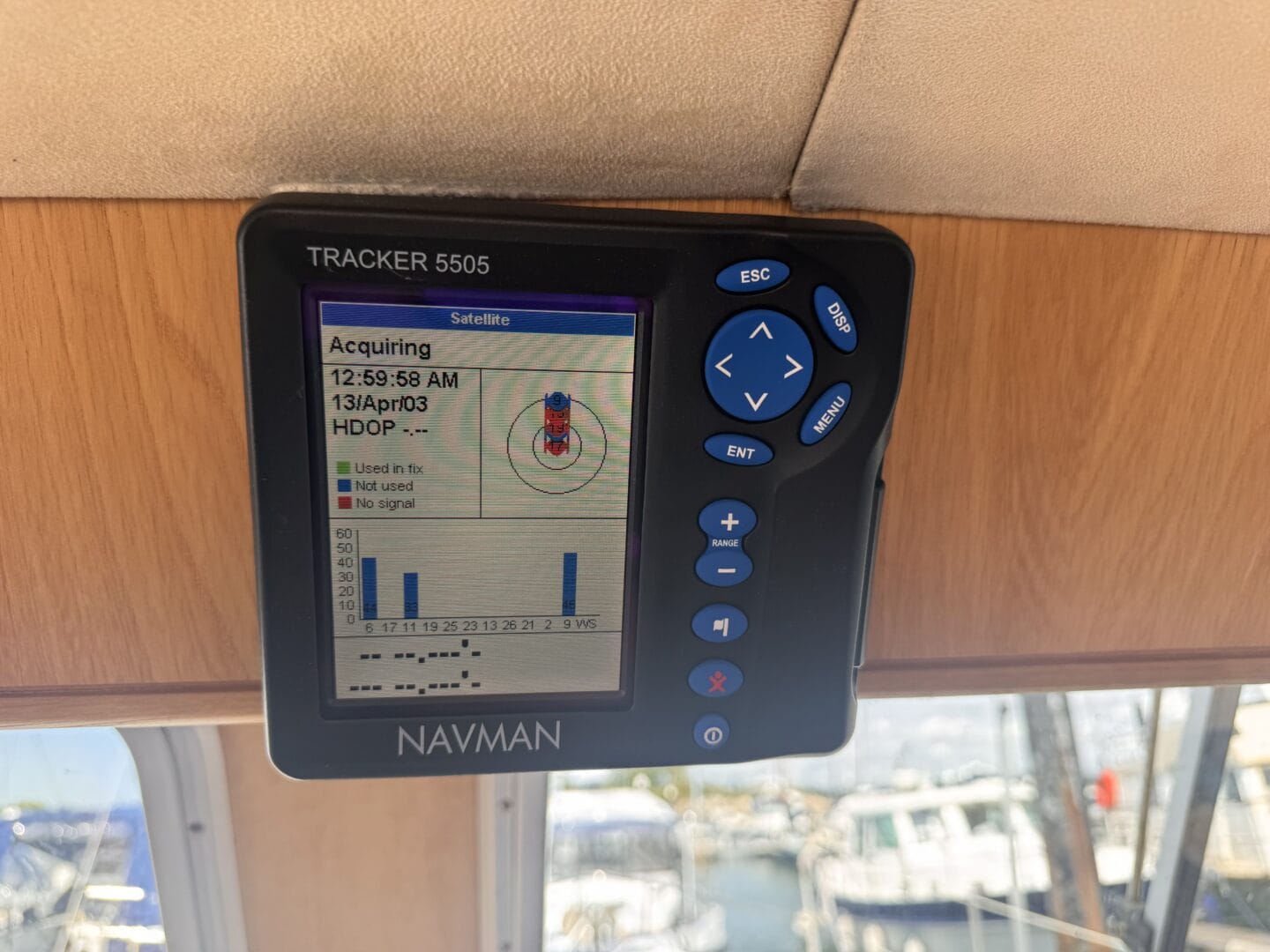

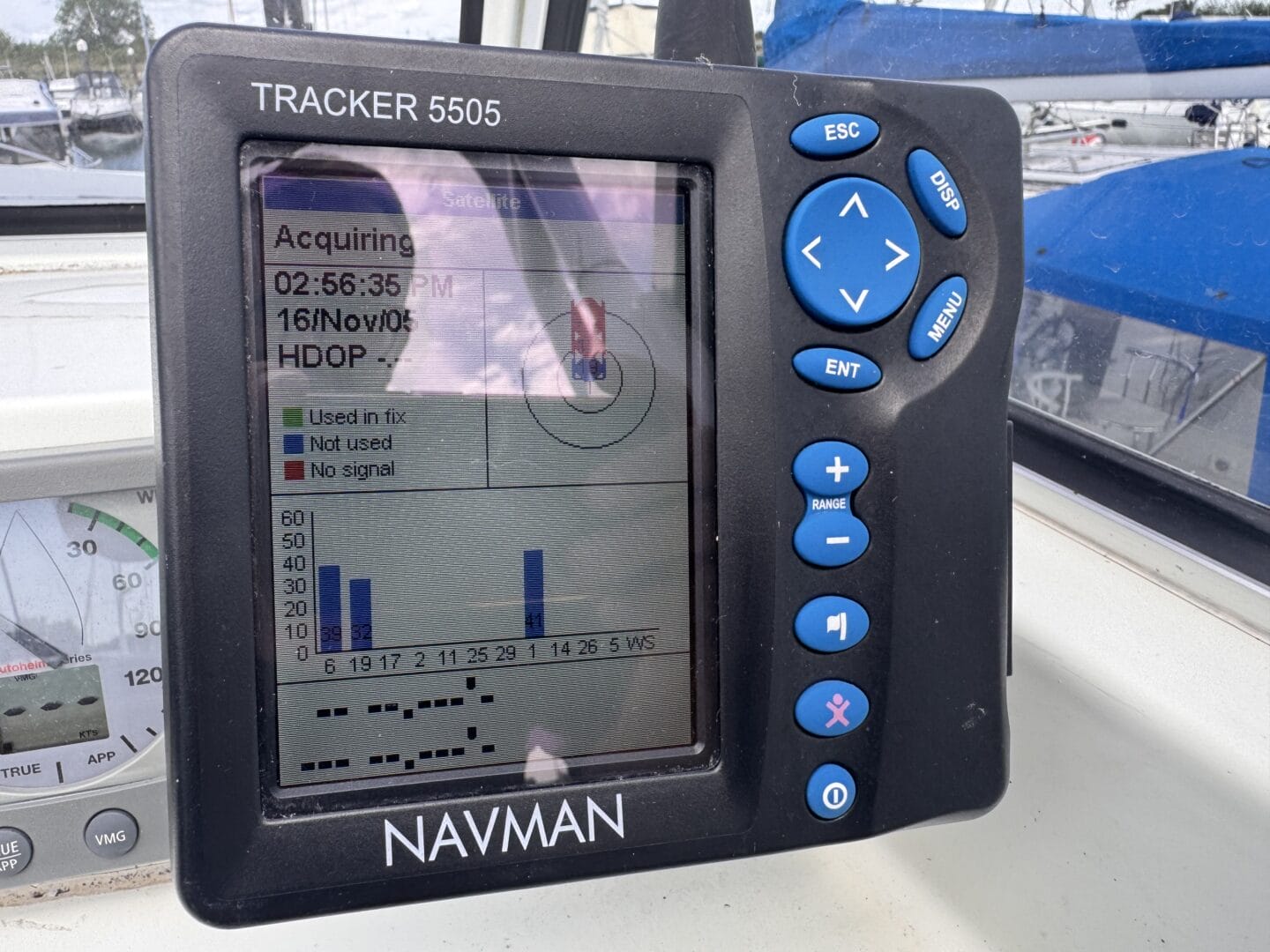

• Navman Tracker 5505i fuel management system (at both helm positions).

Safety Equipment:

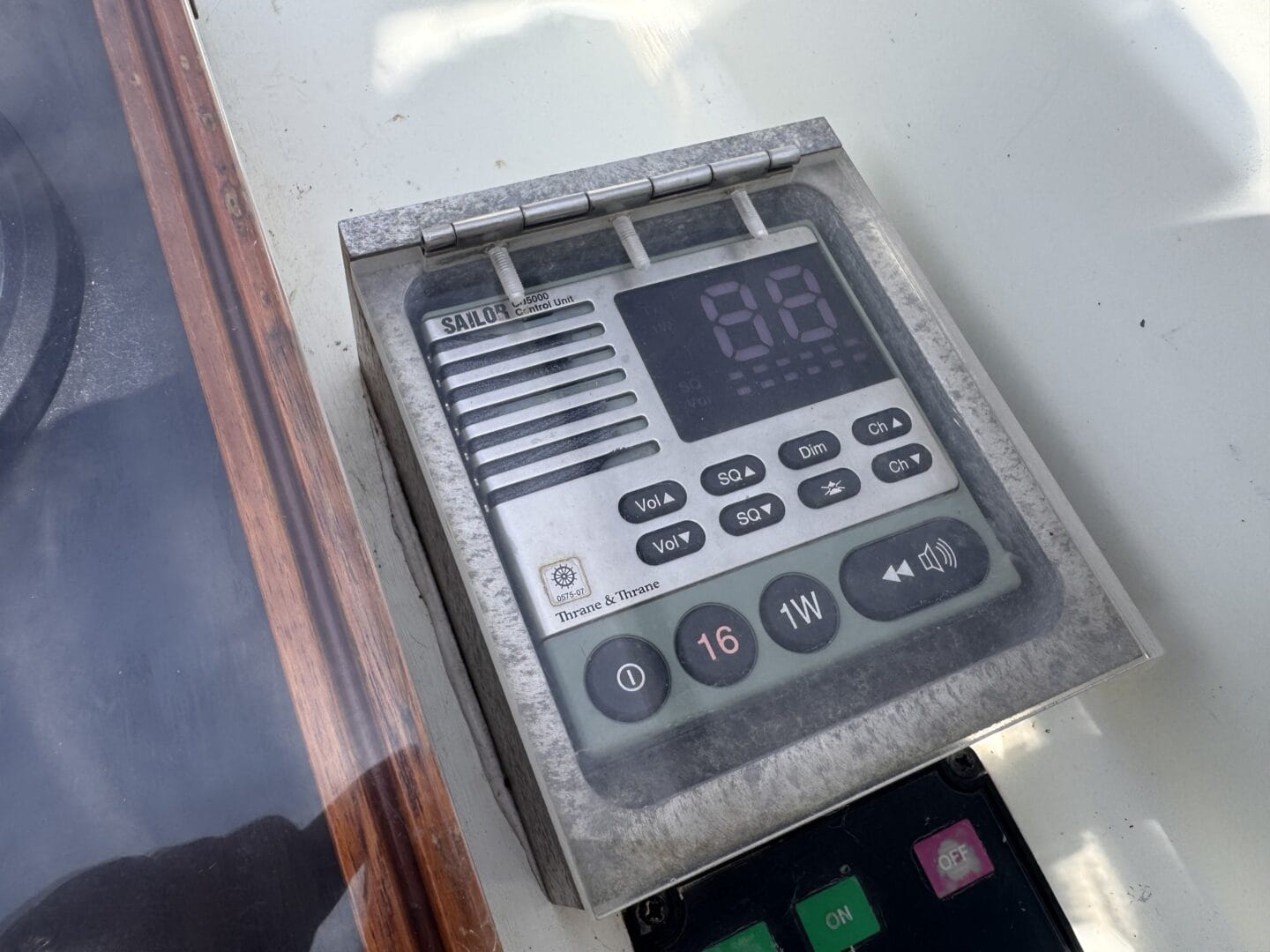

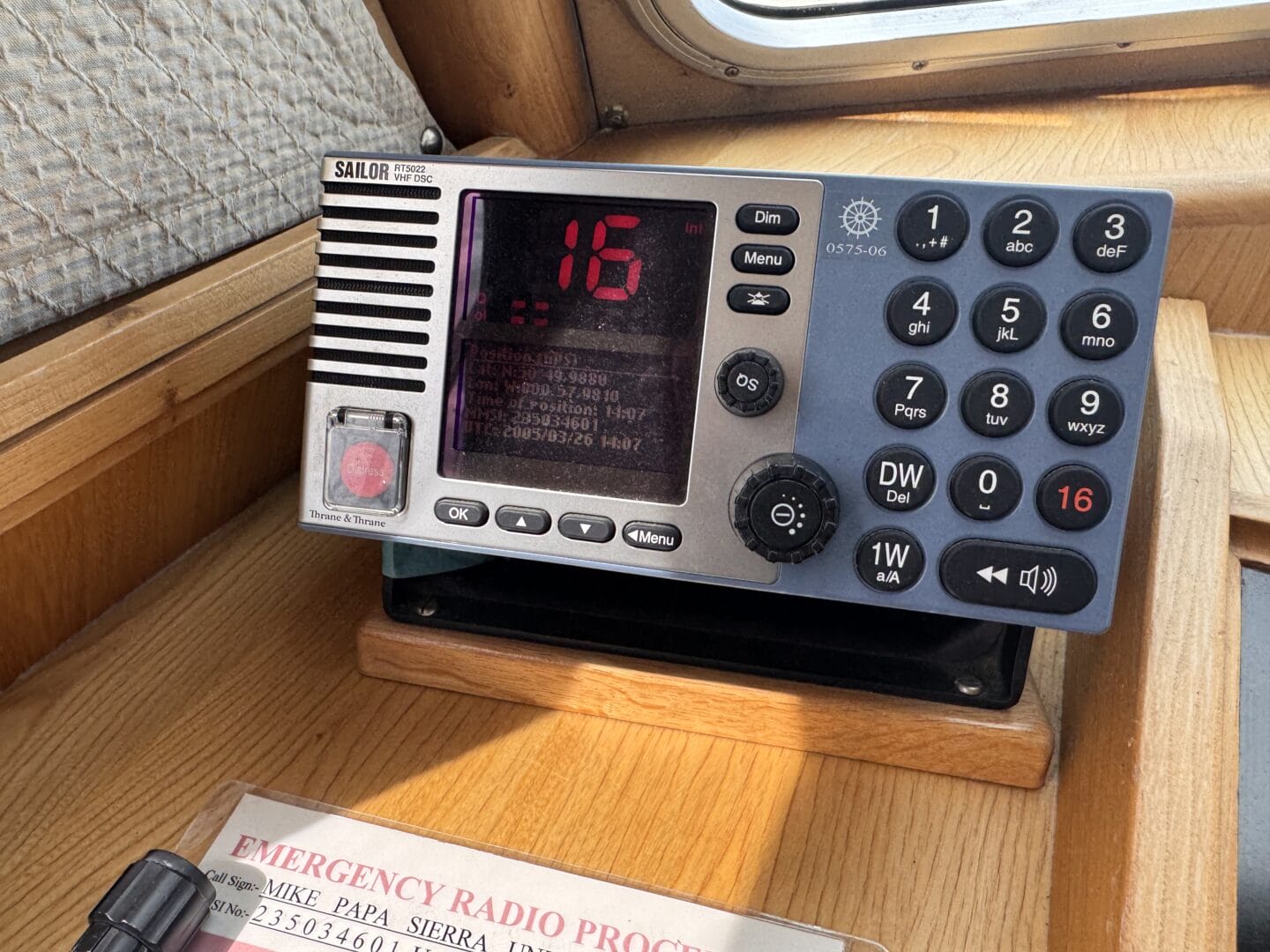

• Sailor RT5022 VHF DSC radio and phone set (also CU500 control unit and telephony at outside helm position).

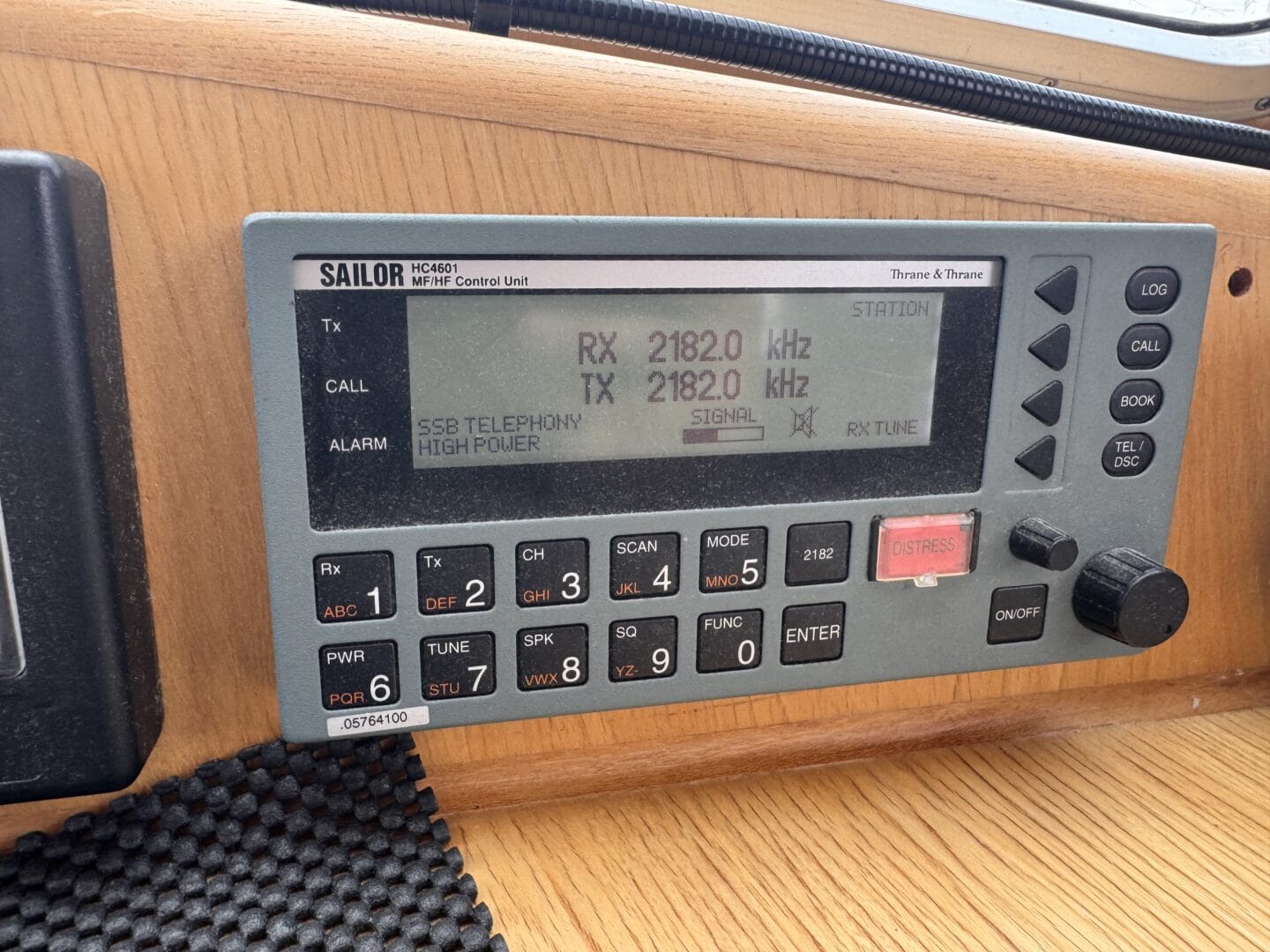

• Sailor system 4500 150W MF/HF control unit and phone set.
• EPIRB
• AIS Receiver.
• Sea-me radar target enhancer.
• Stainless steel emergency tiller.
• 2 safety horseshoes.
• 4 handheld fire extinguishers (one in every cabin area).
• 1 fire blanket.
• Offshore distress flares.
• Variety of emergency tapered wooden plugs.

Underwater Equipment:

• Airmar forward looking transducer.
• Airmar speed/temperature transducer.
• Airmar multisensor.
• Airmar depth transducer.

Antennae:

• 4M VTronix VHF antenna.
• VTronix AA20active receive aerial.
• Euromarine VHF transceiver.
• MF/HF transceiver
• Glomex TV antenna.
• MLR GPS antenna
• Raymarine GPS
• Navman GPS

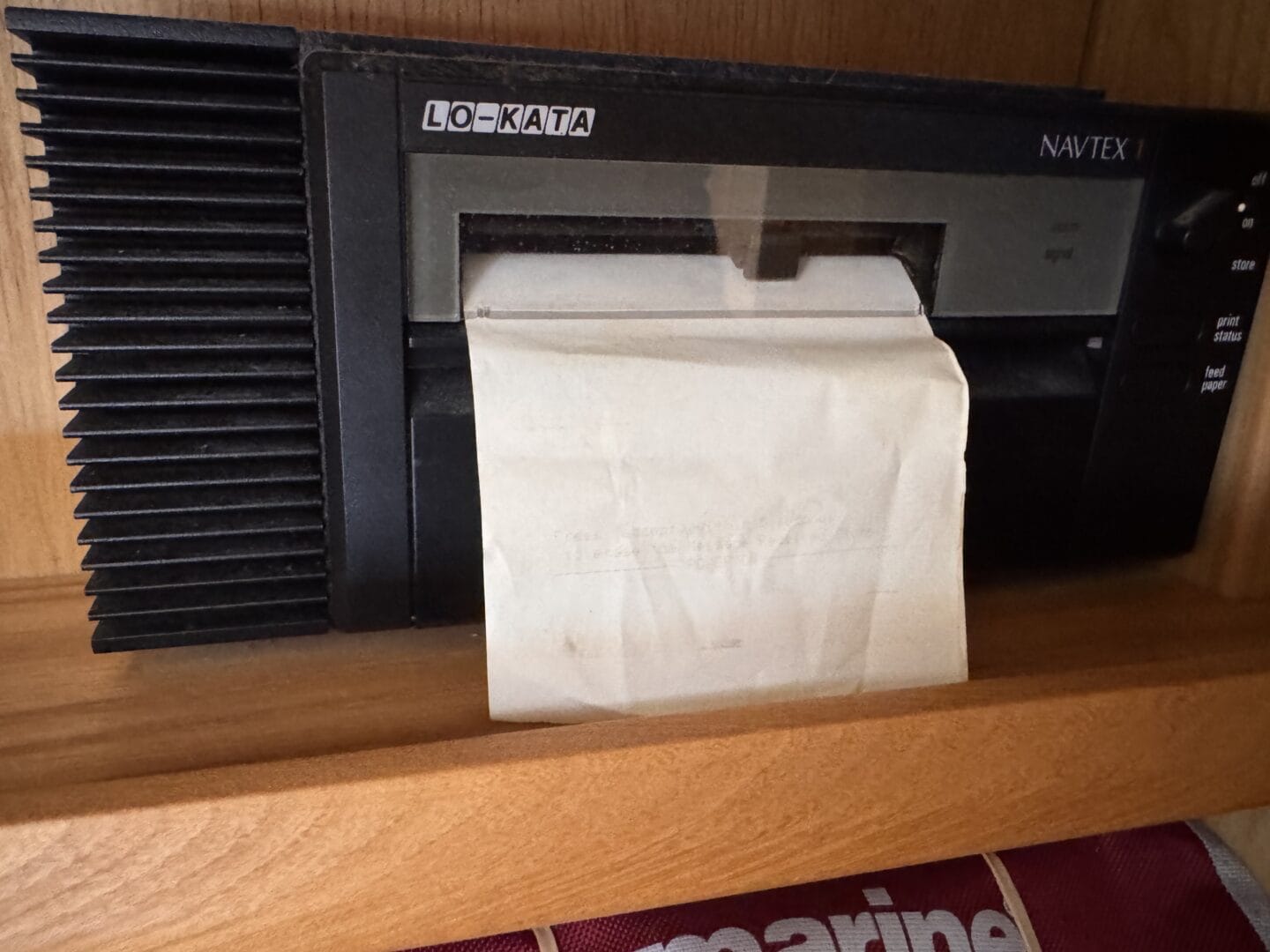

• Navtex
• DSC/AIS receiver.
• Raymarine wind vane

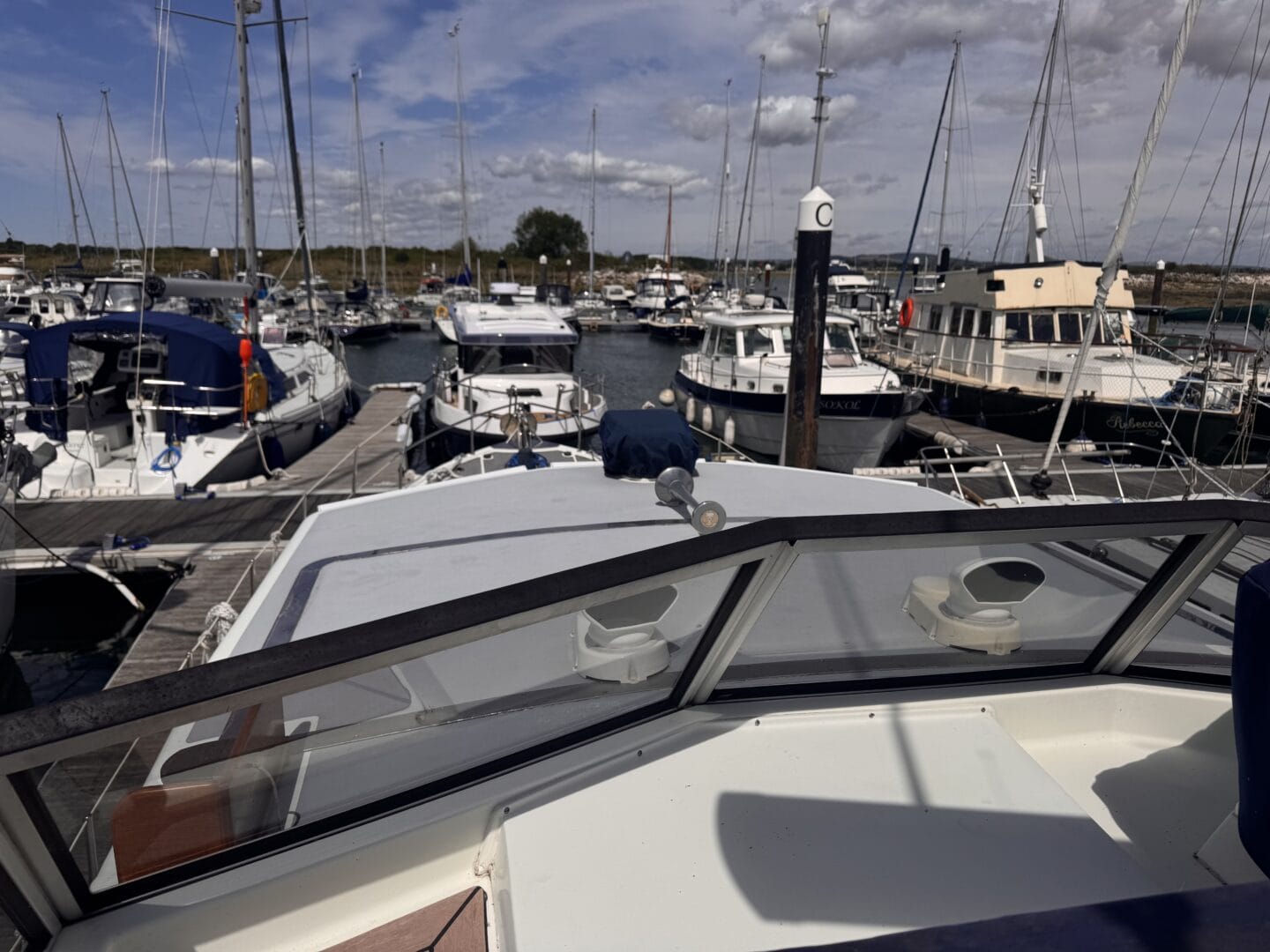

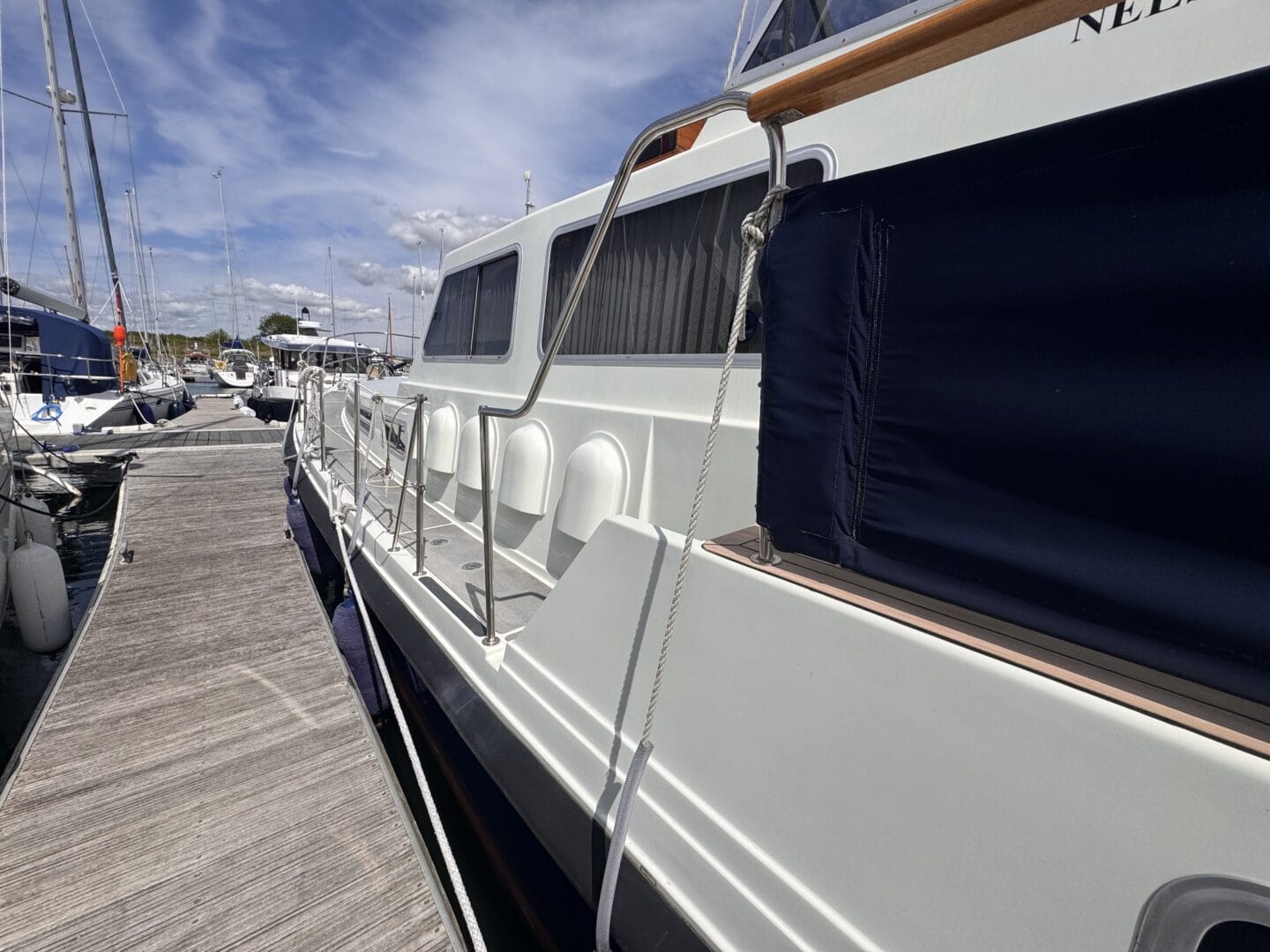

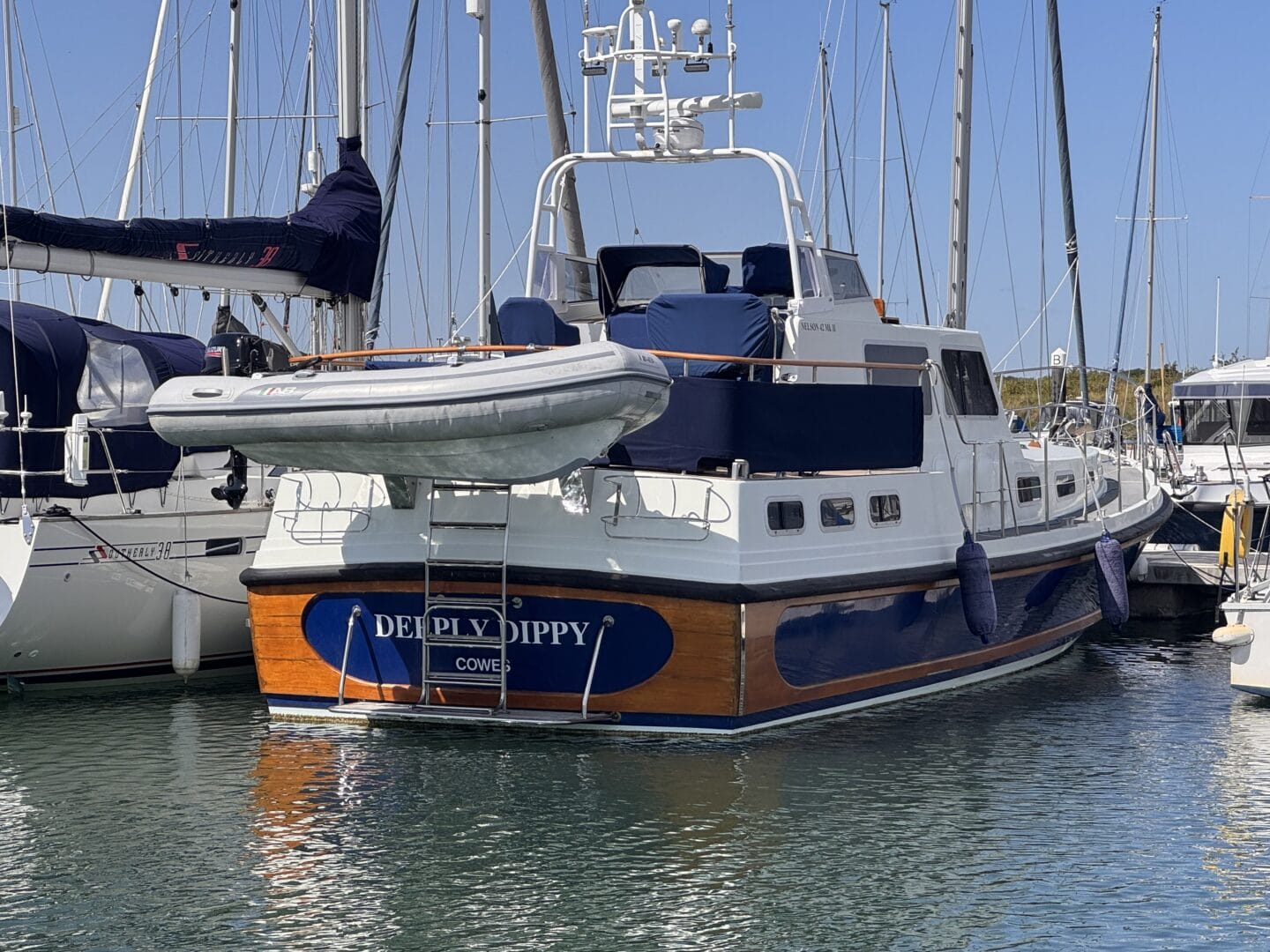

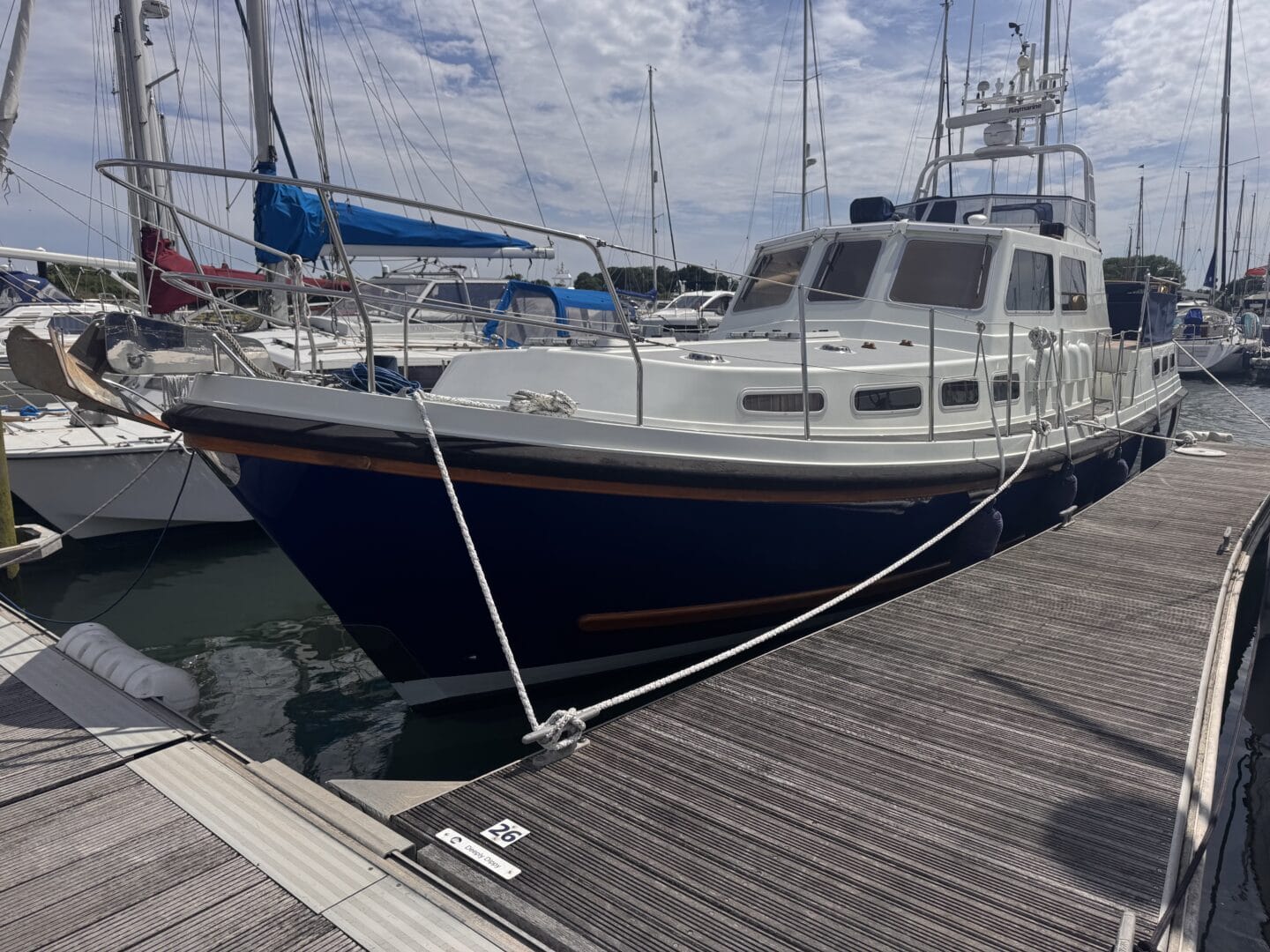

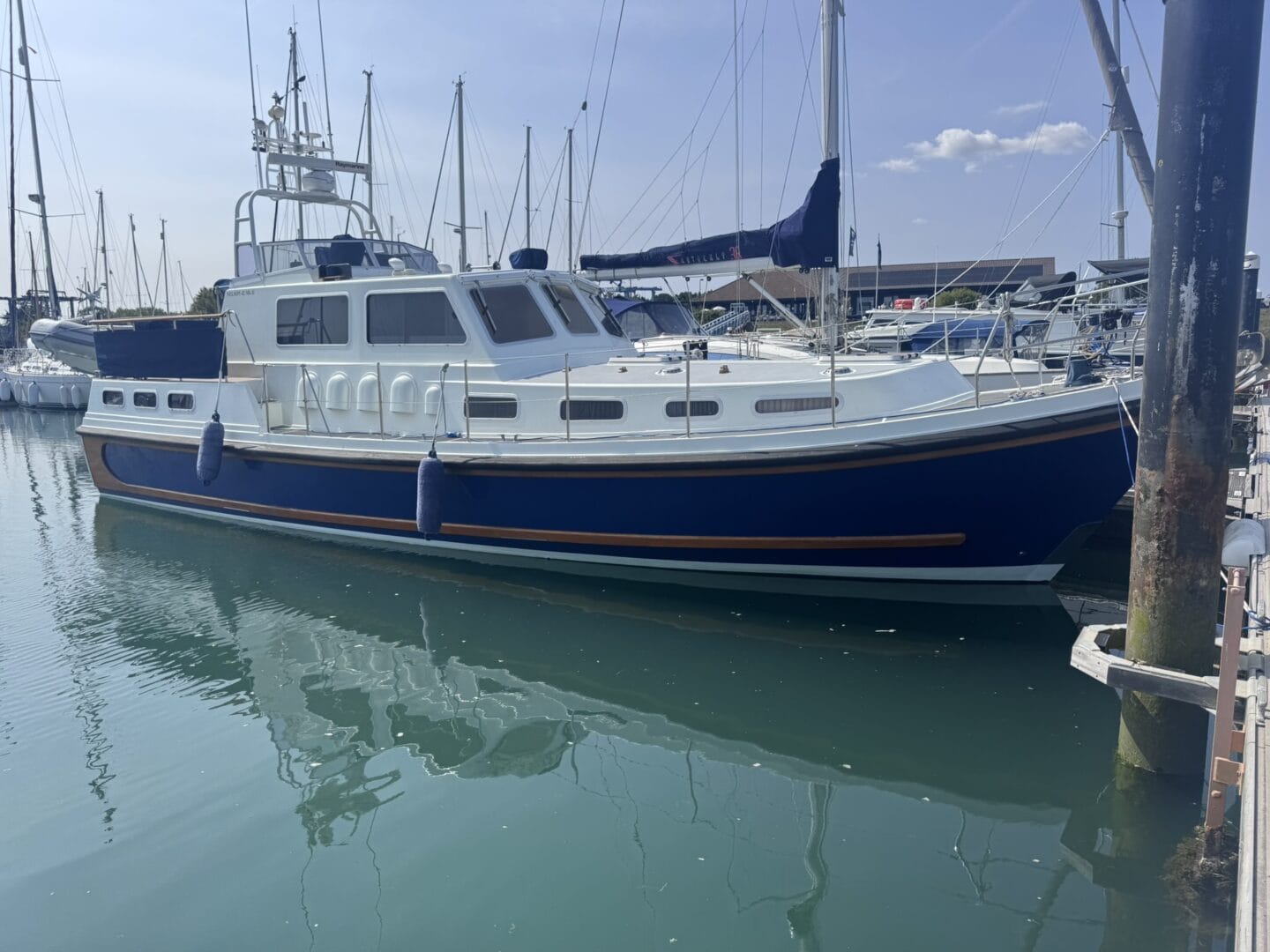

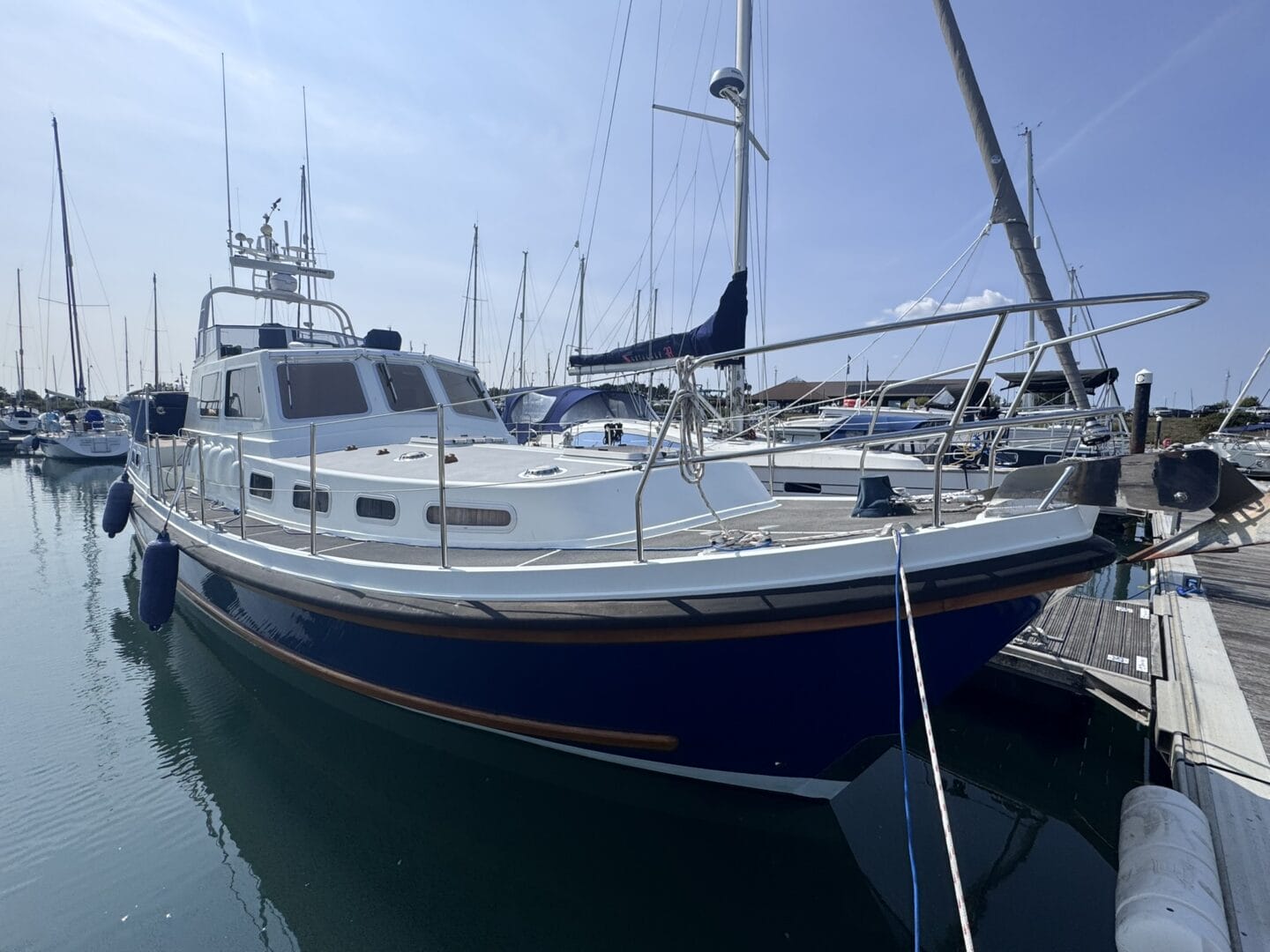

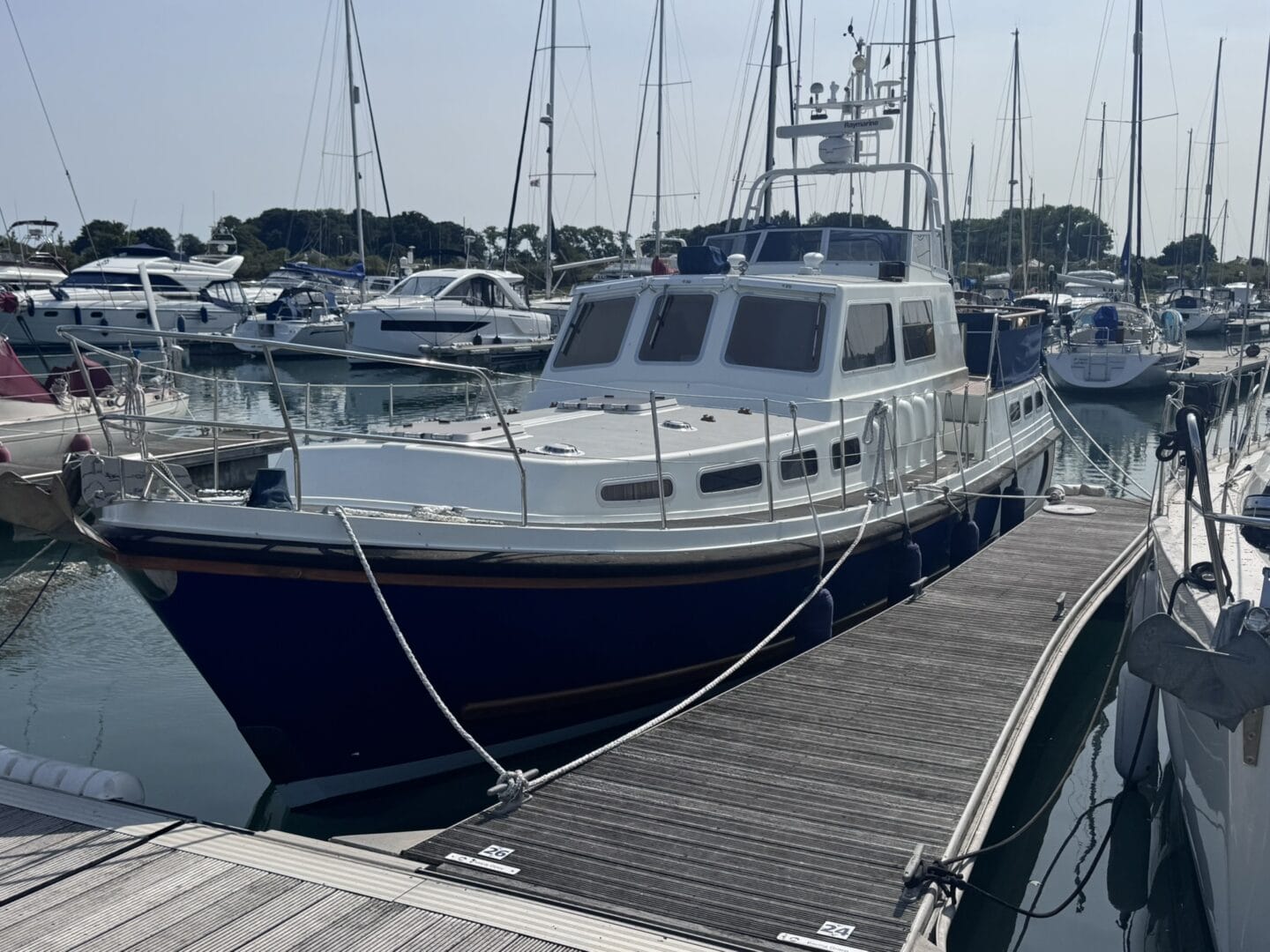

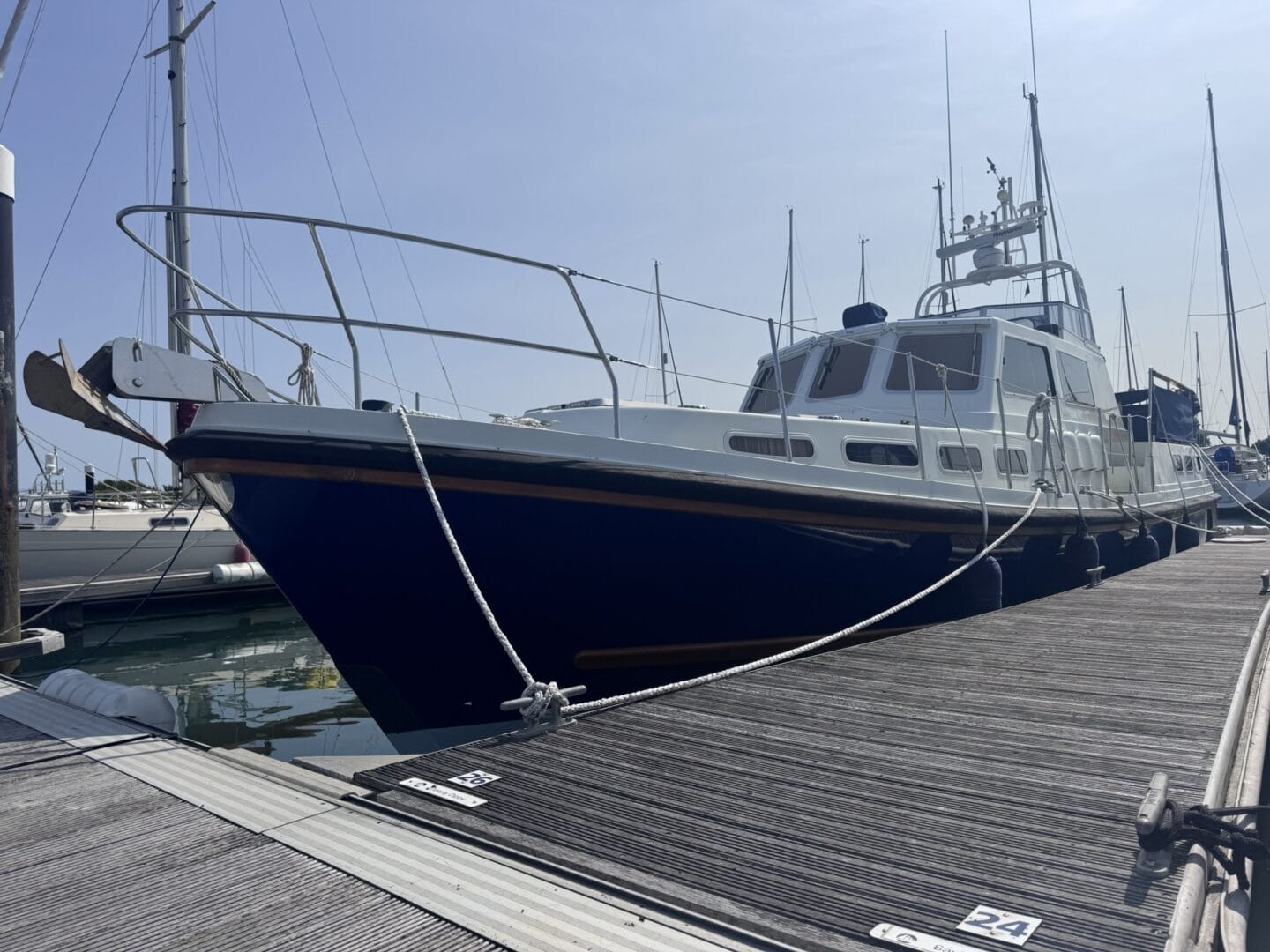

This Nelson 42 MK II is currently on her berth in the water here at Northney Marina and is available for viewings. Please do not hesitate to get in touch to arrange your viewing and with any questions you may have.
